Direction indicator lampsDirection indicator lamps – circuit diagram

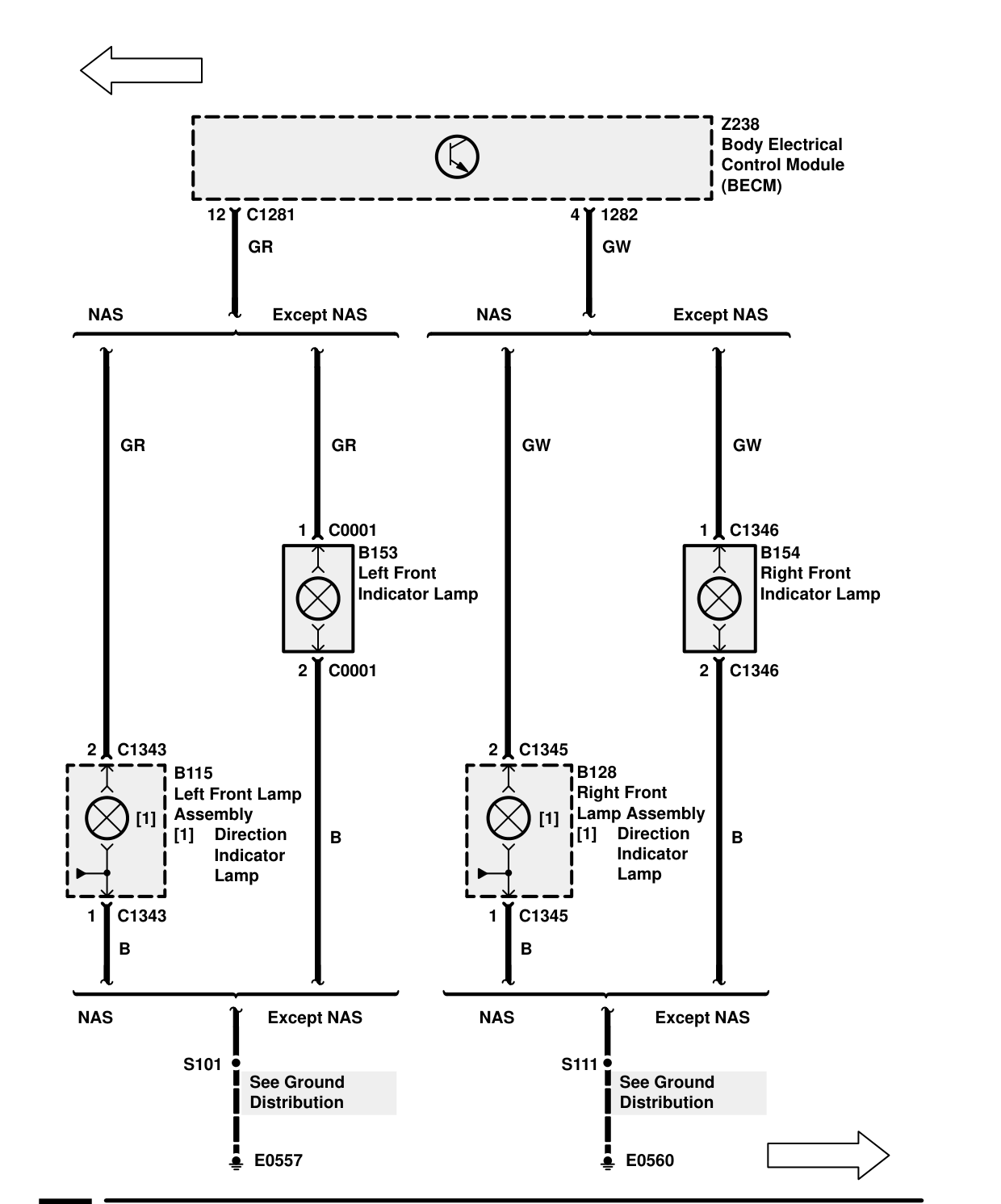

DIRECTION INDICATOR LAMPS – CIRCUIT DIAGRAM
Components on this page
- B153 Left Front Indicator Lamp
- B154 Right Front Indicator Lamp
- Z238 Body Electrical Control Module (BECM)
