Fuse detailsFuse details – circuit diagram rev: 08/99

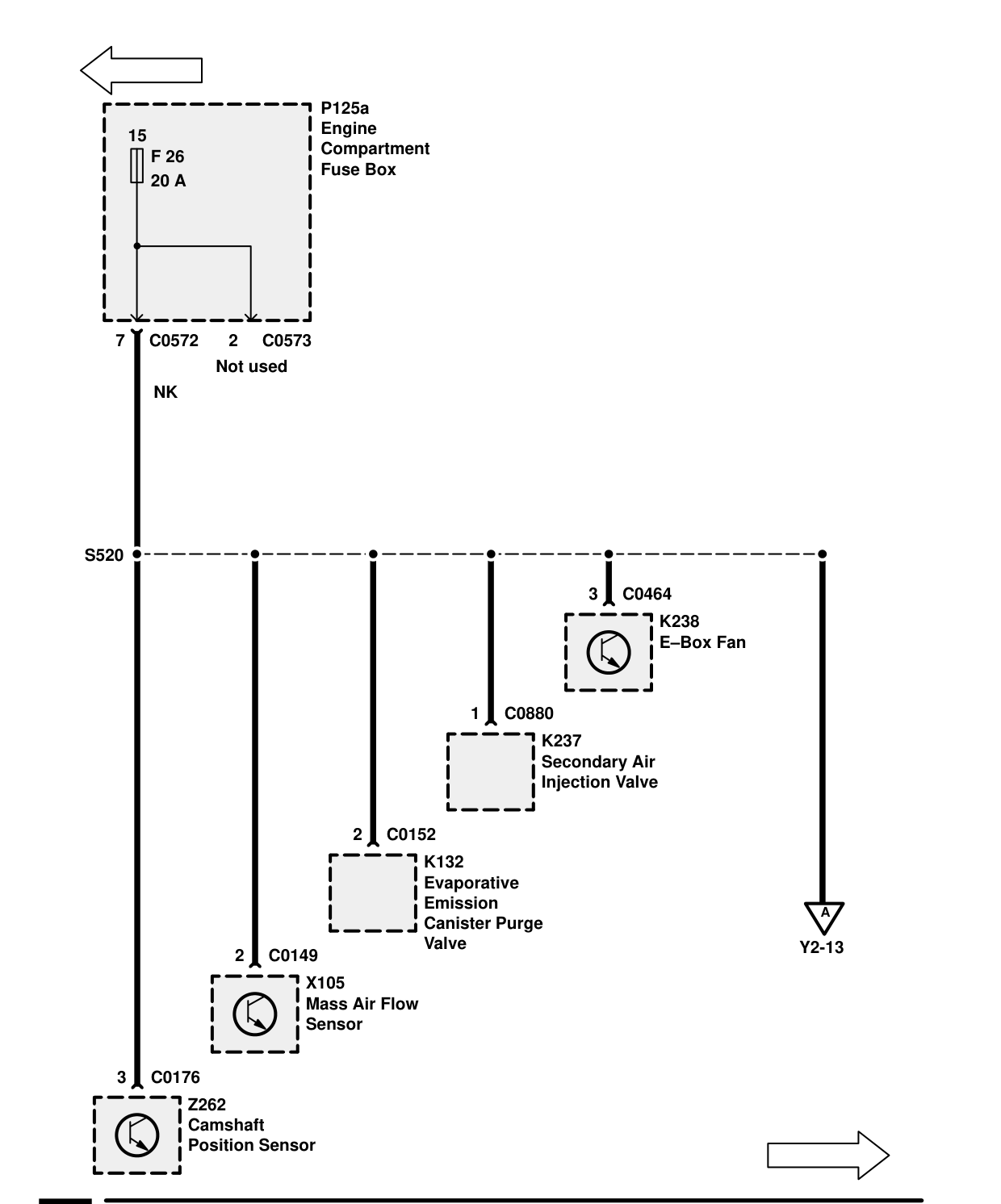

FUSE DETAILS – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- K132 Evaporative Emission Canister Purge Valve
- K237 Secondary Air Injection Valve
- K238 E-Box Fan
- X105 Mass Air Flow Sensor
- Z262 Camshaft Position Sensor
