Fuse details – circuit diagram rev: 11/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 11/99 › Fuse details – circuit diagram rev: 11/99
Fuse detailsFuse details – circuit diagram rev: 11/99

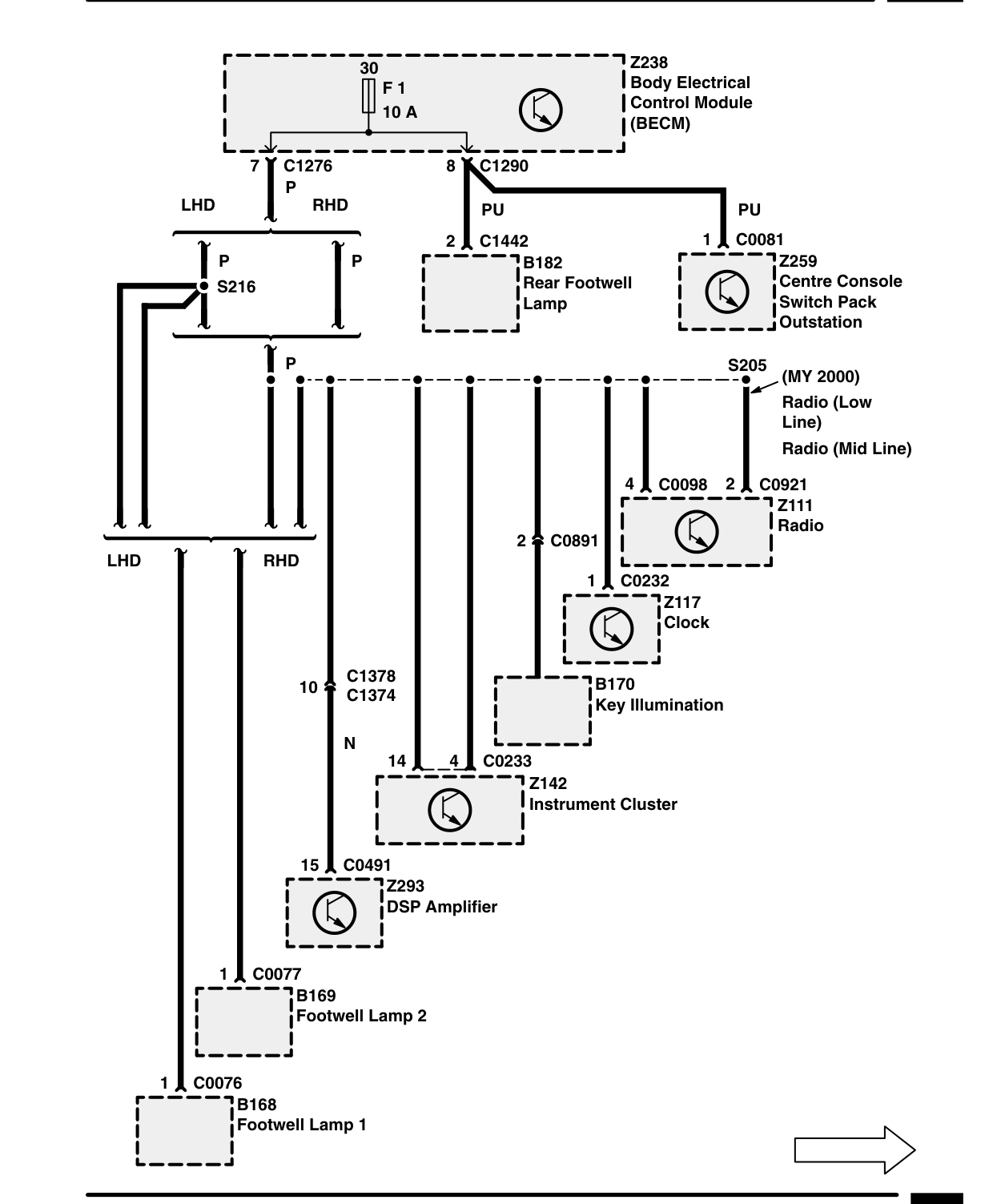

FUSE DETAILS – CIRCUIT DIAGRAM REV: 11/99
Components on this page
- B168 Footwell Lamp 1
- B169 Footwell Lamp 2
- B170 Key Illumination
- B182 Rear Footwell Lamp
- Z117 Clock
- Z238 Body Electrical Control Module (BECM)
- Z259 Centre Console Switch Pack Outstation
- Z293 DSP Amplifier
