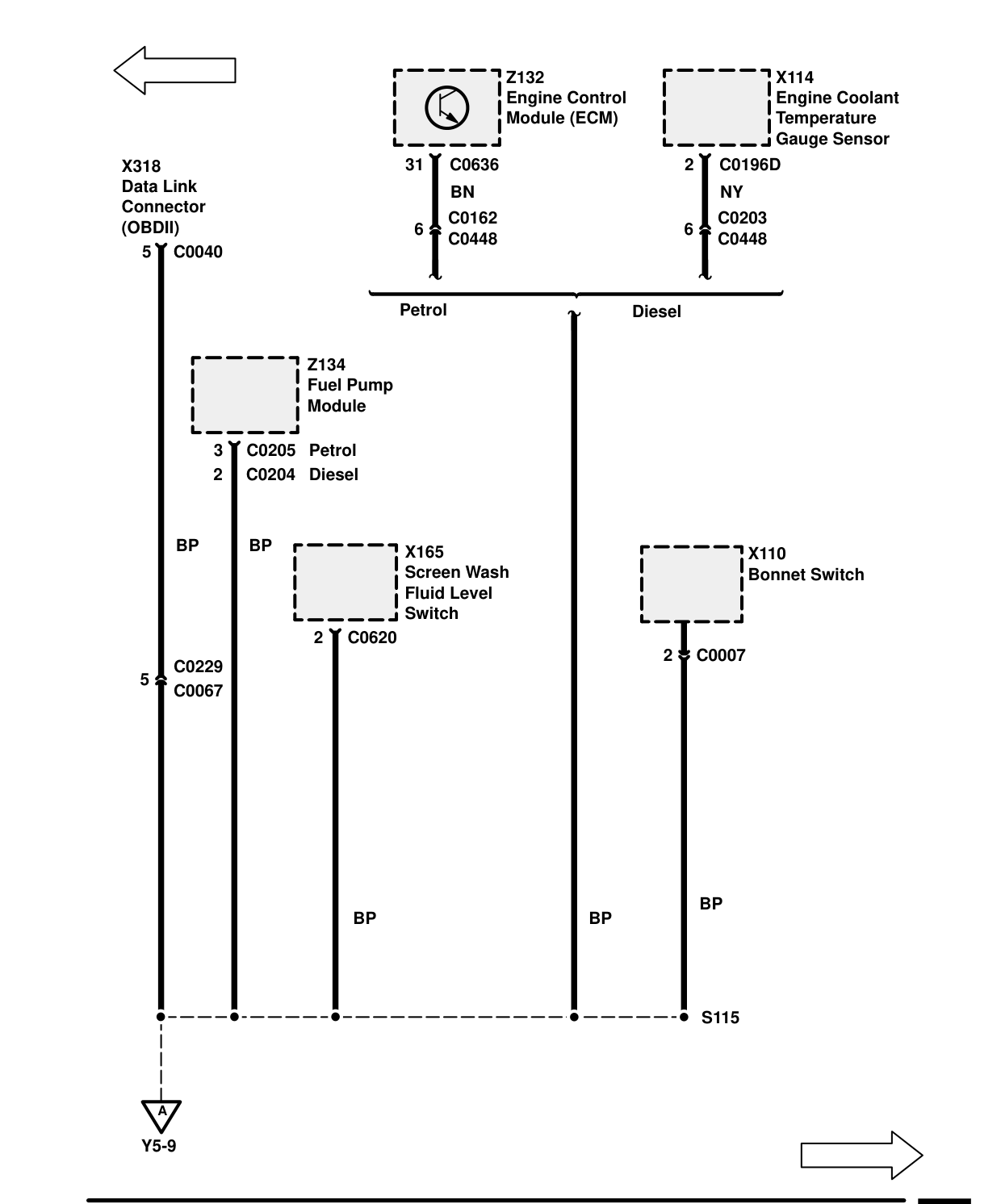

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- X110 Bonnet Switch
- X114 Engine Coolant Temperature Gauge Sensor
- X165 Screen Wash Fluid Level Switch
- X318 Data Link Connector (OBDII)
- Z132 Engine Control Module (ECM)
- Z134 Fuel Pump Module
