Ground distribution – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Ground distribution – circuit diagram rev: 08/99
‹ Prev Ground distribution – circuit diagram rev: 11/99Next › Ground distribution – circuit diagram rev: 08/99
Ground distributionGround distribution – circuit diagram rev: 08/99

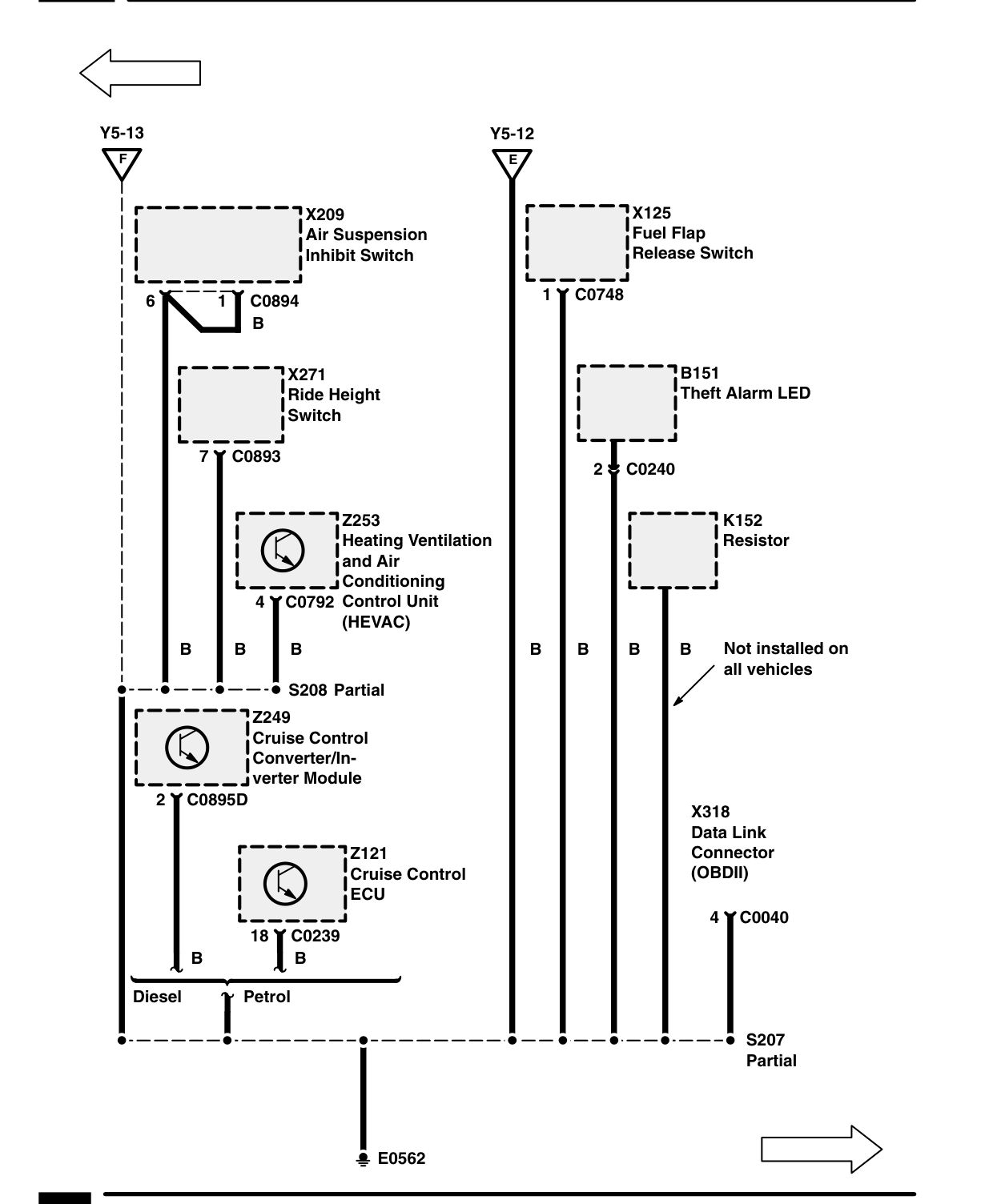

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- B151 Theft Alarm LED
- K152 Resistor
- S208 Partial
- X125 Fuel Flap Release Switch
- X209 Air Suspension Inhibit Switch
- X271 Ride Height Switch
- X318 Data Link Connector (OBDII)
- Z121 Cruise Control ECU
- Z249 Cruise Control Converter/Inverter Module C0895D 2
