Ground distribution – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Ground distribution – circuit diagram rev: 08/99
‹ Prev Ground distribution – circuit diagram rev: 08/99Next › Ground distribution – circuit diagram rev: 11/99
Ground distributionGround distribution – circuit diagram rev: 08/99

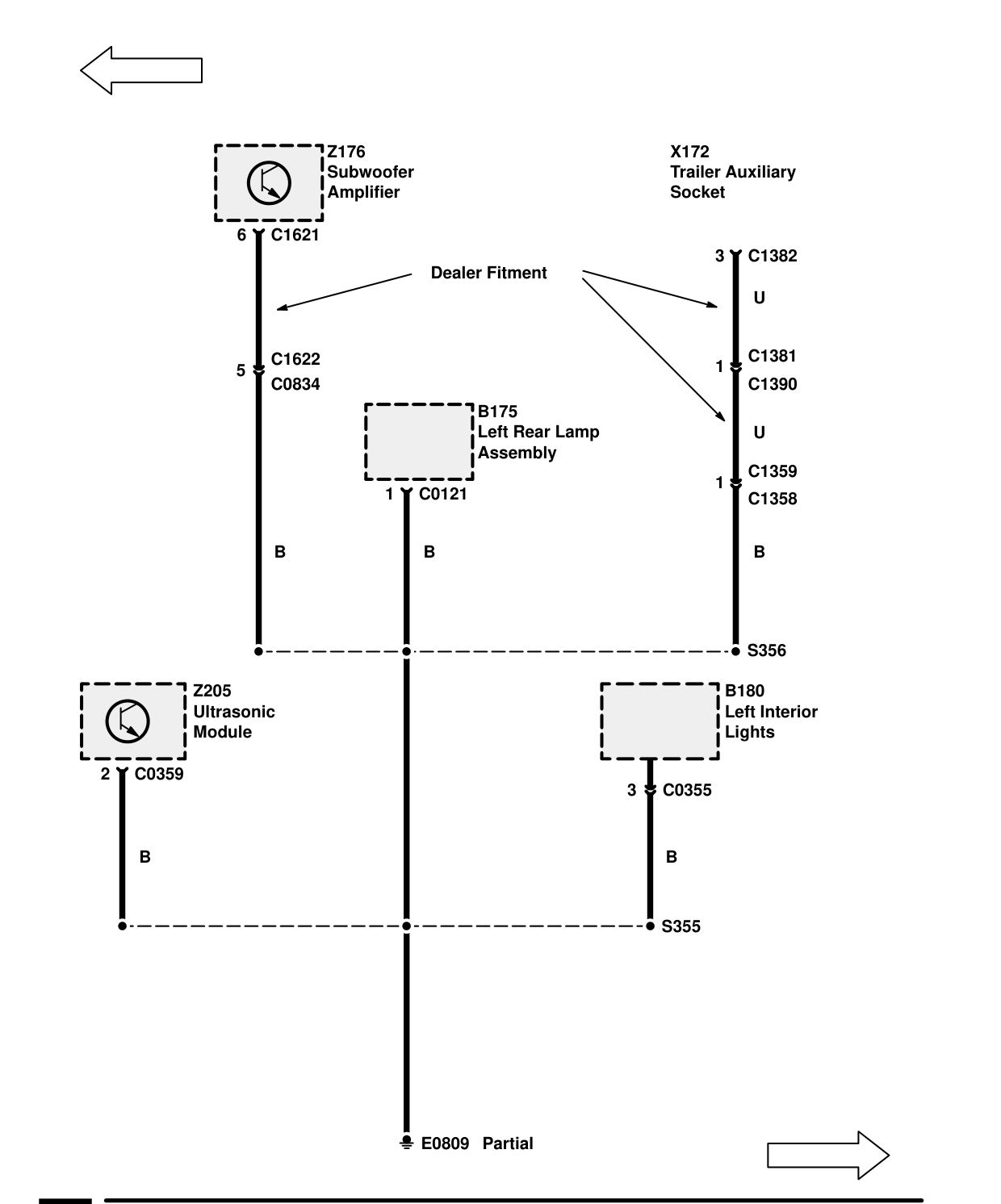

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- B175 Left Rear Lamp Assembly
- B180 Left Interior Lights
- E0809 Partial
- X172 Trailer Auxiliary Socket
- Z176 Subwoofer Amplifier
- Z205 Ultrasonic Module
