Ground distribution – circuit diagram rev: 11/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 11/99 › Ground distribution – circuit diagram rev: 11/99
‹ Prev Ground distribution – circuit diagram rev: 11/99Next › Ground distribution – circuit diagram rev: 08/99
Ground distributionGround distribution – circuit diagram rev: 11/99

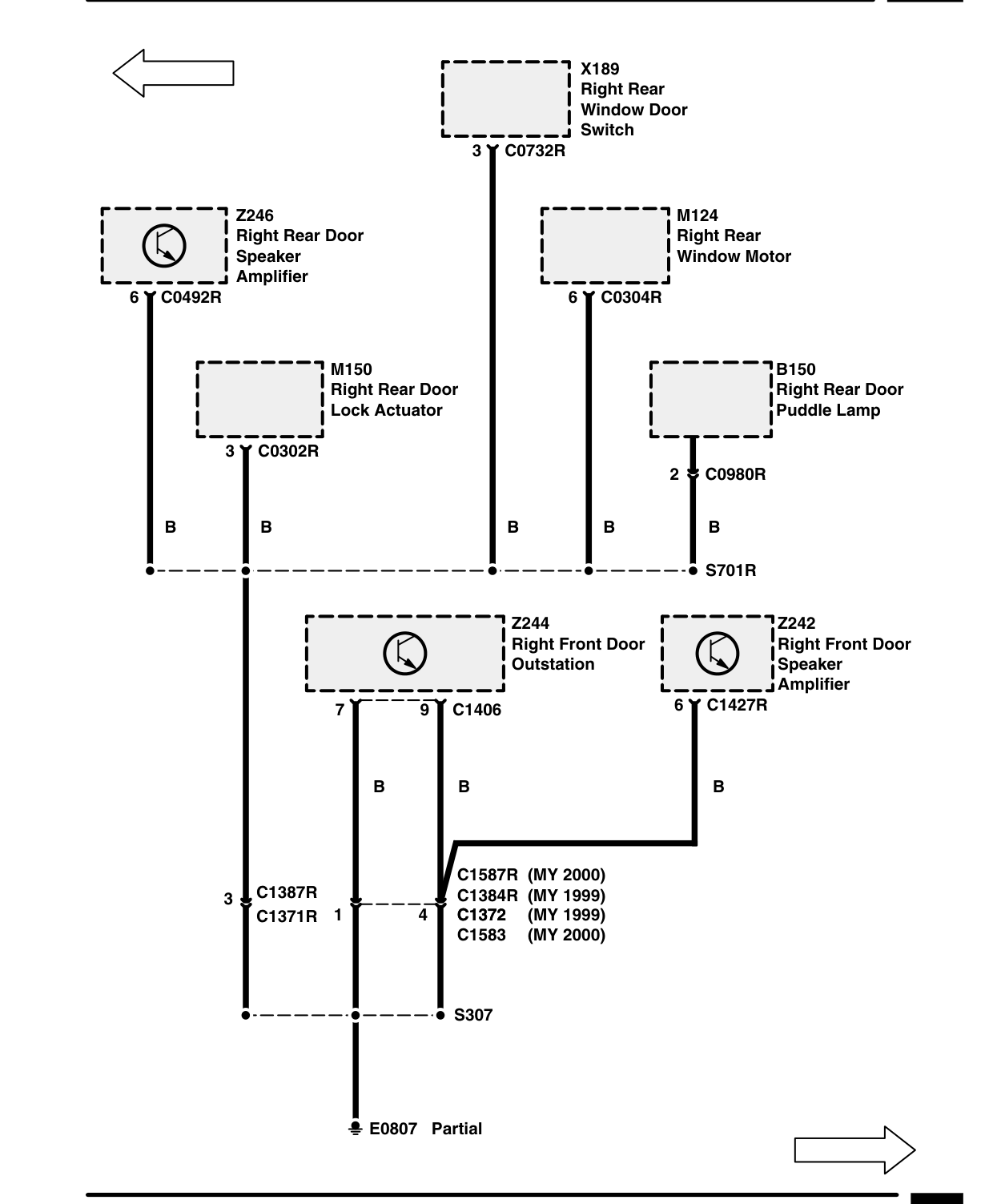

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 11/99
Components on this page
- B150 Right Rear Door Puddle Lamp
- E0807 Partial
- M124 Right Rear Window Motor
- M150 Right Rear Door Lock Actuator
- X189 Right Rear Window Door Switch C0732R 3
- Z242 Right Front Door Speaker Amplifier C1427R 6 C1406 9
- Z244 Right Front Door Outstation
- Z246 Right Rear Door Speaker Amplifier C0492R 6
