Ground distributionGround distribution – circuit diagram rev: 11/99

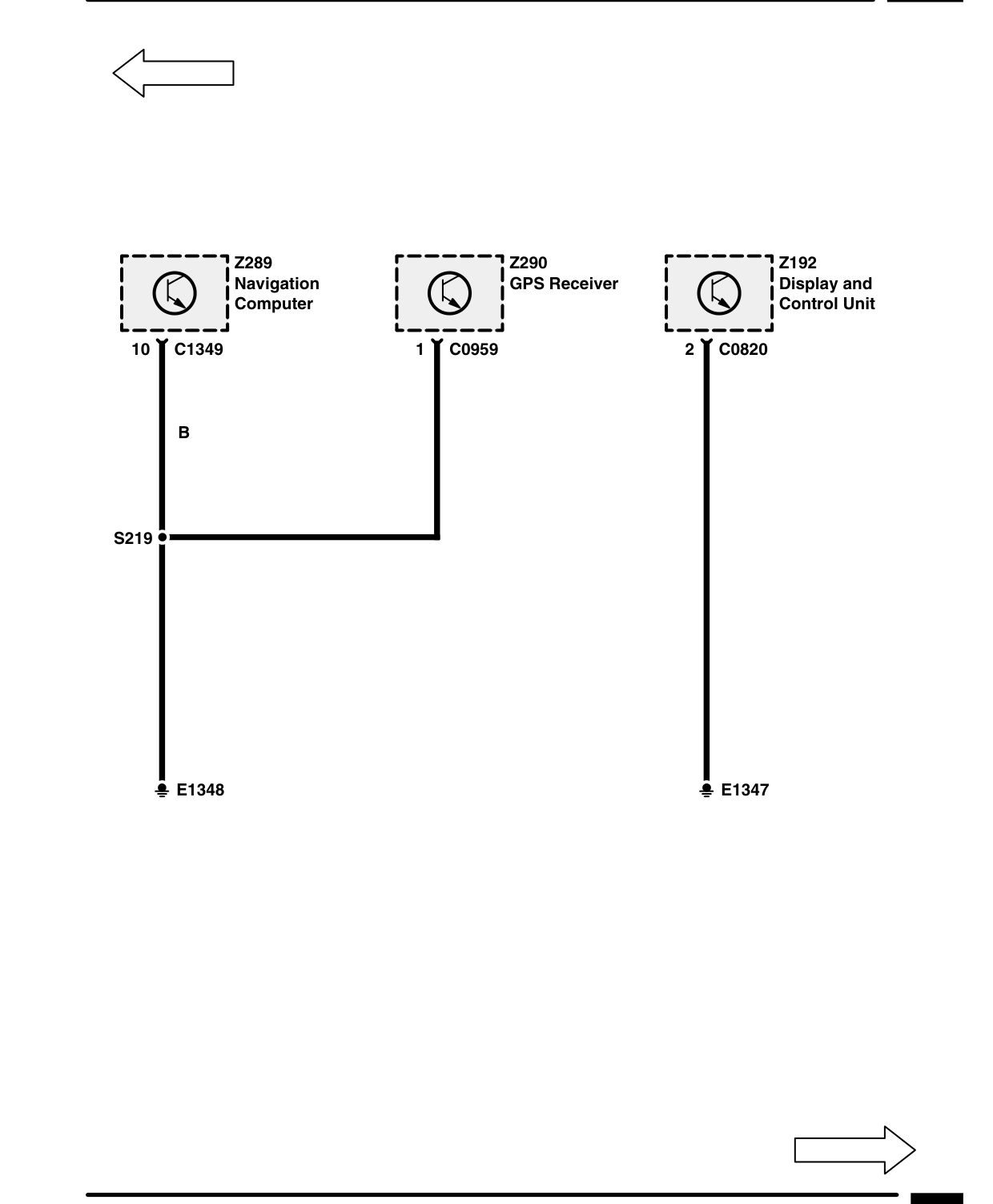

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 11/99
Components on this page
- Z192 Display and Control Unit
- Z289 Navigation Computer
- Z290 GPS Receiver
