Ground distribution – ground distribution (diesel)
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Ground distribution (DIESEL) › Ground distribution – ground distribution (diesel)
‹ Prev Ground distribution – circuit diagram rev: 11/99Next › Ground distribution – circuit diagram rev: 08/99
Ground distributionGround distribution – ground distribution (diesel)

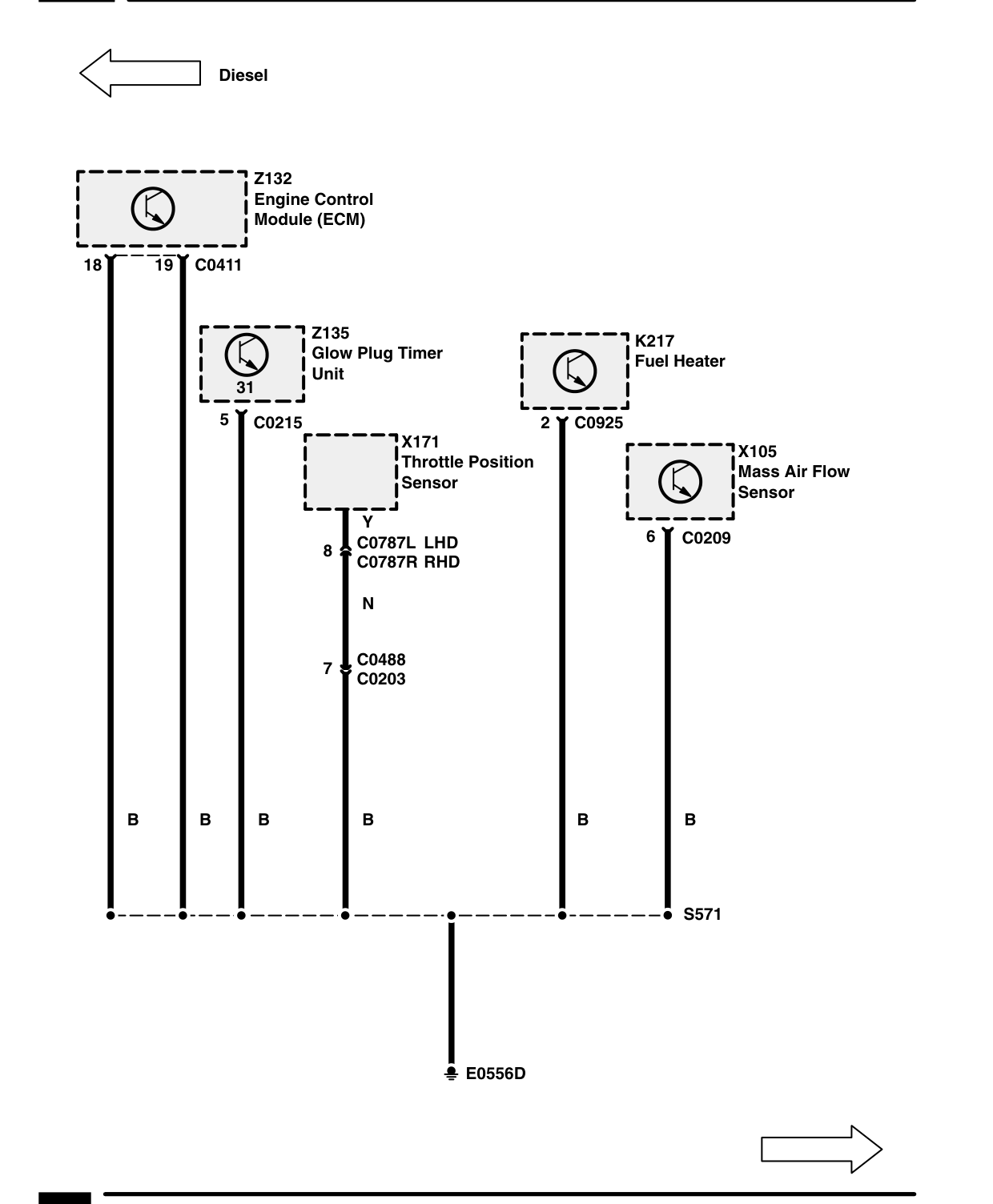

GROUND DISTRIBUTION – GROUND DISTRIBUTION (DIESEL)
Components on this page
- K217 Fuel Heater
- X105 Mass Air Flow Sensor
- X171 Throttle Position Sensor
- Z132 Engine Control Module (ECM)
- Z135 Glow Plug Timer Unit
‹ Prev Ground distribution – circuit diagram rev: 11/99Next › Ground distribution – circuit diagram rev: 08/99
