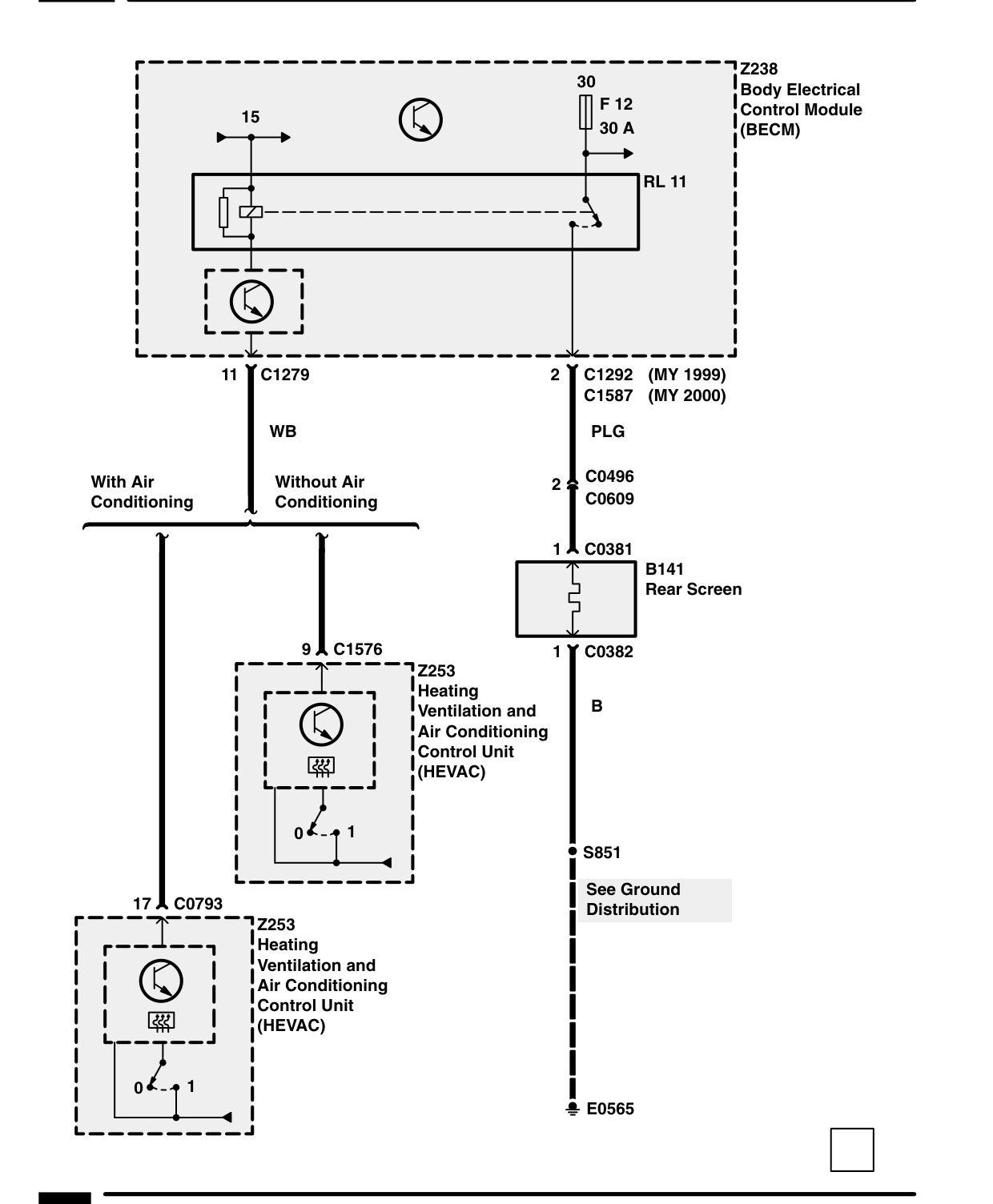

HEATED REAR SCREEN – CIRCUIT DIAGRAM REV: 11/99
Components on this page
- B141 Rear Screen
- Z238 Body Electrical Control Module (BECM)
- Z253 Heating Ventilation and Air Conditioning Control Unit (HEVAC)
