Horns – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram › Horns – circuit diagram
‹ Prev Warnings and indicators – circuit diagram rev: 08/99Next › Radio – circuit operation rev: 09/2001
HornsHorns – circuit diagram

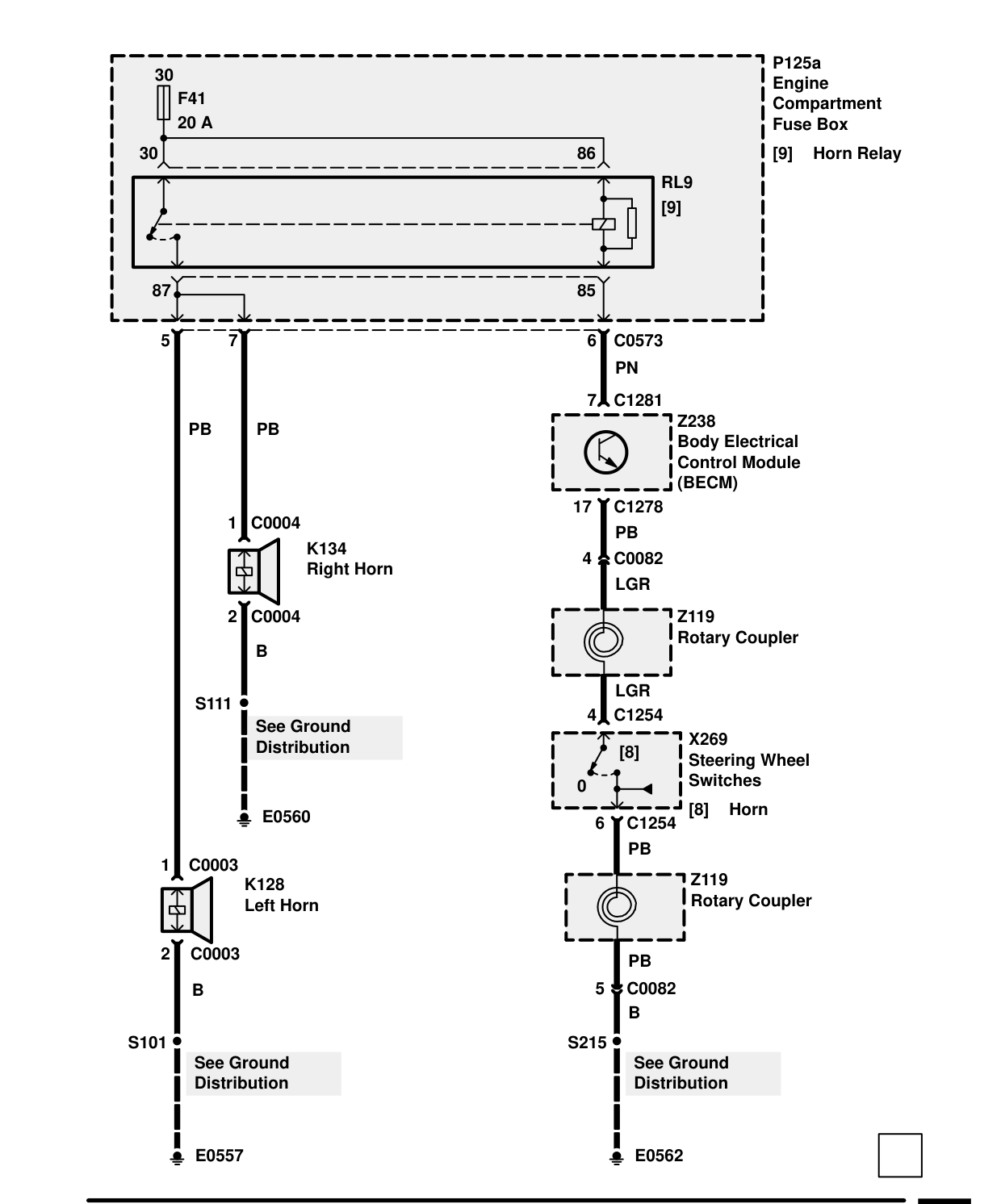

HORNS – CIRCUIT DIAGRAM
Components on this page
- K128 Left Horn
- K134 Right Horn
- X269 Steering Wheel Switches
- Z119 Rotary Coupler
- Z238 Body Electrical Control Module (BECM) 17 C1278
