Interior lampsInterior lamps – circuit diagram

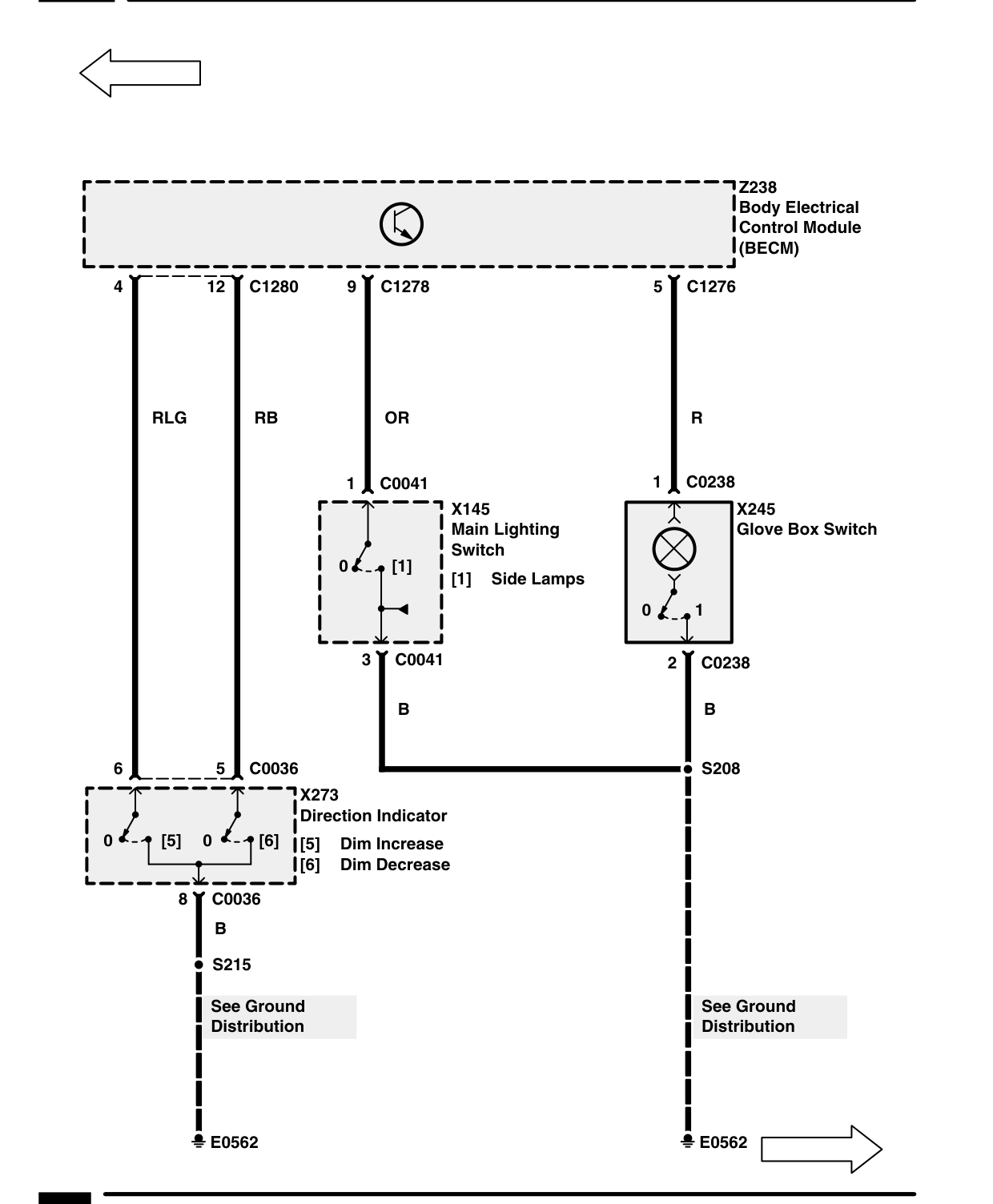

INTERIOR LAMPS – CIRCUIT DIAGRAM
Components on this page
- X145 Main Lighting Switch
- X245 Glove Box Switch
- X273 Direction Indicator
- Z238 Body Electrical Control Module (BECM)
