Interior lamps – circuit diagram rev: 11/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 11/99 › Interior lamps – circuit diagram rev: 11/99
Interior lampsInterior lamps – circuit diagram rev: 11/99

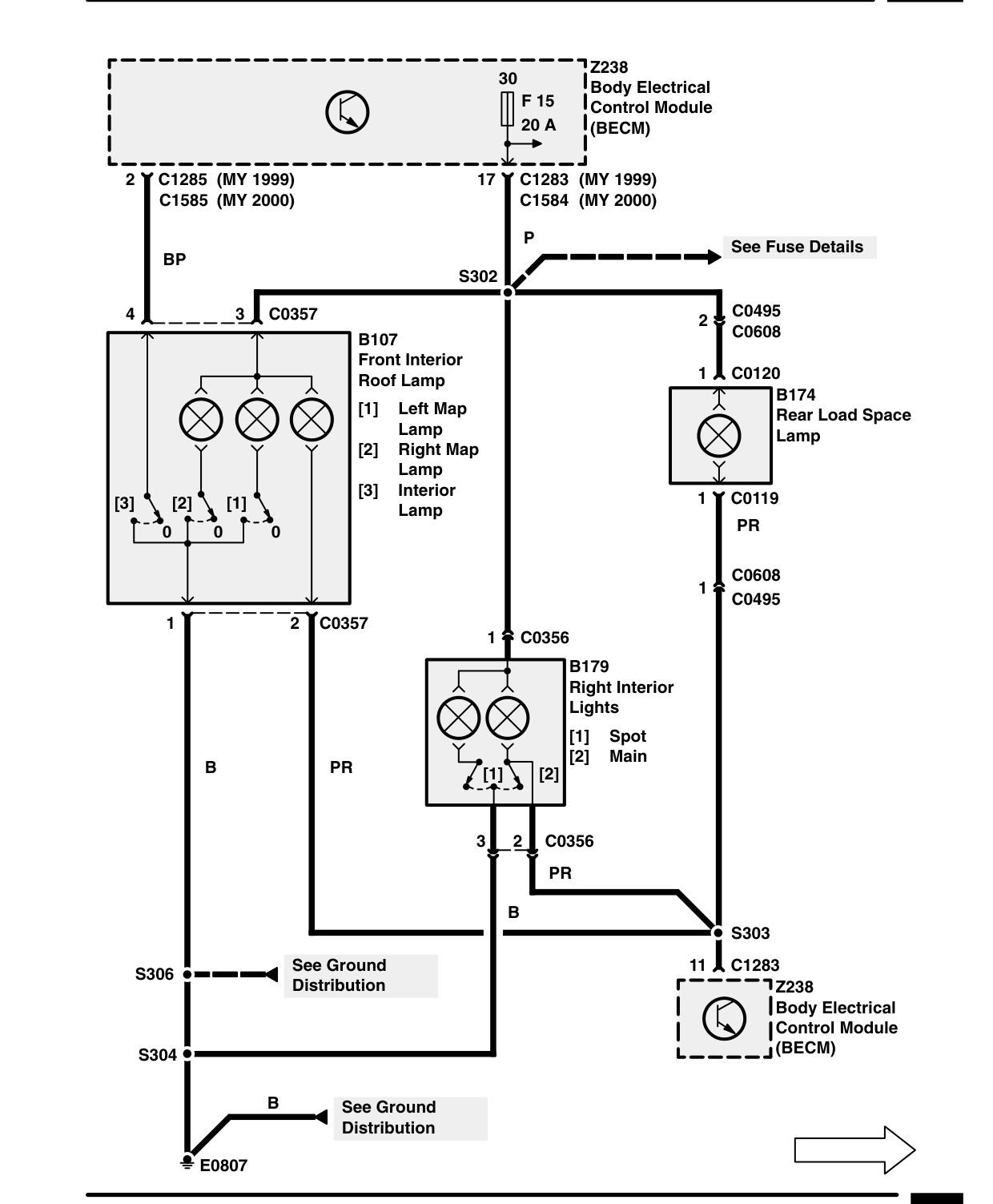

INTERIOR LAMPS – CIRCUIT DIAGRAM REV: 11/99
Components on this page
- B107 Front Interior Roof Lamp
- B174 Rear Load Space Lamp
- B179 Right Interior Lights
- Z238 Body Electrical Control Module (BECM)
