Navigation systemNavigation system – circuit diagram add: 11/99

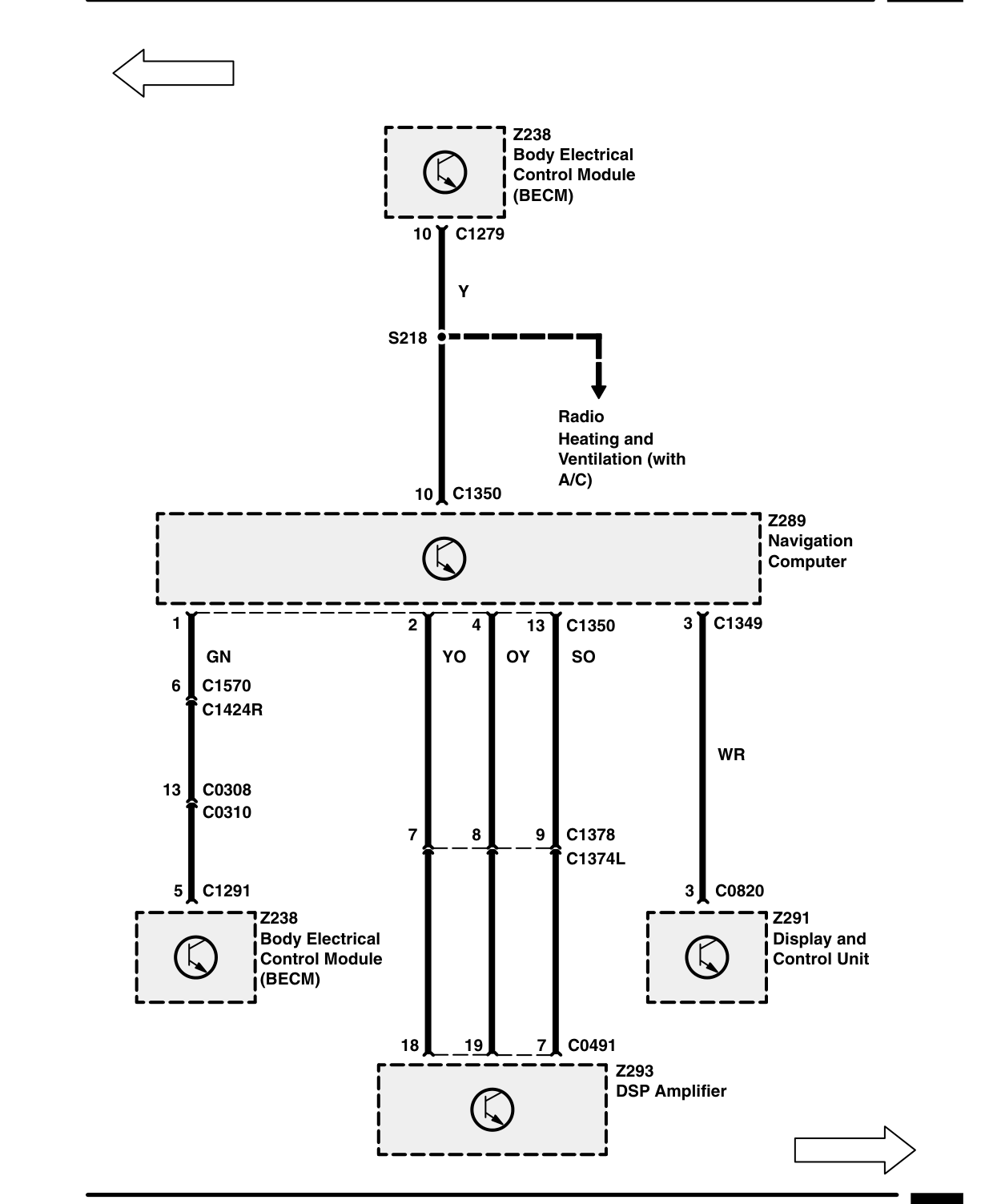

NAVIGATION SYSTEM – CIRCUIT DIAGRAM ADD: 11/99
Components on this page
- Z238 Body Electrical Control Module (BECM)
- Z289 Navigation Computer
- Z291 Display and Control Unit
- Z293 DSP Amplifier
