Navigation system – circuit diagram rev: 09/2001
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 09/2001 › Navigation system – circuit diagram rev: 09/2001
‹ Prev Navigation system – circuit operation rev: 09/2001Next › Navigation system – circuit diagram add: 11/99
Navigation systemNavigation system – circuit diagram rev: 09/2001

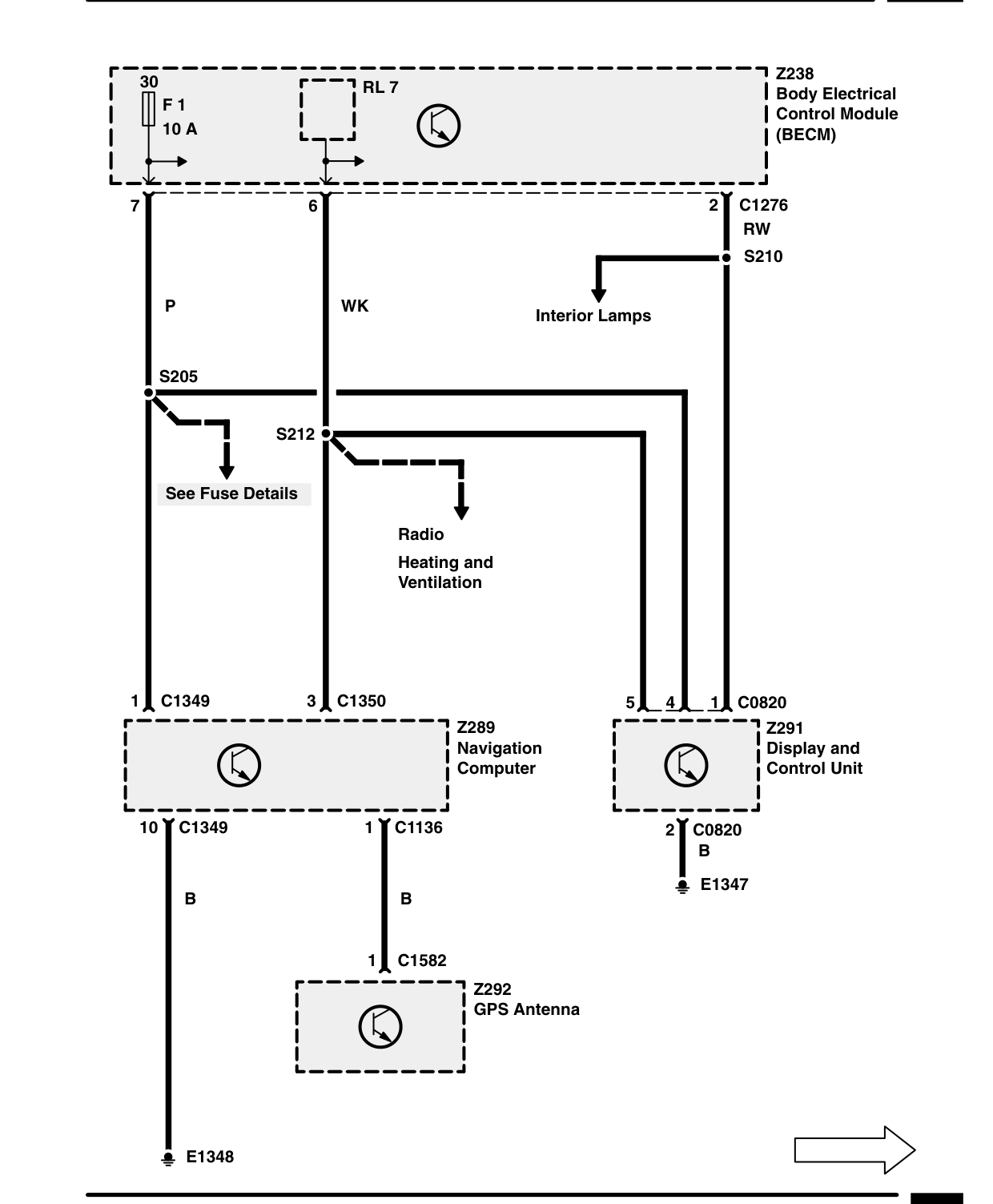

NAVIGATION SYSTEM – CIRCUIT DIAGRAM REV: 09/2001
Components on this page
- Z238 Body Electrical Control Module (BECM)
- Z289 Navigation Computer
- Z291 Display and Control Unit
- Z292 GPS Antenna
