Power distribution – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Power distribution – circuit diagram rev: 08/99
‹ Prev Security/central locking – circuit diagramNext › Power distribution – circuit diagram rev: 11/99
Power distributionPower distribution – circuit diagram rev: 08/99

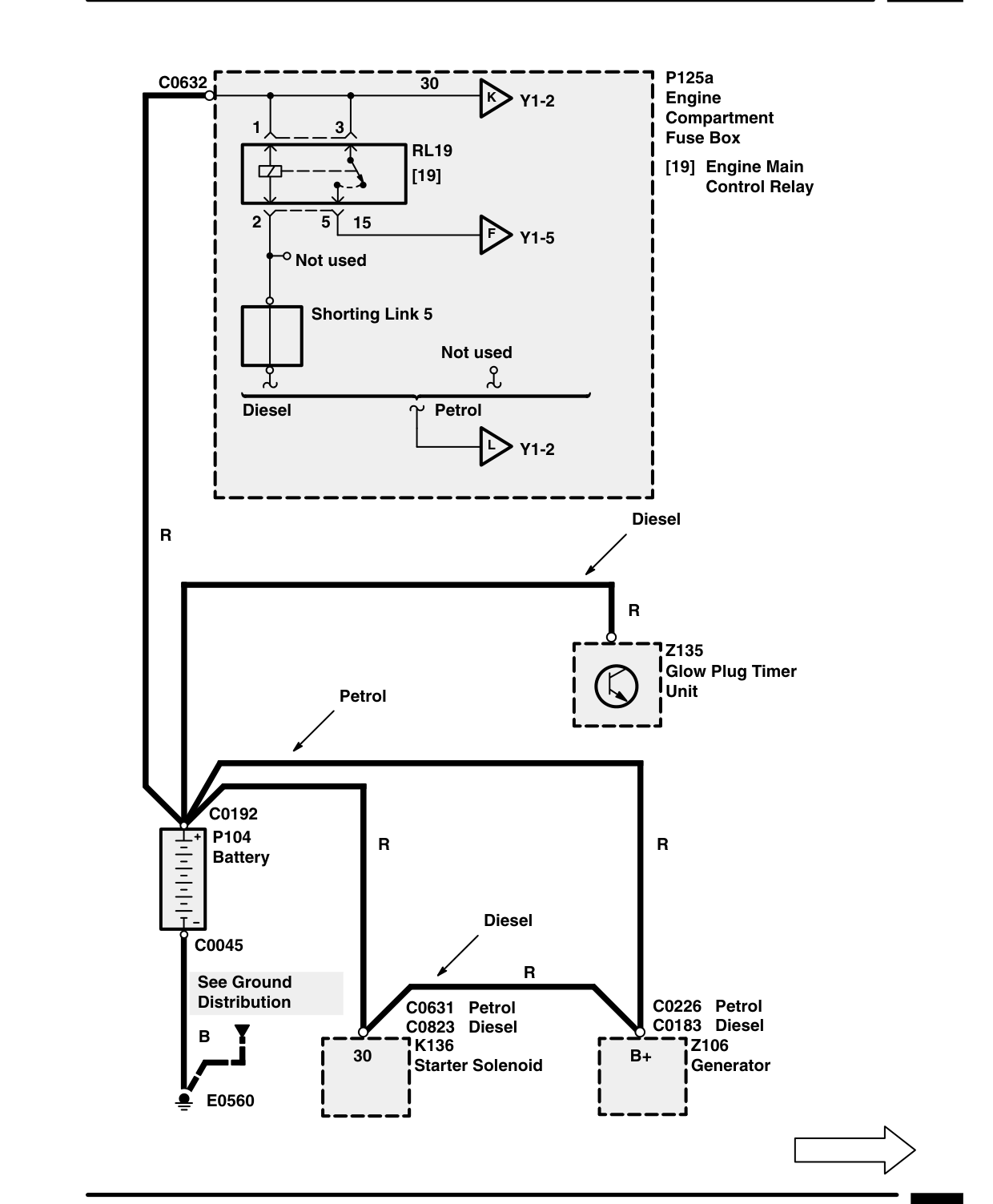

POWER DISTRIBUTION – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- P104 Battery
- Z106 Generator
- Z135 Glow Plug Timer Unit
