Land Rover Range Rover P38 Electrical Troubleshooting Manual (1999 on)33 · Power seats
33 · Body & interior

Power seats – circuit diagram rev: 11/99

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1999 on
Section
Circuit diagram rev: 11/99 › Power seats – circuit diagram rev: 11/99
Power seatsPower seats – circuit diagram rev: 11/99

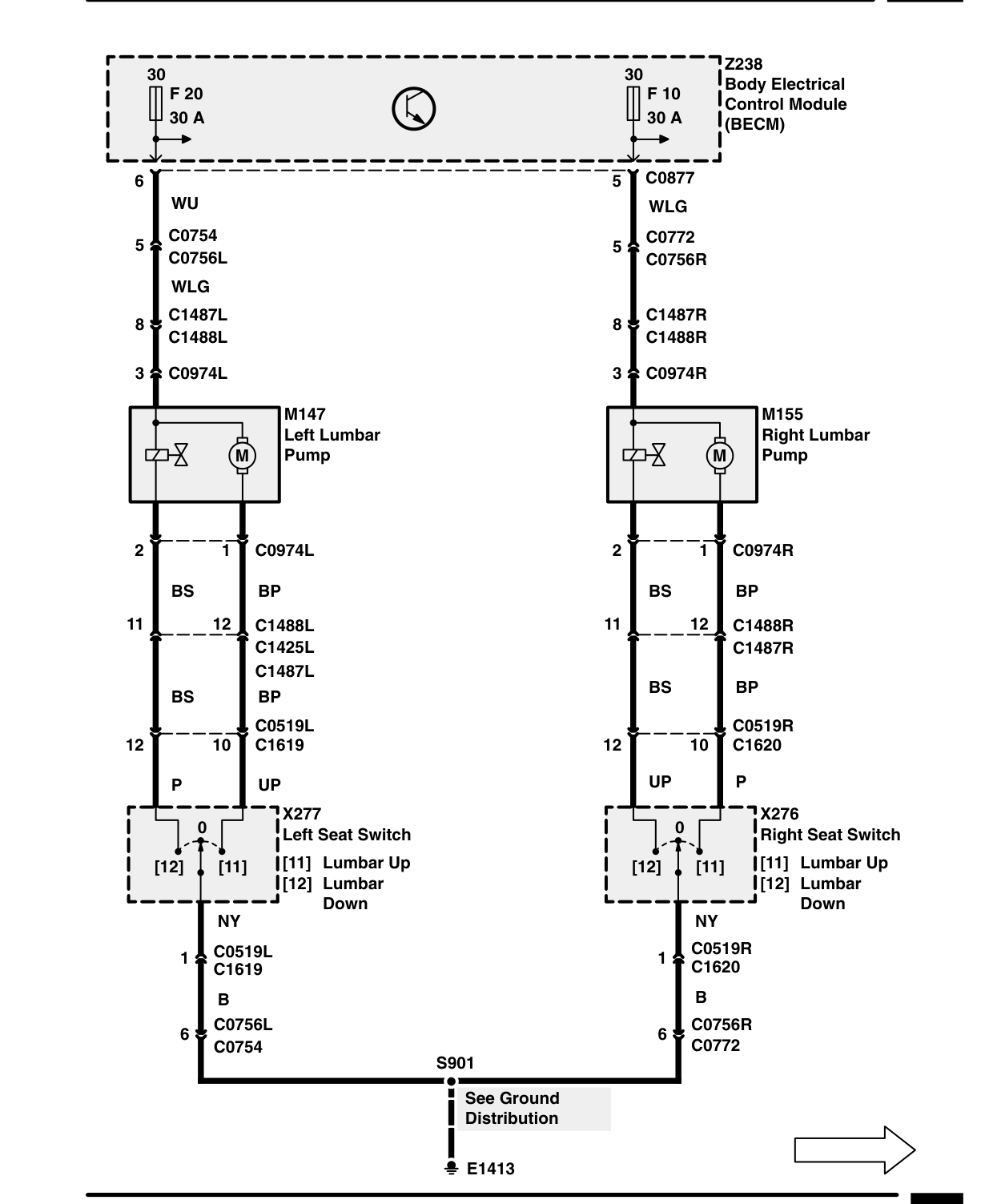

POWER SEATS – CIRCUIT DIAGRAM REV: 11/99

Power Seats – Circuit Diagram Rev: 11/99

Components on this page

  • M147 Left Lumbar Pump
  • M155 Right Lumbar Pump
  • X276 Right Seat Switch
  • X277 Left Seat Switch
  • Z238 Body Electrical Control Module (BECM)
