Starting and chargingStarting and charging – circuit diagram

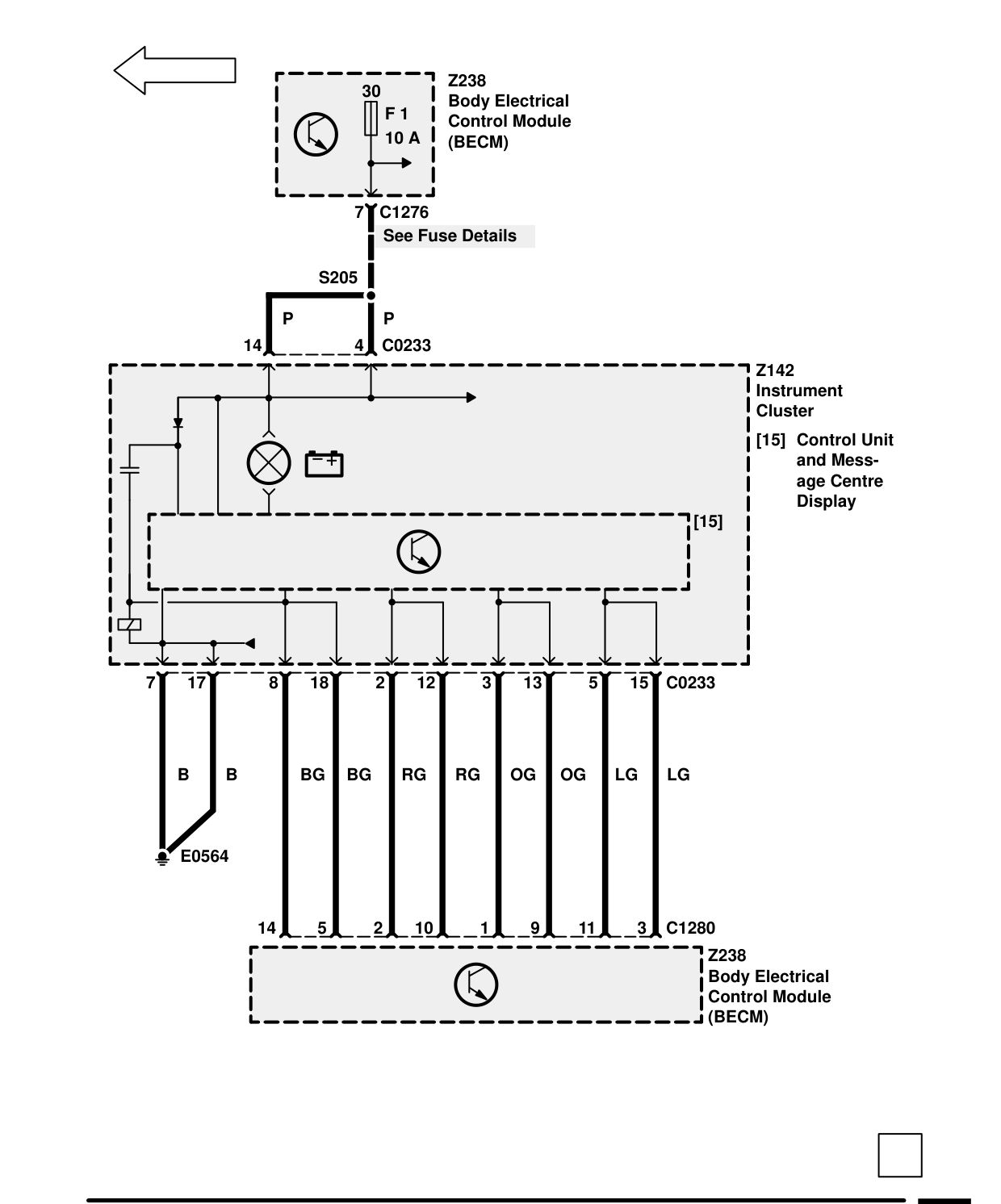

STARTING AND CHARGING – CIRCUIT DIAGRAM
Components on this page
- Z142 Instrument Cluster
- Z238 Body Electrical Control Module (BECM)
