Starting and charging – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Starting and charging – circuit diagram rev: 08/99
‹ Prev Starting and charging – starting and charging (diesel)Next › Starting and charging – circuit diagram
Starting and chargingStarting and charging – circuit diagram rev: 08/99

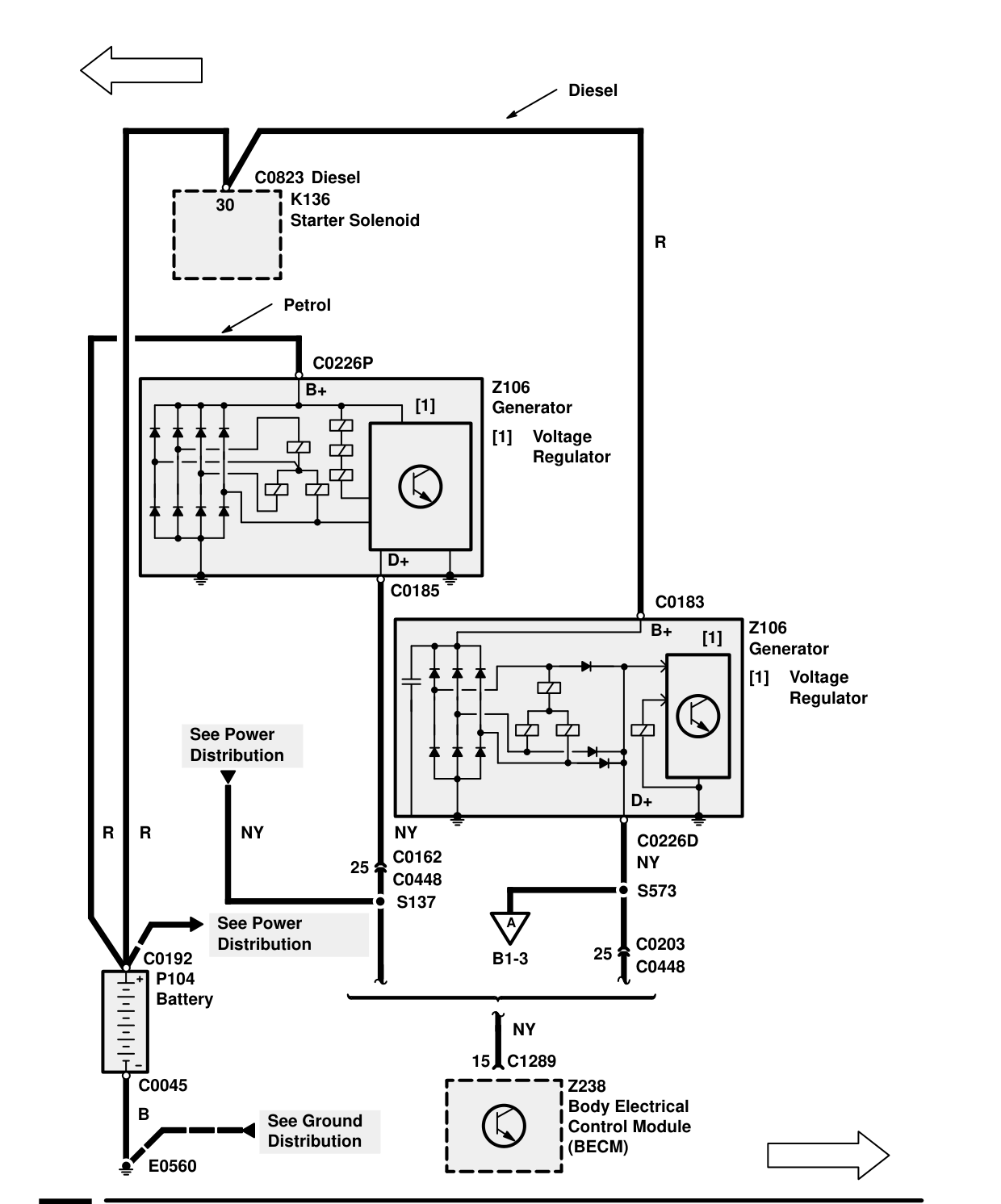

STARTING AND CHARGING – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- C0823 Diesel
- K136 Starter Solenoid
- P104 Battery
- Z106 Generator
- Z238 Body Electrical Control Module (BECM)
‹ Prev Starting and charging – starting and charging (diesel)Next › Starting and charging – circuit diagram
