Wash/wipe – circuit diagram rev: 08/99
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1999 on
- Section
- Circuit diagram rev: 08/99 › Wash/wipe – circuit diagram rev: 08/99
Wash/wipeWash/wipe – circuit diagram rev: 08/99

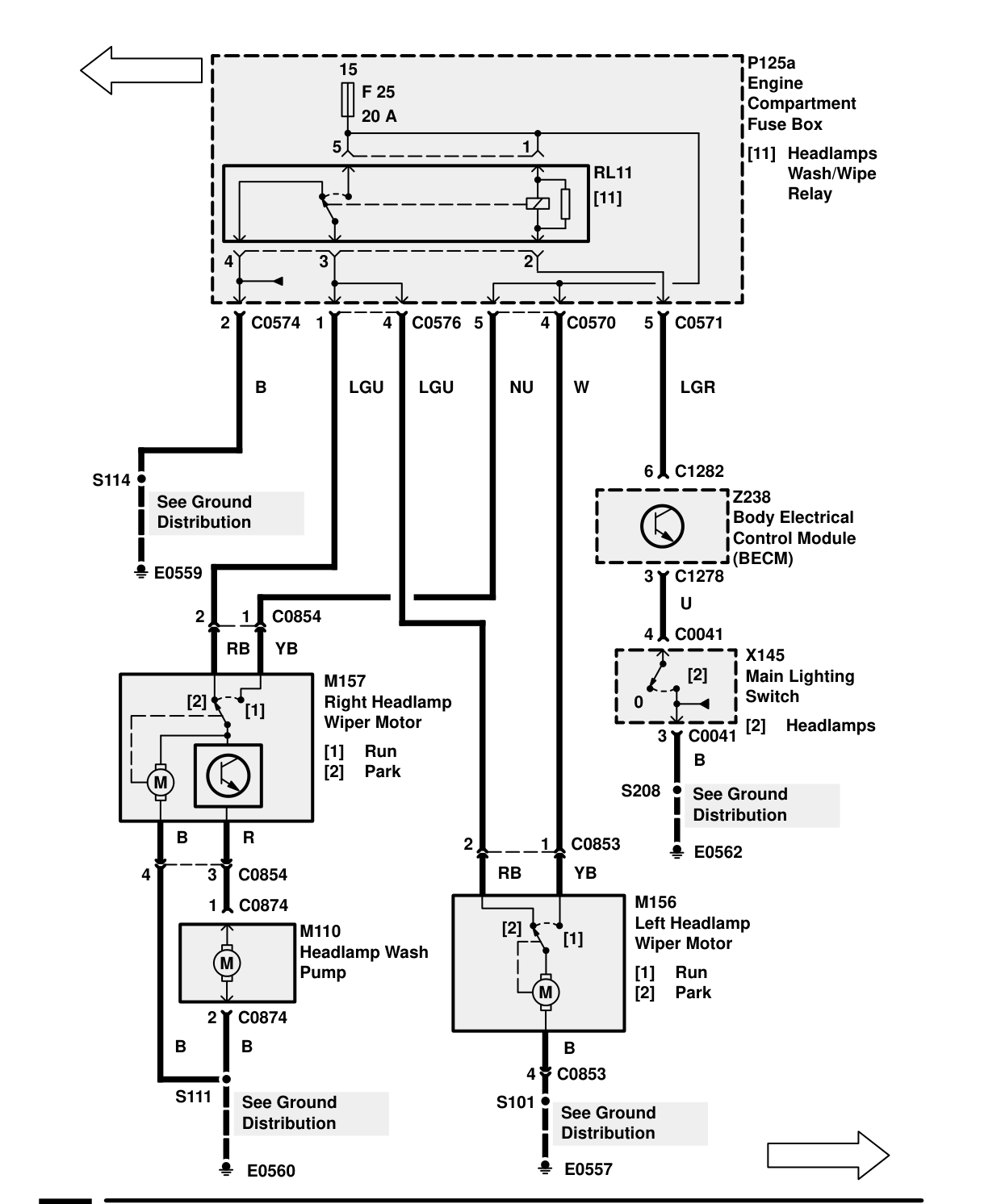

WASH/WIPE – CIRCUIT DIAGRAM REV: 08/99
Components on this page
- M110 Headlamp Wash Pump
- M156 Left Headlamp Wiper Motor
- M157 Right Headlamp Wiper Motor
- X145 Main Lighting Switch
- Z238 Body Electrical Control Module (BECM)
