Range Rover P38
HEATING AND VENTILATION
9
REPAIR
4. Lower glove box liner from fascia gaining access
to servo.
5. Drivers Side. Remove fascia closing panel.
See CHASSIS AND BODY, Repair.
6. Remove radio.
See ELECTRICAL, Repair.
7. Remove heater control panel.
See this section.
8. Release fascia switch pack. Position aside.
See
ELECTRICAL, Repair.

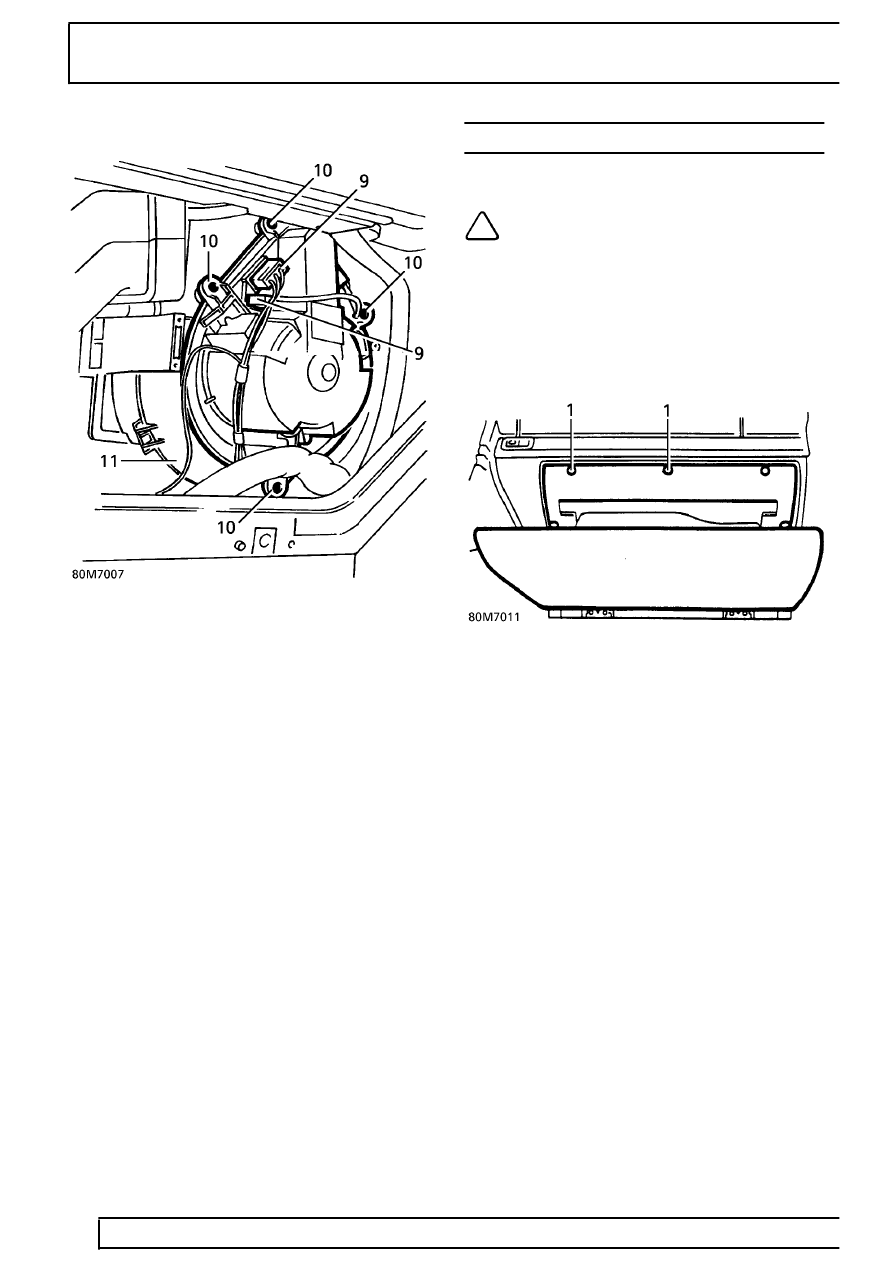

9. Remove 4 bolts securing fascia centre support
plate to transmission tunnel and fascia.
10. Remove 2 harness clamps.
11. Identify relevant pins in servo harness
connector. Release 2 locking tags on rear of
connector.
12. Release relevant pins from connector by
inserting thin probe into front face as shown.
13. Remove 2 screws securing servo to heater
casing. Remove servo.
