Range Rover P38
AIR CONDITIONING
7
REPAIR

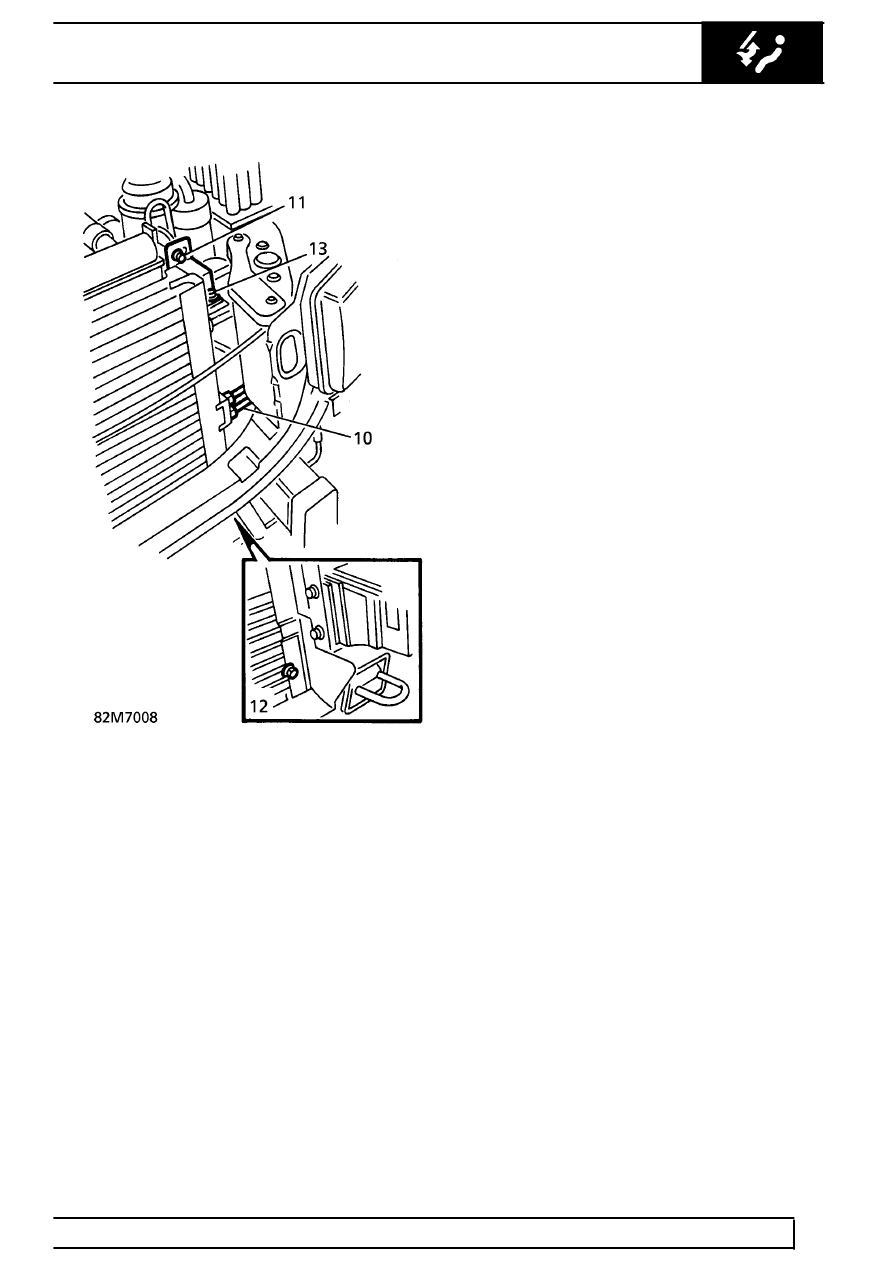

11. Remove 2 bolts securing condenser upper
mounting brackets to radiator mounting.
12. Remove 2 lower securing bolts. Remove
condenser.
13. Remove 2 bolts securing mounting brackets to
condenser. Remove brackets.
Refit
14. Fit mounting brackets to condenser. Secure with
bolts.
15. Position condenser. Secure with bolts.
16. Remove plugs from pipes and condenser.
17. Lubricate new ’O’ rings with compressor oil. Fit
to connections.
18. Connect pipes to condenser. Tighten to
15 Nm.
(11 lbf.ft)
19. Position LH air deflector. Secure with studs.
20. Position cooling fans. Secure with bolts. Connect
multiplugs.
21. Position bonnet platform. Secure bonnet release
cable with strap.
22. Secure bonnet platform with bolts.
