Steering wheel indicator cancelling ring broken

STEERING WHEEL INDICATOR CANCELLING RING BROKEN

Model

Range Rover Classic non air bag/cruise control Discovery non air bag/cruise control

Affected vehicles

651882 to 661641 500000 to 500020 097165 to 155769

Date

1995-10-11

Reference

11/10/95

Bulletin text

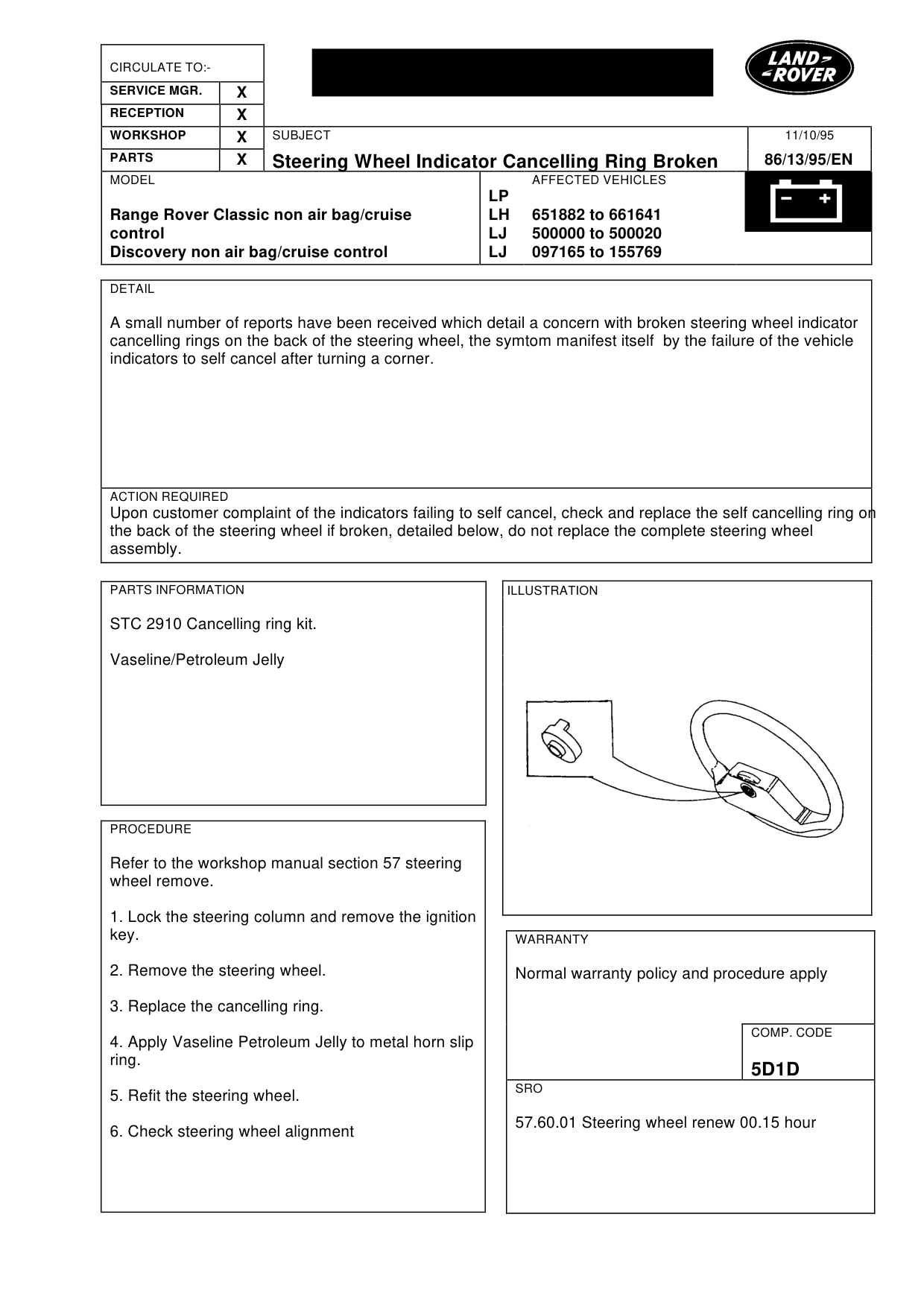

Steering Wheel Indicator Cancelling Ring Broken

MODEL

Range Rover Classic non air bag/cruise control Discovery non air bag/cruise control

DETAIL

A small number of reports have been received which detail a concern with broken steering wheel indicator cancelling rings on the back of the steering wheel, the symtom manifest itself by the failure of the vehicle indicators to self cancel after turning a corner.

ACTION REQUIRED

Upon customer complaint of the indicators failing to self cancel, check and replace the self cancelling ring on the back of the steering wheel if broken, detailed below, do not replace the complete steering wheel assembly.

PARTS INFORMATION

STC 2910 Cancelling ring kit.

Vaseline/Petroleum Jelly

PROCEDURE

Refer to the workshop manual section 57 steering wheel remove.

1. Lock the steering column and remove the ignition key.

2. Remove the steering wheel.

3. Replace the cancelling ring.

4. Apply Vaseline Petroleum Jelly to metal horn slip ring.

5. Refit the steering wheel.

6. Check steering wheel alignment

11/10/95

86/13/95/EN

AFFECTED VEHICLES

LP LH 651882 to 661641 LJ 500000 to 500020 LJ 097165 to 155769

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

5D1D

SRO

57.60.01 Steering wheel renew 00.15 hour
