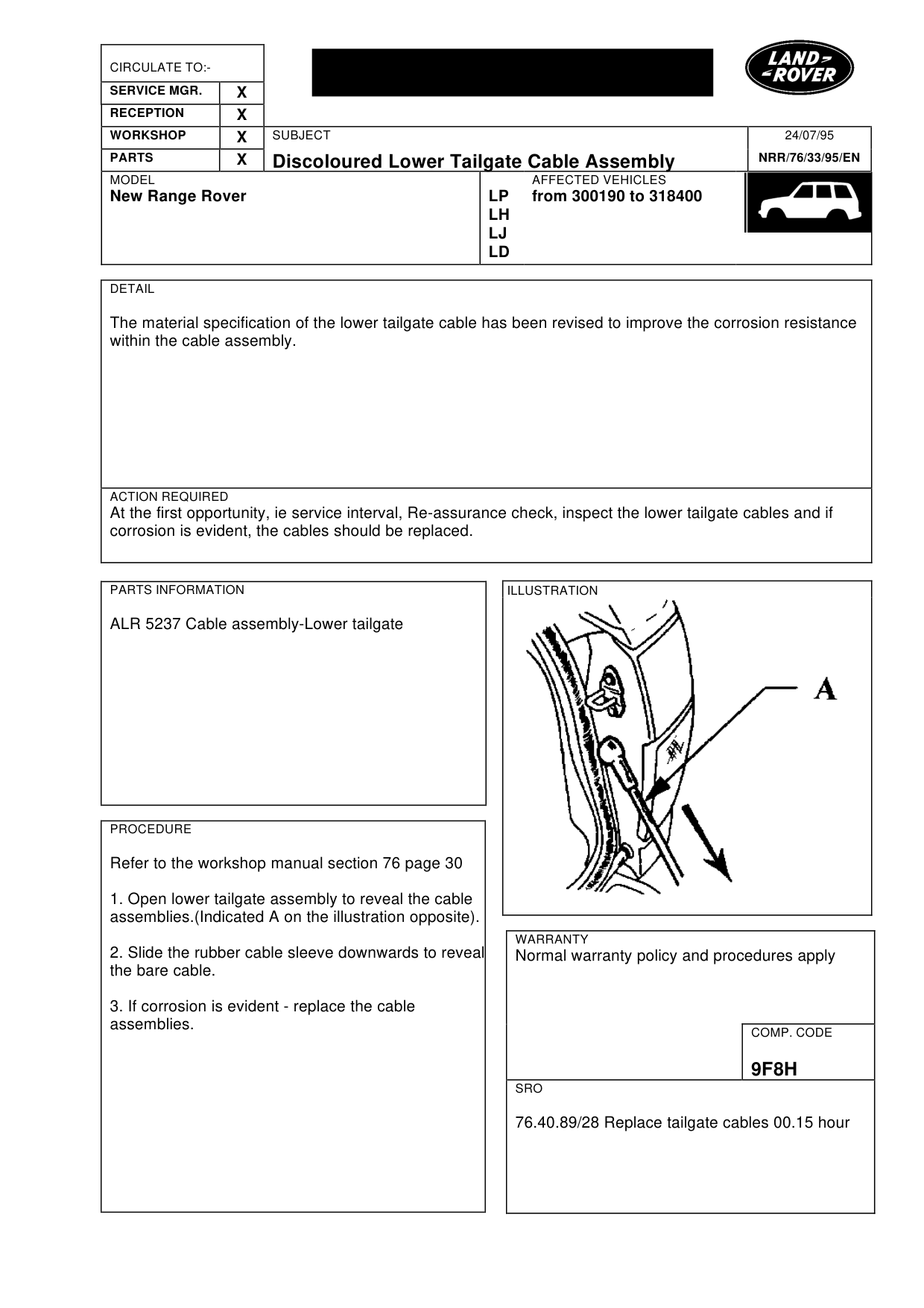

Discoloured lower tailgate cable assembly

DISCOLOURED LOWER TAILGATE CABLE ASSEMBLY

Model

New Range Rover

Affected vehicles

from 300190 to 318400

Date

1995-07-24

Reference

24/07/95

Bulletin text

Discoloured Lower Tailgate Cable Assembly

MODEL

New Range Rover

DETAIL

The material specification of the lower tailgate cable has been revised to improve the corrosion resistance within the cable assembly.

ACTION REQUIRED

At the first opportunity, ie service interval, Re-assurance check, inspect the lower tailgate cables and if corrosion is evident, the cables should be replaced.

PARTS INFORMATION

ALR 5237 Cable assembly-Lower tailgate

PROCEDURE

Refer to the workshop manual section 76 page 30

1. Open lower tailgate assembly to reveal the cable assemblies.(Indicated A on the illustration opposite).

2. Slide the rubber cable sleeve downwards to reveal the bare cable.

3. If corrosion is evident - replace the cable assemblies.

24/07/95

NRR/76/33/95/EN

AFFECTED VEHICLES

LP from 300190 to 318400 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

9F8H

SRO

76.40.89/28 Replace tailgate cables 00.15 hour
