Door casing creak

DOOR CASING CREAK

Model

New Range Rover

Affected vehicles

All

Date

1995-08-09

Reference

09/08/95

Bulletin text

Door Casing Creak

MODEL

New Range Rover

DETAIL

Information has been received from the dealer network, indicating an audible creak that may be heard coming from any of the four door casings.

Investigations have identified the cause to be emanating from the edge of the door casing rubbing against the body of the door frame.

ACTION REQUIRED

Upon customer complaint of a creak from any of the door casings, follow the procedure detailed

PARTS INFORMATION

No parts required.

PROCEDURE

Refer to the workshop manual section 76 trim casing front door and trim casing rear door, to remove the door casings.

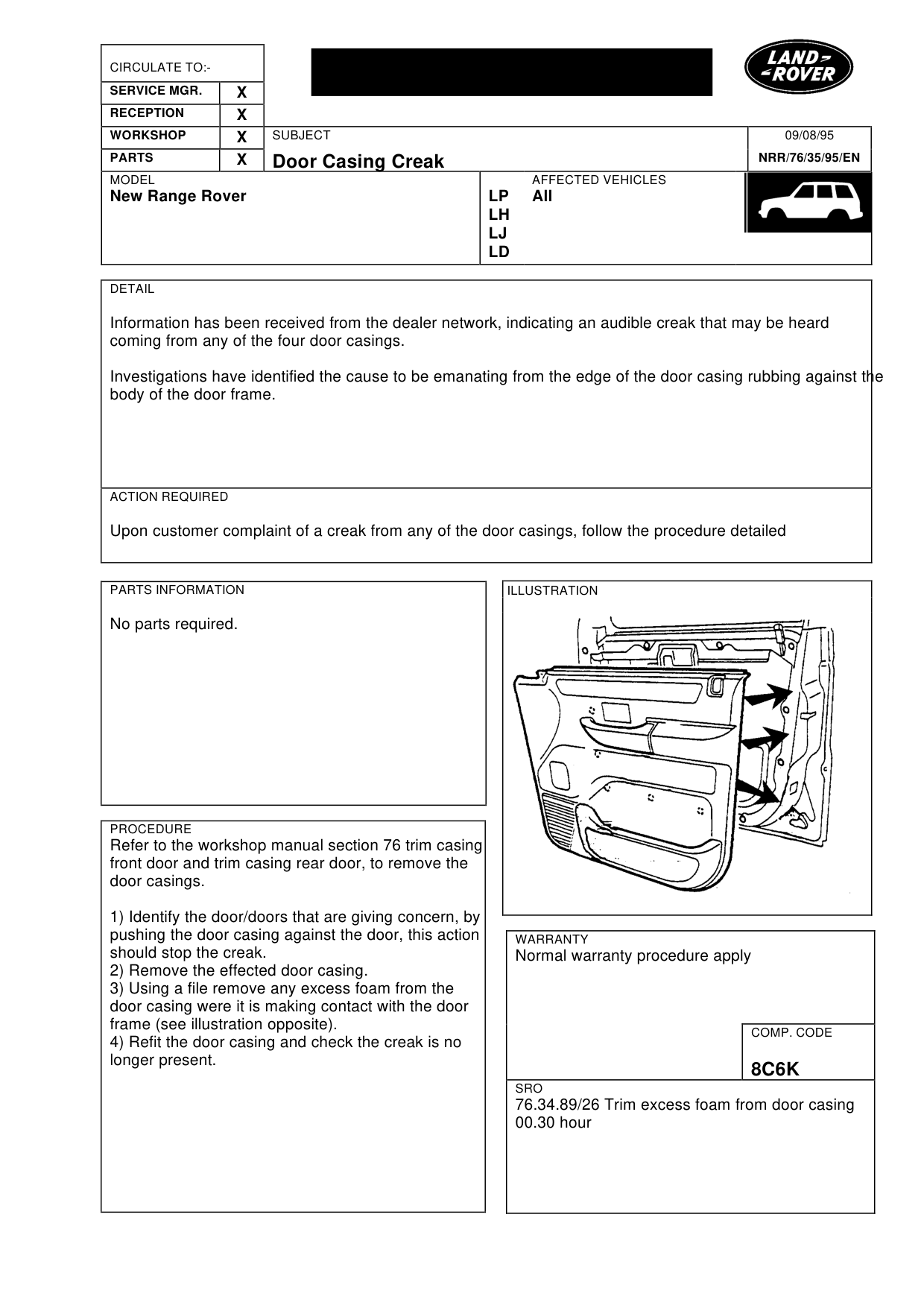

1) Identify the door/doors that are giving concern, by pushing the door casing against the door, this action should stop the creak. 2) Remove the effected door casing. 3) Using a file remove any excess foam from the door casing were it is making contact with the door frame (see illustration opposite). 4) Refit the door casing and check the creak is no longer present.

09/08/95

NRR/76/35/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal warranty procedure apply

COMP. CODE

8C6K

SRO

76.34.89/26 Trim excess foam from door casing 00.30 hour
