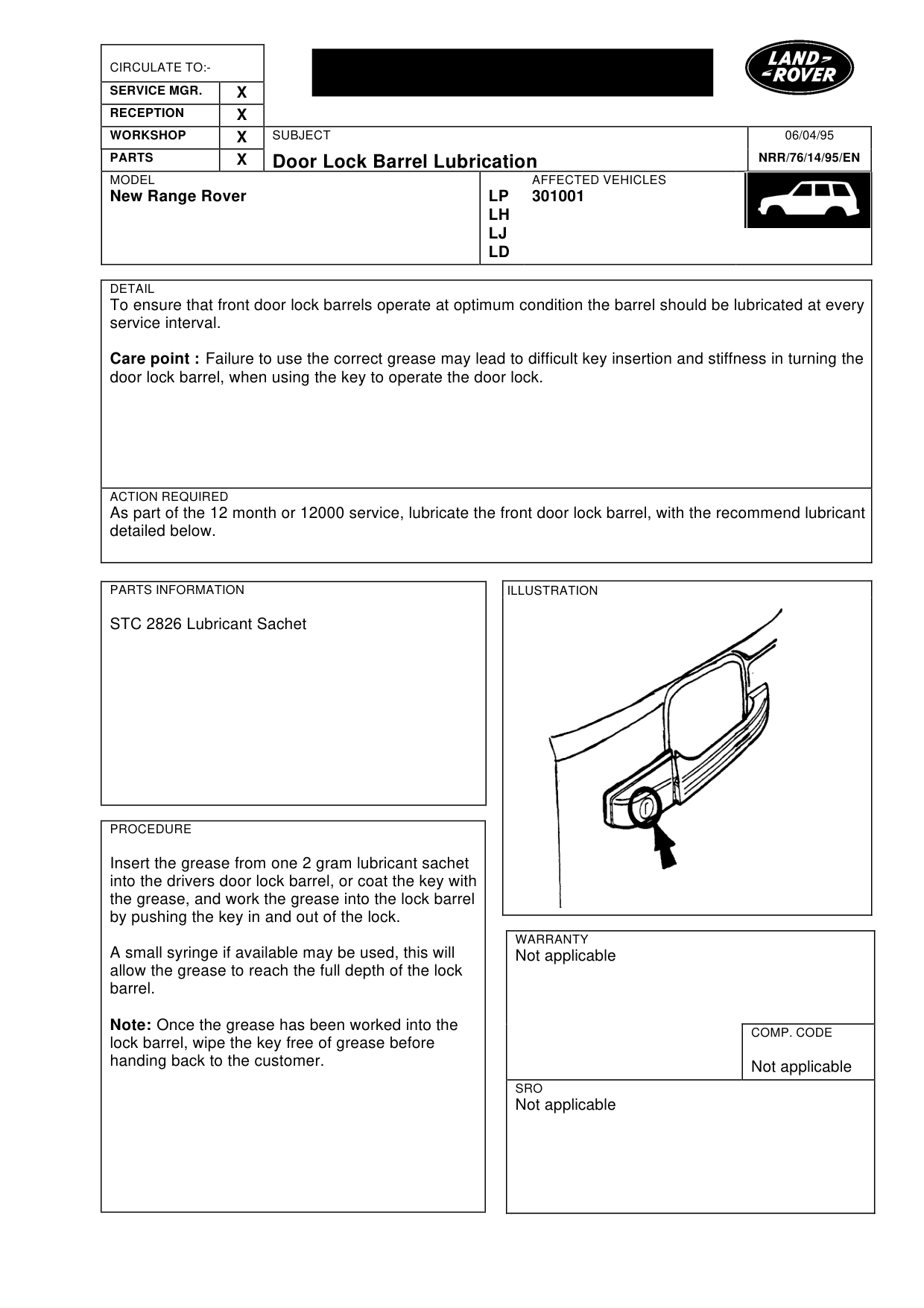

Door lock barrels lubrication

DOOR LOCK BARRELS LUBRICATION

Model

New Range Rover

Affected vehicles

301001

Date

1995-04-06

Reference

06/04/95

Bulletin text

Door Lock Barrel Lubrication

MODEL

New Range Rover

DETAIL

To ensure that front door lock barrels operate at optimum condition the barrel should be lubricated at every service interval.

Care point : Failure to use the correct grease may lead to difficult key insertion and stiffness in turning the door lock barrel, when using the key to operate the door lock.

ACTION REQUIRED

As part of the 12 month or 12000 service, lubricate the front door lock barrel, with the recommend lubricant detailed below.

PARTS INFORMATION

STC 2826 Lubricant Sachet

PROCEDURE

Insert the grease from one 2 gram lubricant sachet into the drivers door lock barrel, or coat the key with the grease, and work the grease into the lock barrel by pushing the key in and out of the lock.

A small syringe if available may be used, this will allow the grease to reach the full depth of the lock barrel.

Note: Once the grease has been worked into the lock barrel, wipe the key free of grease before handing back to the customer.

06/04/95

NRR/76/14/95/EN

AFFECTED VEHICLES

LP 301001 LH LJ LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
