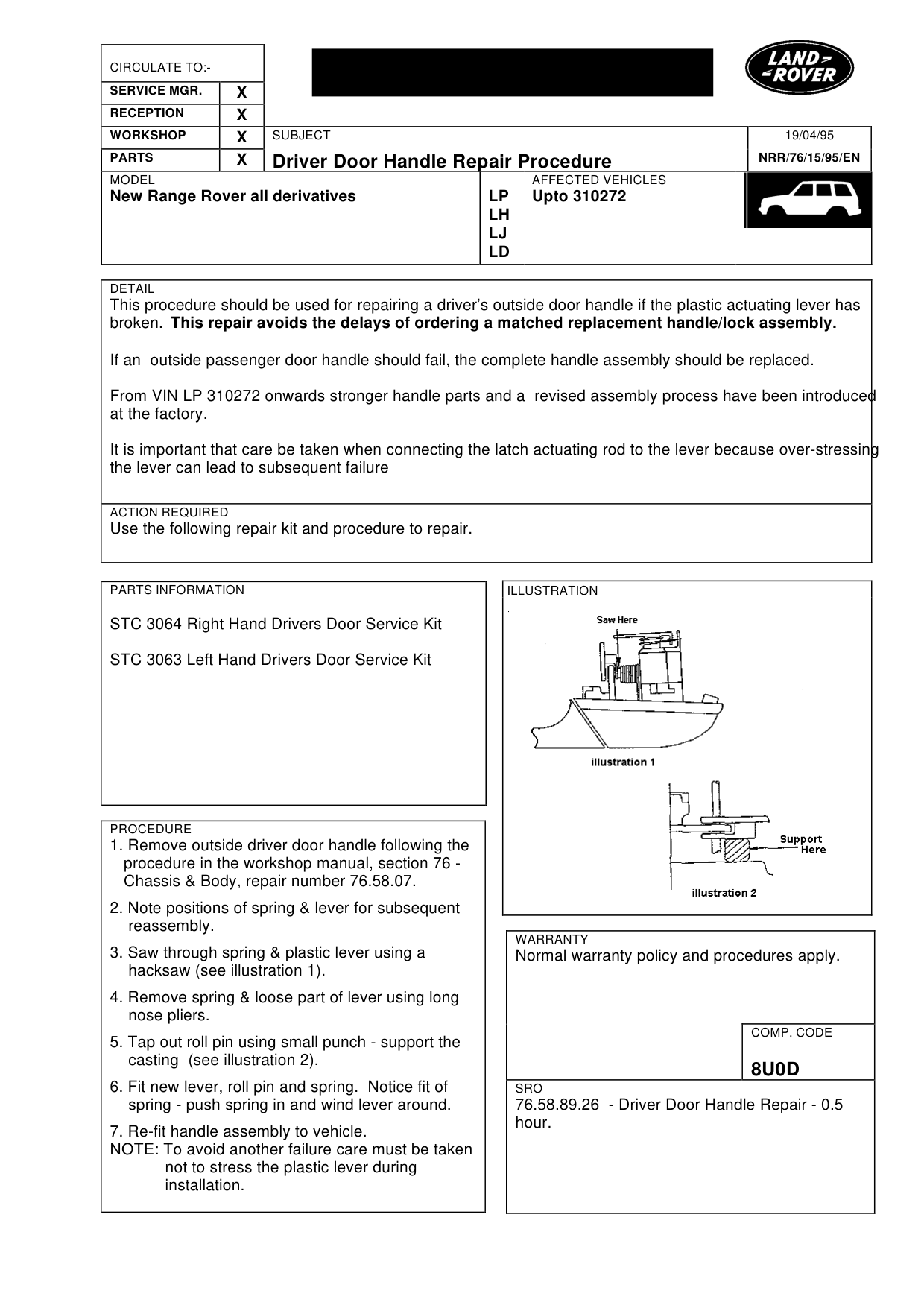

Driver door handle repair procedure

DRIVER DOOR HANDLE REPAIR PROCEDURE

Model

New Range Rover all derivatives

Affected vehicles

Upto 310272

Date

1995-04-19

Reference

19/04/95

Bulletin text

Driver Door Handle Repair Procedure

MODEL

New Range Rover all derivatives

DETAIL

This procedure should be used for repairing a driver’s outside door handle if the plastic actuating lever has broken. This repair avoids the delays of ordering a matched replacement handle/lock assembly.

If an outside passenger door handle should fail, the complete handle assembly should be replaced.

From VIN LP 310272 onwards stronger handle parts and a revised assembly process have been introduced at the factory.

It is important that care be taken when connecting the latch actuating rod to the lever because over-stressing the lever can lead to subsequent failure

ACTION REQUIRED

Use the following repair kit and procedure to repair.

PARTS INFORMATION

STC 3064 Right Hand Drivers Door Service Kit

STC 3063 Left Hand Drivers Door Service Kit

PROCEDURE

1. Remove outside driver door handle following the procedure in the workshop manual, section 76 - Chassis & Body, repair number 76.58.07. 2. Note positions of spring & lever for subsequent reassembly. 3. Saw through spring & plastic lever using a hacksaw (see illustration 1). 4. Remove spring & loose part of lever using long nose pliers. 5. Tap out roll pin using small punch - support the casting (see illustration 2). 6. Fit new lever, roll pin and spring. Notice fit of spring - push spring in and wind lever around. 7. Re-fit handle assembly to vehicle. NOTE: To avoid another failure care must be taken not to stress the plastic lever during installation.

19/04/95

NRR/76/15/95/EN

AFFECTED VEHICLES

LP Upto 310272 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

8U0D

SRO

76.58.89.26 - Driver Door Handle Repair - 0.5 hour.
