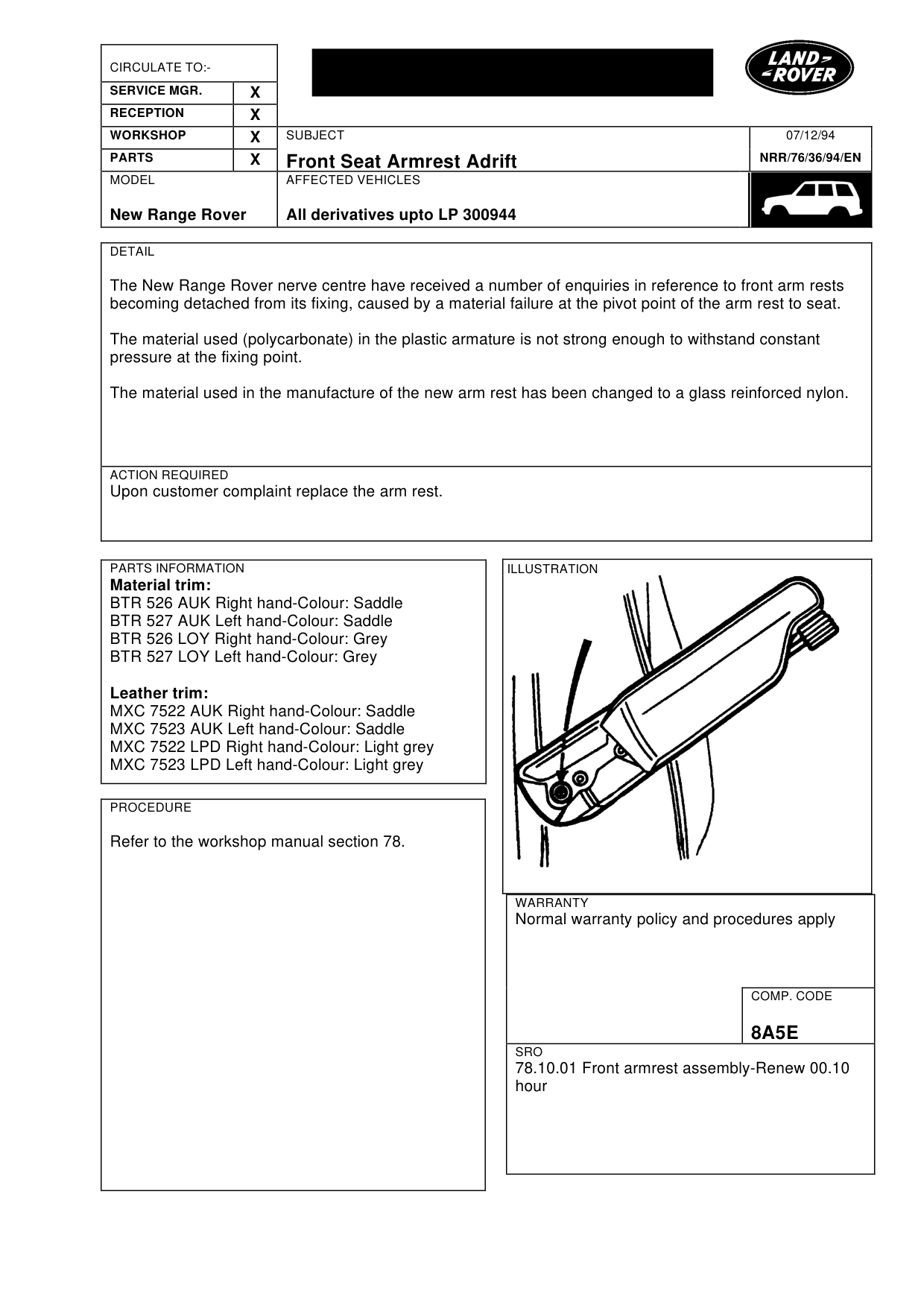

Front seat arm rest adrift

FRONT SEAT ARM REST ADRIFT

Model

New Range Rover

Affected vehicles

All derivatives upto LP 300944

Date

1994-12-07

Reference

07/12/94

Bulletin text

Front Seat Armrest Adrift

MODEL AFFECTED VEHICLES

New Range Rover All derivatives upto LP 300944

DETAIL

The New Range Rover nerve centre have received a number of enquiries in reference to front arm rests becoming detached from its fixing, caused by a material failure at the pivot point of the arm rest to seat.

The material used (polycarbonate) in the plastic armature is not strong enough to withstand constant pressure at the fixing point.

The material used in the manufacture of the new arm rest has been changed to a glass reinforced nylon.

ACTION REQUIRED

Upon customer complaint replace the arm rest.

PARTS INFORMATION

Material trim: BTR 526 AUK Right hand-Colour: Saddle BTR 527 AUK Left hand-Colour: Saddle BTR 526 LOY Right hand-Colour: Grey BTR 527 LOY Left hand-Colour: Grey

Leather trim: MXC 7522 AUK Right hand-Colour: Saddle MXC 7523 AUK Left hand-Colour: Saddle MXC 7522 LPD Right hand-Colour: Light grey MXC 7523 LPD Left hand-Colour: Light grey

PROCEDURE

Refer to the workshop manual section 78.

07/12/94

NRR/76/36/94/EN

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

8A5E

SRO

78.10.01 Front armrest assembly-Renew 00.10 hour
