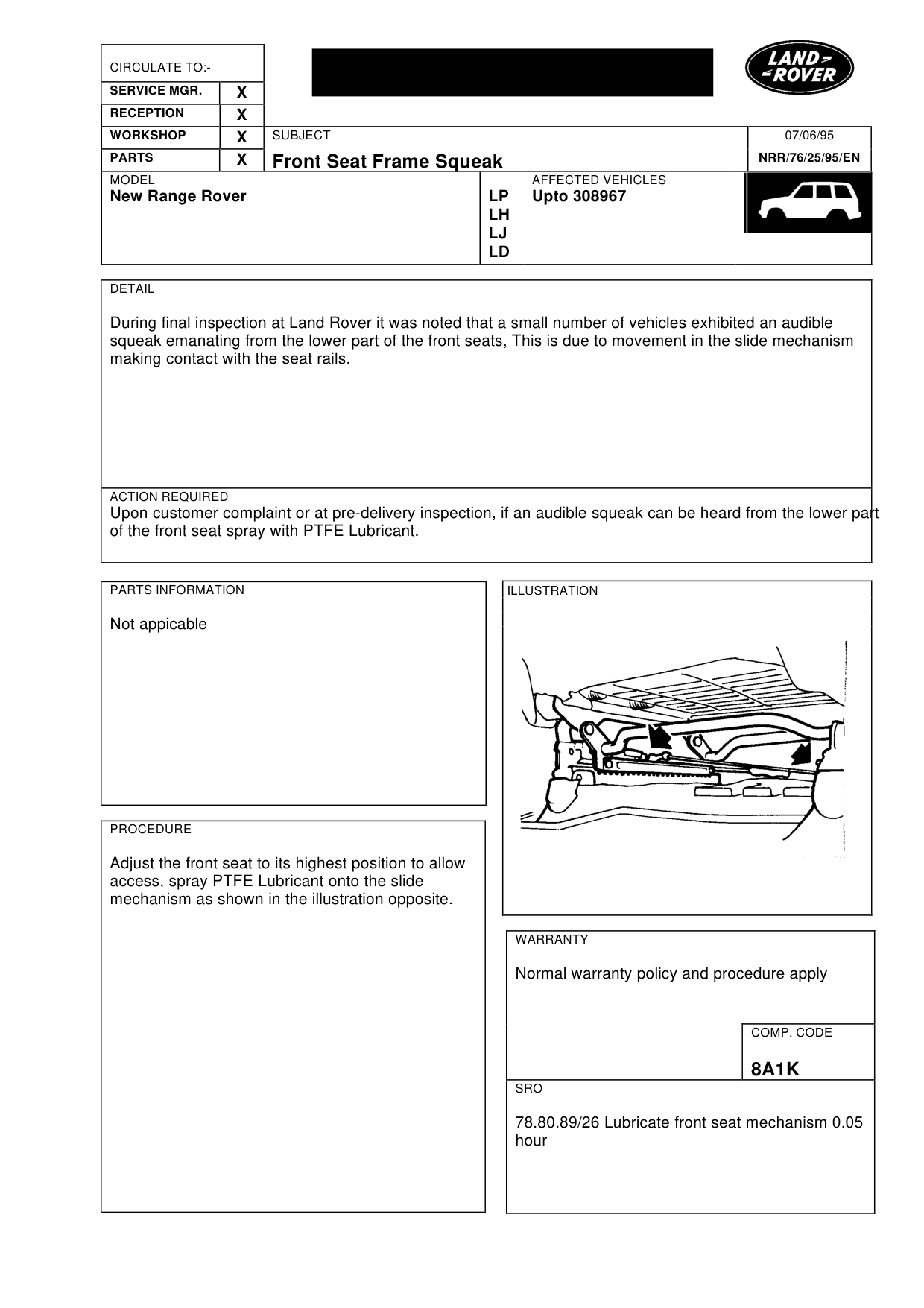

Front seat frame squeak

FRONT SEAT FRAME SQUEAK

Model

New Range Rover

Affected vehicles

Upto 308967

Date

1995-06-07

Reference

07/06/95

Bulletin text

Front Seat Frame Squeak

MODEL

New Range Rover

DETAIL

During final inspection at Land Rover it was noted that a small number of vehicles exhibited an audible squeak emanating from the lower part of the front seats, This is due to movement in the slide mechanism making contact with the seat rails.

ACTION REQUIRED

Upon customer complaint or at pre-delivery inspection, if an audible squeak can be heard from the lower part of the front seat spray with PTFE Lubricant.

PARTS INFORMATION

Not appicable

PROCEDURE

Adjust the front seat to its highest position to allow access, spray PTFE Lubricant onto the slide mechanism as shown in the illustration opposite.

07/06/95

NRR/76/25/95/EN

AFFECTED VEHICLES

LP Upto 308967 LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8A1K

SRO

78.80.89/26 Lubricate front seat mechanism 0.05 hour
