Manual seat height adjuster rattle

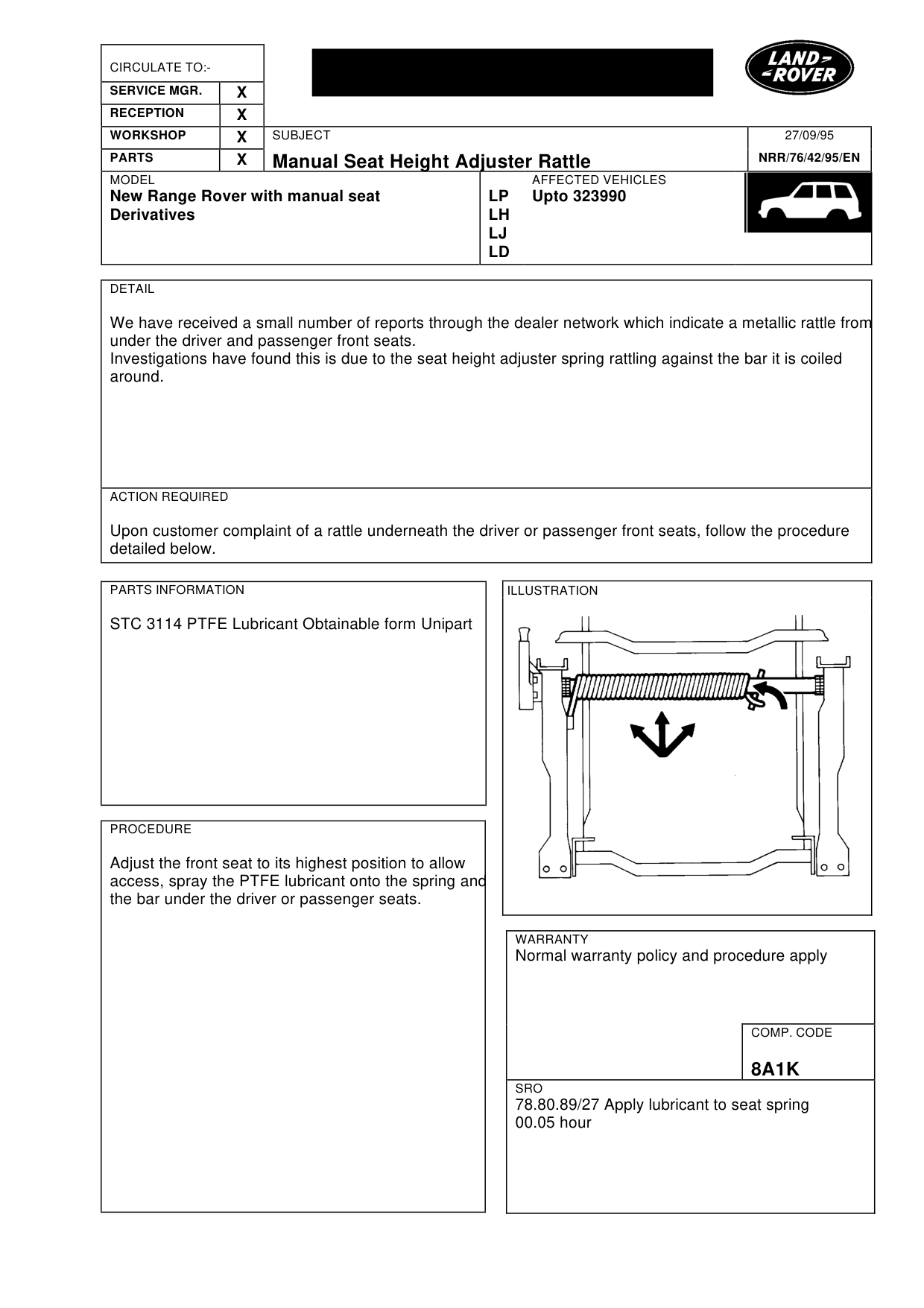

MANUAL SEAT HEIGHT ADJUSTER RATTLE

Model

New Range Rover with manual seat Derivatives

Affected vehicles

Upto 323990

Date

1995-09-27

Reference

27/09/95

Bulletin text

Manual Seat Height Adjuster Rattle

MODEL

New Range Rover with manual seat Derivatives

DETAIL

We have received a small number of reports through the dealer network which indicate a metallic rattle from under the driver and passenger front seats. Investigations have found this is due to the seat height adjuster spring rattling against the bar it is coiled around.

ACTION REQUIRED

Upon customer complaint of a rattle underneath the driver or passenger front seats, follow the procedure detailed below.

PARTS INFORMATION

STC 3114 PTFE Lubricant Obtainable form Unipart

PROCEDURE

Adjust the front seat to its highest position to allow access, spray the PTFE lubricant onto the spring and the bar under the driver or passenger seats.

27/09/95

NRR/76/42/95/EN

AFFECTED VEHICLES

LP Upto 323990 LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8A1K

SRO

78.80.89/27 Apply lubricant to seat spring 00.05 hour
