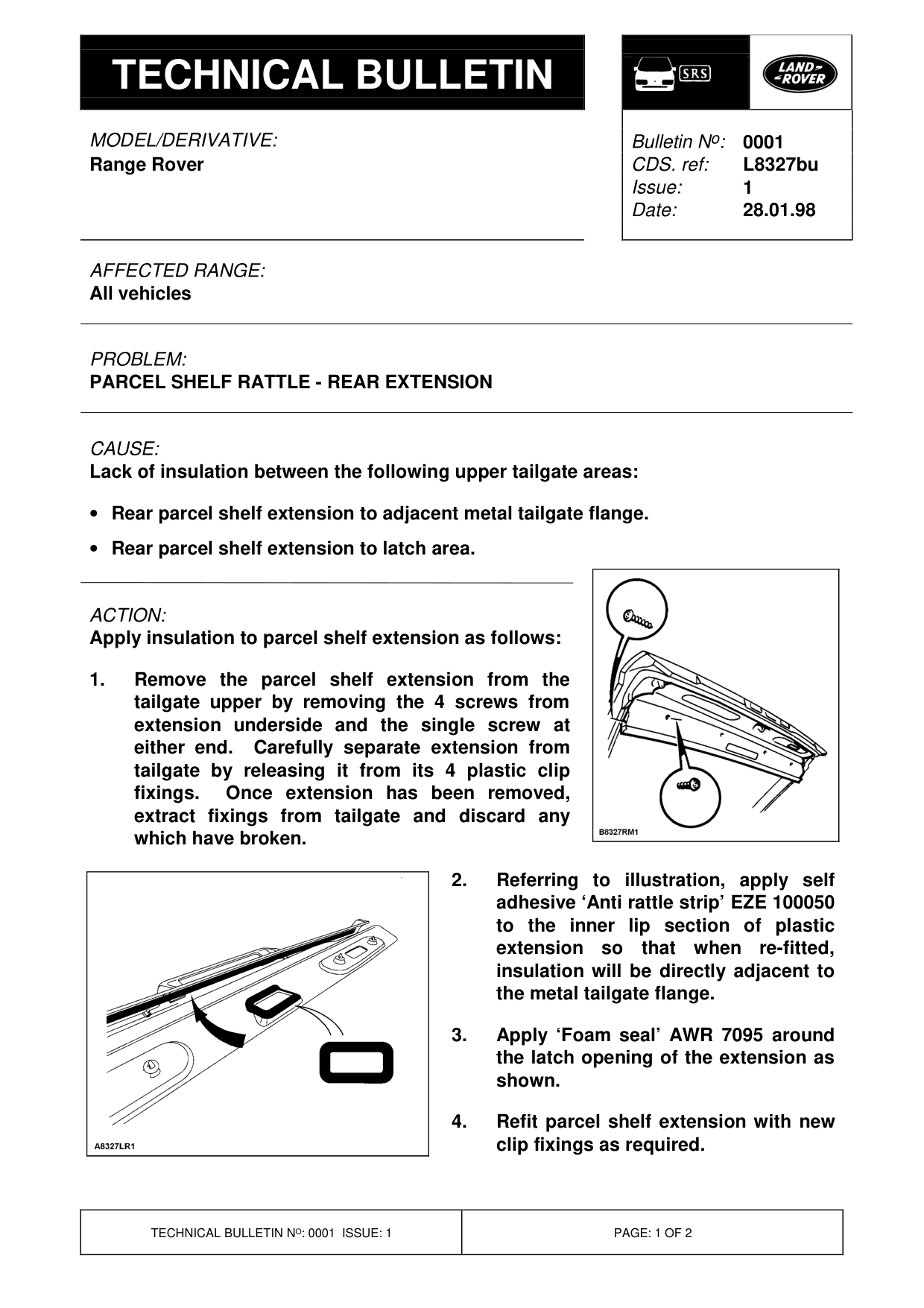

Parcel shelf rattle - rear extension

PARCEL SHELF RATTLE - REAR EXTENSION

Model

Range Rover

Affected vehicles

All vehicles

Date

1998-01-28

Reference

Bulletin 0001, CDS ref L8327bu

Bulletin text

Range Rover

AFFECTED RANGE:

All vehicles

PROBLEM:

PARCEL SHELF RATTLE - REAR EXTENSION

CAUSE:

Lack of insulation between the following upper tailgate areas:

• Rear parcel shelf extension to adjacent metal tailgate flange. • Rear parcel shelf extension to latch area.

ACTION:

Apply insulation to parcel shelf extension as follows:

1. Remove the parcel shelf extension from the tailgate upper by removing the 4 screws from extension underside and the single screw at either end. Carefully separate extension from tailgate by releasing it from its 4 plastic clip fixings. Once extension has been removed, extract fixings from tailgate and discard any which have broken.

Bulletin N o : 0001 L8327bu 1 28.01.98

2. Referring to illustration, apply self adhesive ‘Anti rattle strip’ EZE 100050 to the inner lip section of plastic extension so that when re-fitted, insulation will be directly adjacent to the metal tailgate flange.

3. Apply ‘Foam seal’ AWR 7095 around the latch opening of the extension as shown.

4. Refit parcel shelf extension with new clip fixings as required.

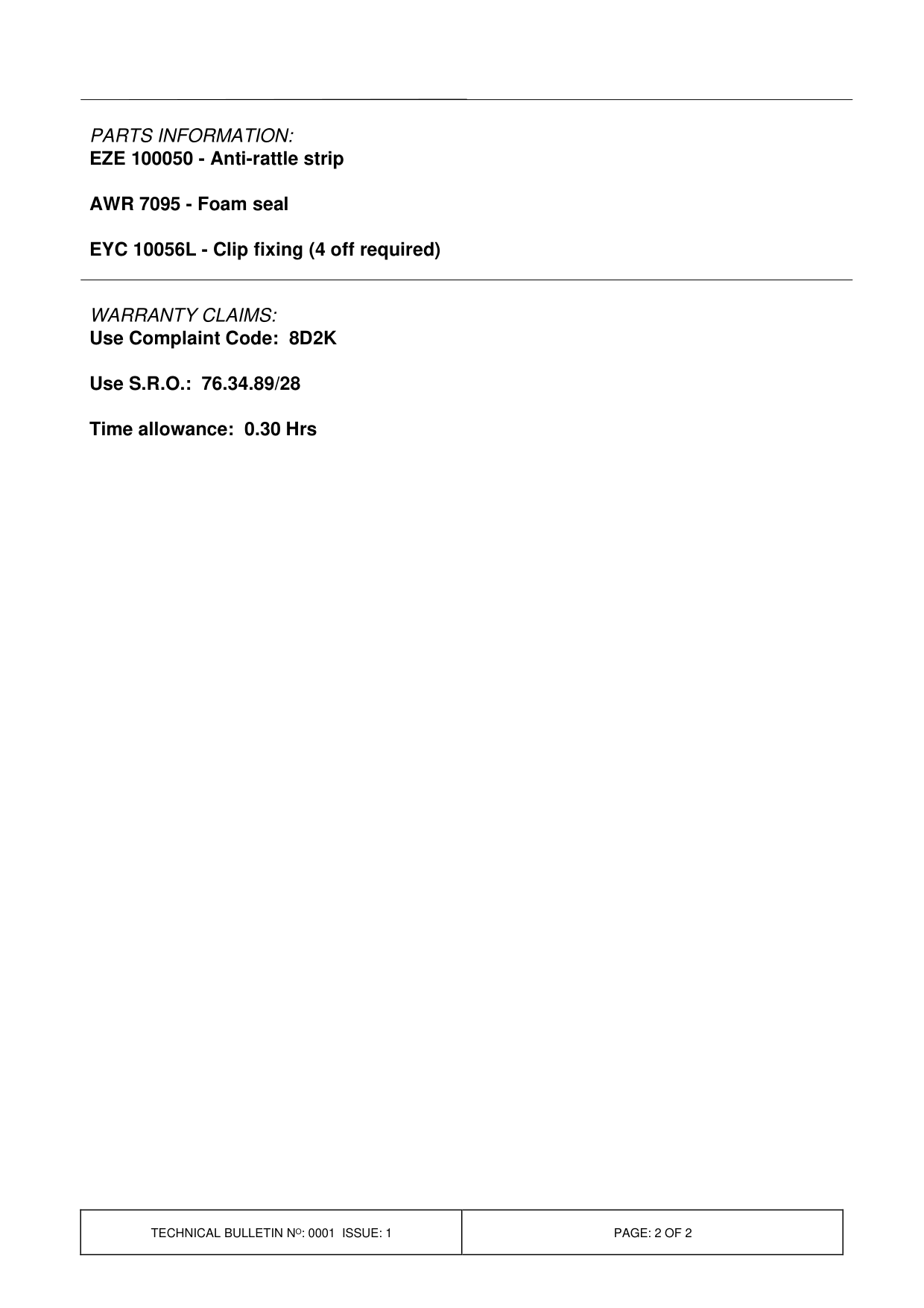

PARTS INFORMATION:

EZE 100050 - Anti-rattle strip

AWR 7095 - Foam seal

EYC 10056L - Clip fixing (4 off required)

WARRANTY CLAIMS: Use Complaint Code: 8D2K

Use S.R.O.: 76.34.89/28

Time allowance: 0.30 Hrs
