Rear ashtray squeak

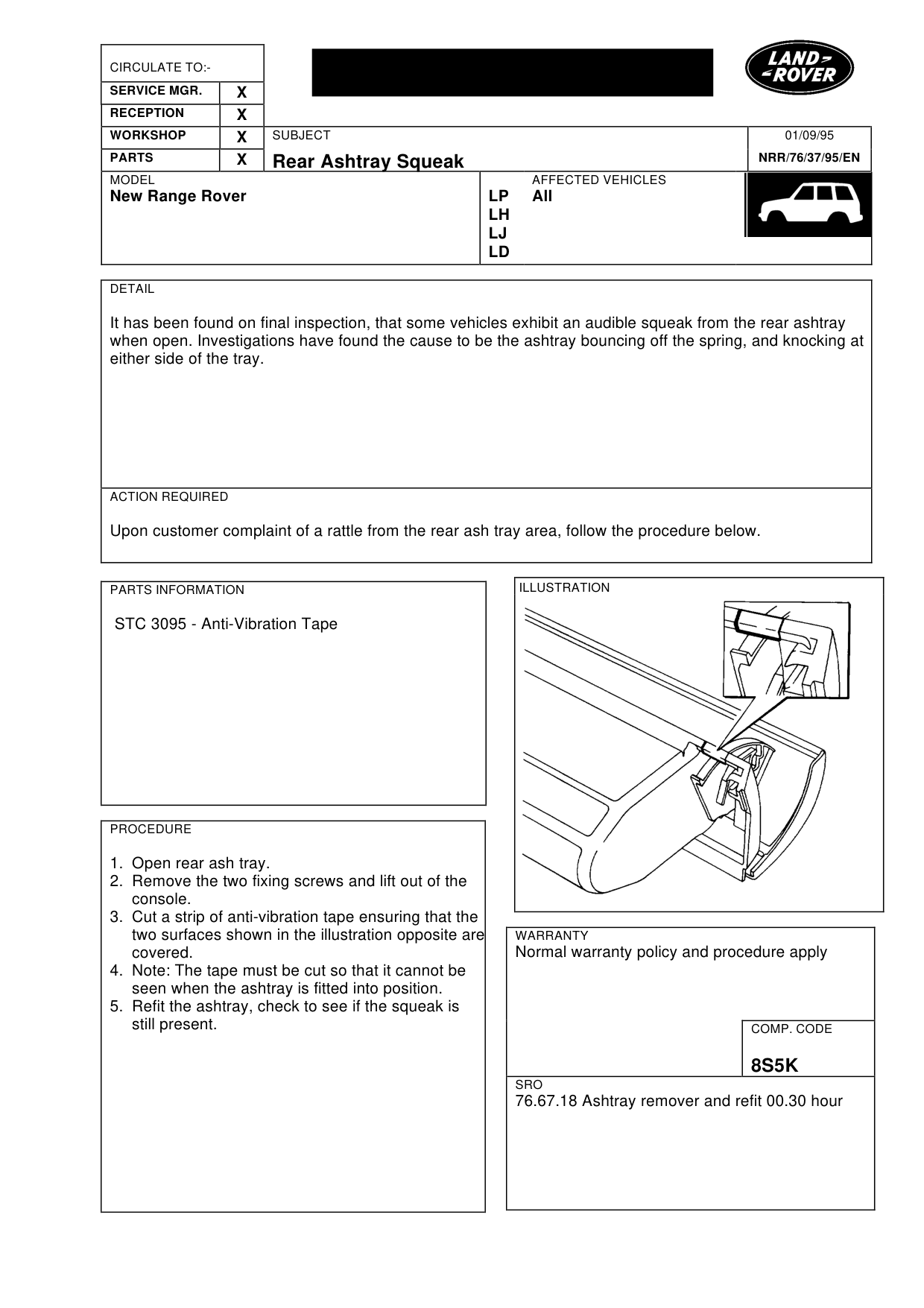

REAR ASHTRAY SQUEAK

Model

New Range Rover

Affected vehicles

All

Date

1995-09-01

Reference

01/09/95

Bulletin text

Rear Ashtray Squeak

MODEL

New Range Rover

DETAIL

It has been found on final inspection, that some vehicles exhibit an audible squeak from the rear ashtray when open. Investigations have found the cause to be the ashtray bouncing off the spring, and knocking at either side of the tray.

ACTION REQUIRED

Upon customer complaint of a rattle from the rear ash tray area, follow the procedure below.

PARTS INFORMATION

STC 3095 - Anti-Vibration Tape

PROCEDURE

1. Open rear ash tray. 2. Remove the two fixing screws and lift out of the console. 3. Cut a strip of anti-vibration tape ensuring that the two surfaces shown in the illustration opposite are covered. 4. Note: The tape must be cut so that it cannot be seen when the ashtray is fitted into position. 5. Refit the ashtray, check to see if the squeak is still present.

01/09/95

NRR/76/37/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8S5K

SRO

76.67.18 Ashtray remover and refit 00.30 hour
