Rear quarter glass trim finisher adrift

REAR QUARTER GLASS TRIM FINISHER ADRIFT

Model

New Range Rover

Affected vehicles

All

Date

1995-09-13

Reference

13/09/95

Bulletin text

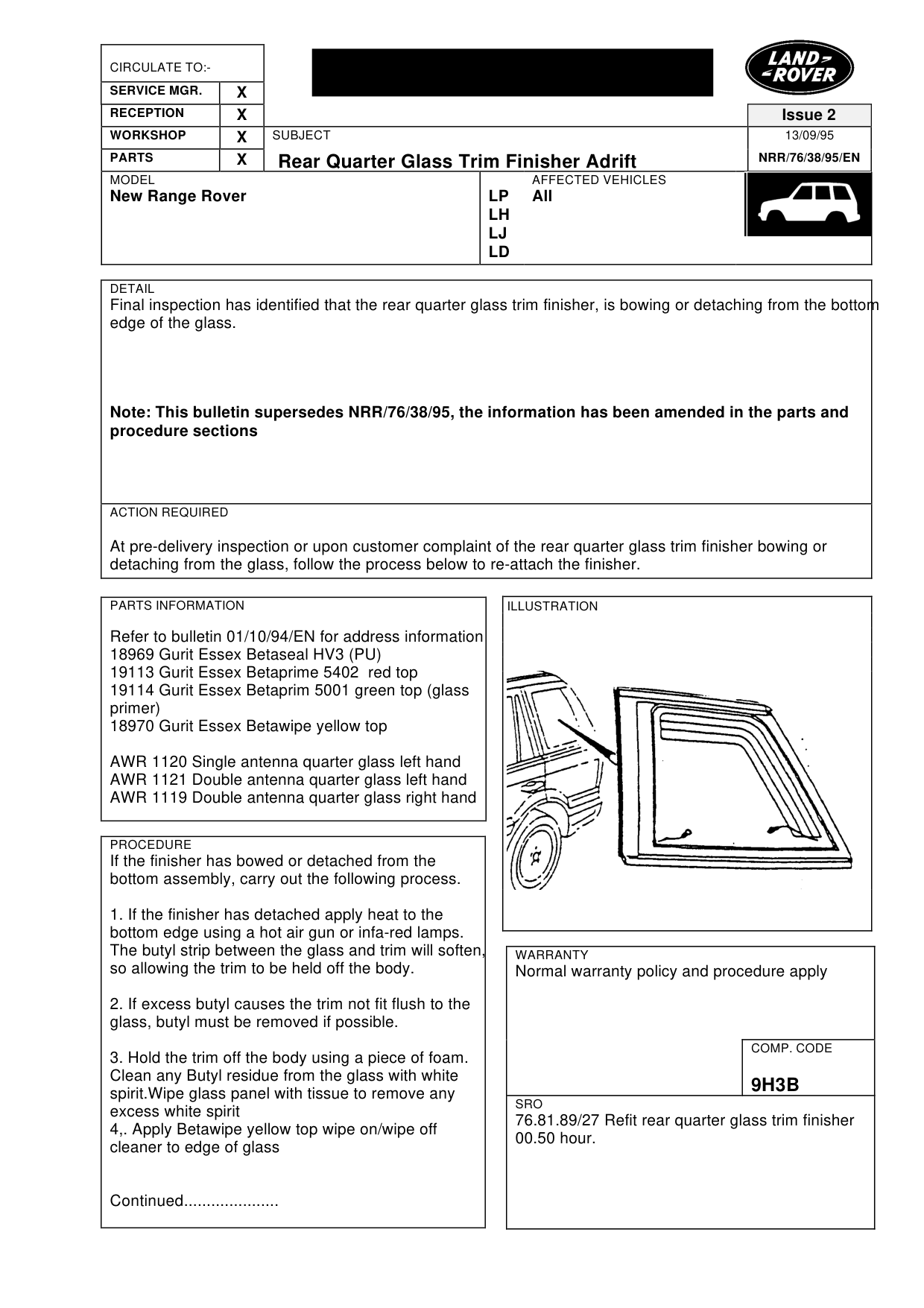

Rear Quarter Glass Trim Finisher Adrift

MODEL

New Range Rover

DETAIL

Final inspection has identified that the rear quarter glass trim finisher, is bowing or detaching from the bottom edge of the glass.

Note: This bulletin supersedes NRR/76/38/95, the information has been amended in the parts and procedure sections

ACTION REQUIRED

At pre-delivery inspection or upon customer complaint of the rear quarter glass trim finisher bowing or detaching from the glass, follow the process below to re-attach the finisher.

PARTS INFORMATION

Refer to bulletin 01/10/94/EN for address information 18969 Gurit Essex Betaseal HV3 (PU) 19113 Gurit Essex Betaprime 5402 red top 19114 Gurit Essex Betaprim 5001 green top (glass primer) 18970 Gurit Essex Betawipe yellow top

AWR 1120 Single antenna quarter glass left hand AWR 1121 Double antenna quarter glass left hand AWR 1119 Double antenna quarter glass right hand

PROCEDURE

If the finisher has bowed or detached from the bottom assembly, carry out the following process.

1. If the finisher has detached apply heat to the bottom edge using a hot air gun or infa-red lamps. The butyl strip between the glass and trim will soften, so allowing the trim to be held off the body.

2. If excess butyl causes the trim not fit flush to the glass, butyl must be removed if possible.

3. Hold the trim off the body using a piece of foam. Clean any Butyl residue from the glass with white spirit.Wipe glass panel with tissue to remove any excess white spirit 4,. Apply Betawipe yellow top wipe on/wipe off cleaner to edge of glass

Continued.....................

Issue 2 13/09/95

NRR/76/38/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

9H3B

SRO

76.81.89/27 Refit rear quarter glass trim finisher 00.50 hour.

Rear Quarter Glass Trim Finisher Adrift

MODEL

New Range Rover

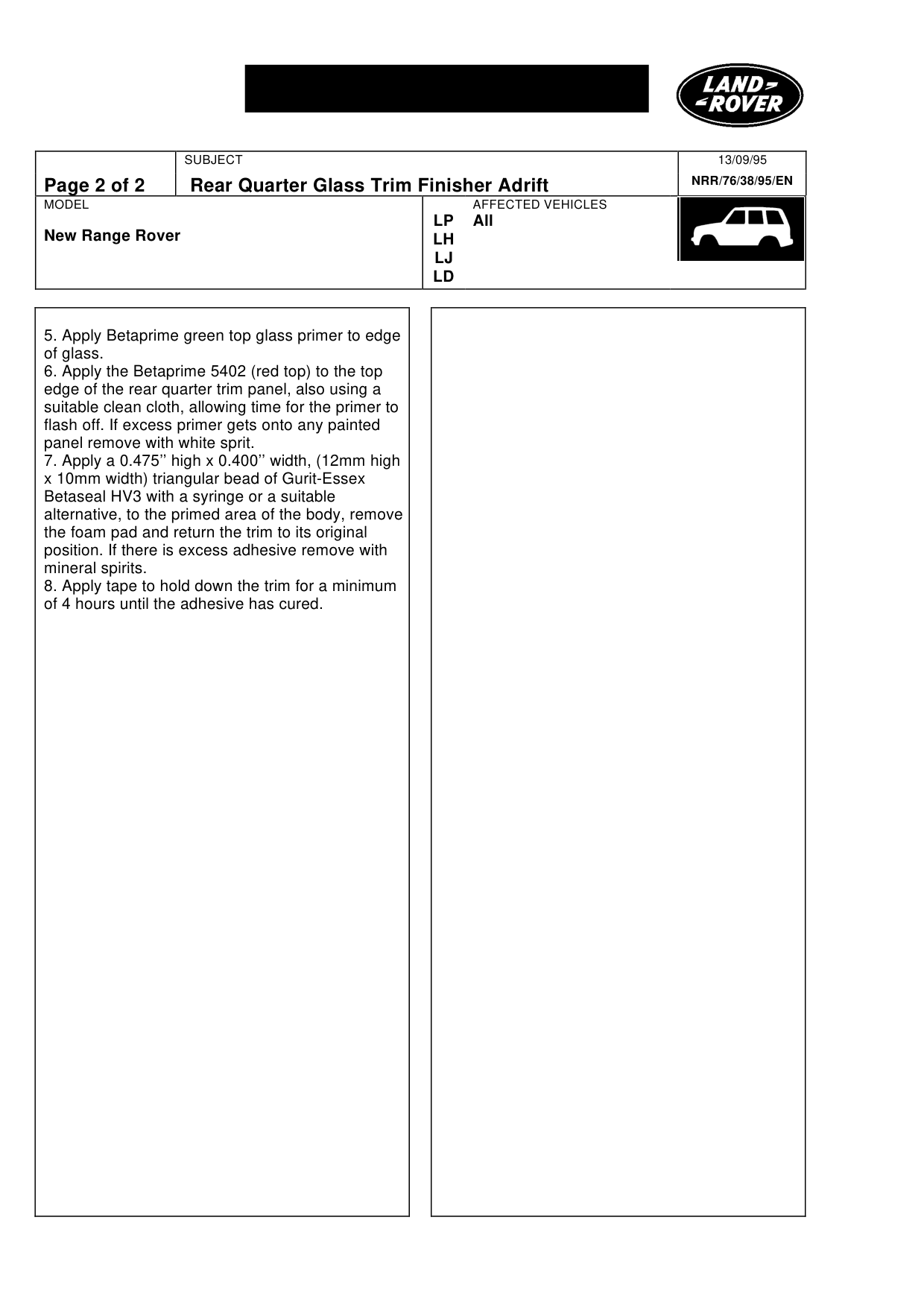

5. Apply Betaprime green top glass primer to edge of glass. 6. Apply the Betaprime 5402 (red top) to the top edge of the rear quarter trim panel, also using a suitable clean cloth, allowing time for the primer to flash off. If excess primer gets onto any painted panel remove with white sprit. 7. Apply a 0.475’’ high x 0.400’’ width, (12mm high x 10mm width) triangular bead of Gurit-Essex Betaseal HV3 with a syringe or a suitable alternative, to the primed area of the body, remove the foam pad and return the trim to its original position. If there is excess adhesive remove with mineral spirits. 8. Apply tape to hold down the trim for a minimum of 4 hours until the adhesive has cured.
