Side door creak on opening

SIDE DOOR CREAK ON OPENING

Model

New Range Rover

Affected vehicles

300000 to 325560

Date

1995-11-01

Reference

01/11/95

Bulletin text

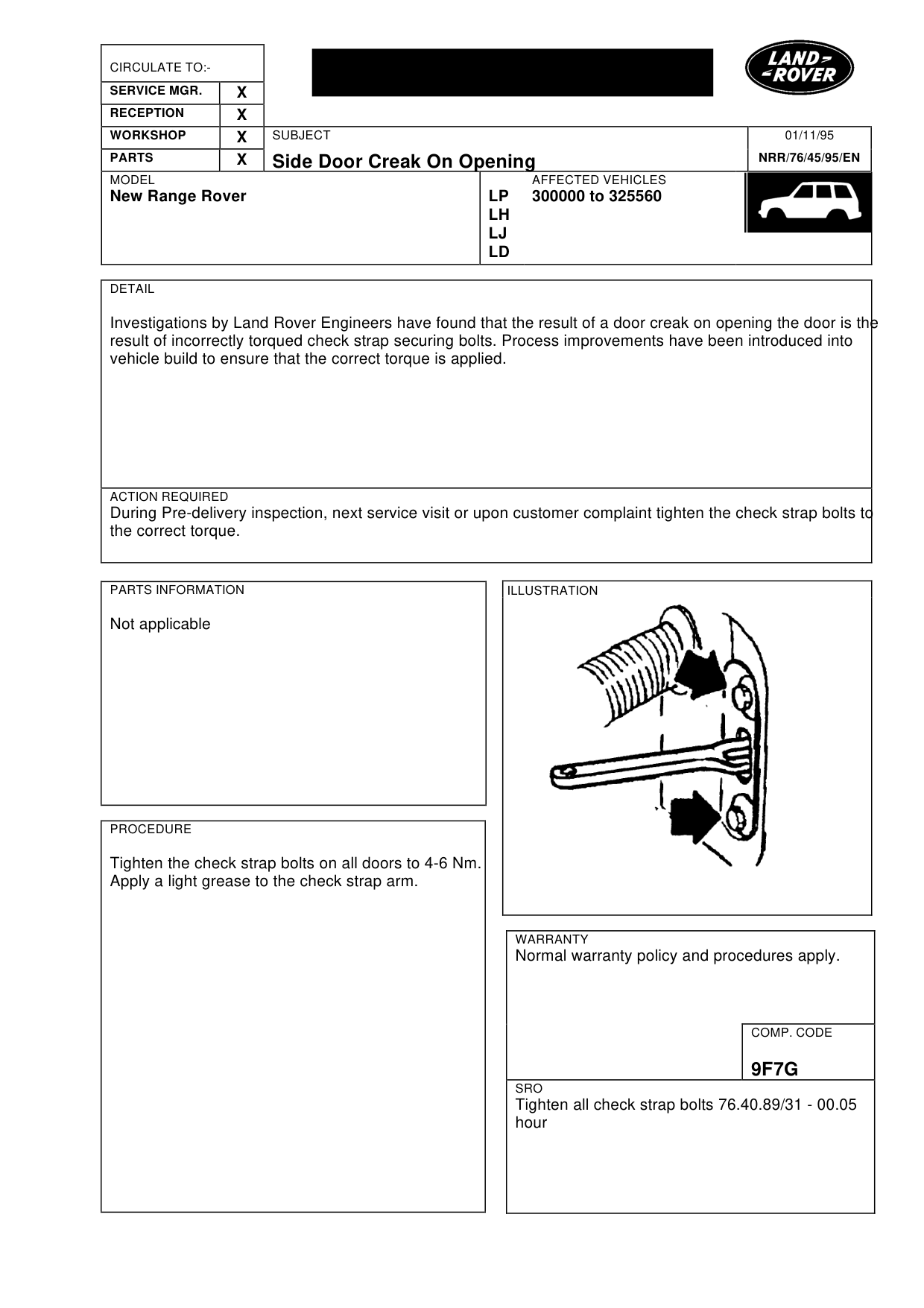

Side Door Creak On Opening

MODEL

New Range Rover

DETAIL

Investigations by Land Rover Engineers have found that the result of a door creak on opening the door is the result of incorrectly torqued check strap securing bolts. Process improvements have been introduced into vehicle build to ensure that the correct torque is applied.

ACTION REQUIRED

During Pre-delivery inspection, next service visit or upon customer complaint tighten the check strap bolts to the correct torque.

PARTS INFORMATION

Not applicable

PROCEDURE

Tighten the check strap bolts on all doors to 4-6 Nm. Apply a light grease to the check strap arm.

01/11/95

NRR/76/45/95/EN

AFFECTED VEHICLES

LP 300000 to 325560 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

9F7G

SRO

Tighten all check strap bolts 76.40.89/31 - 00.05 hour
