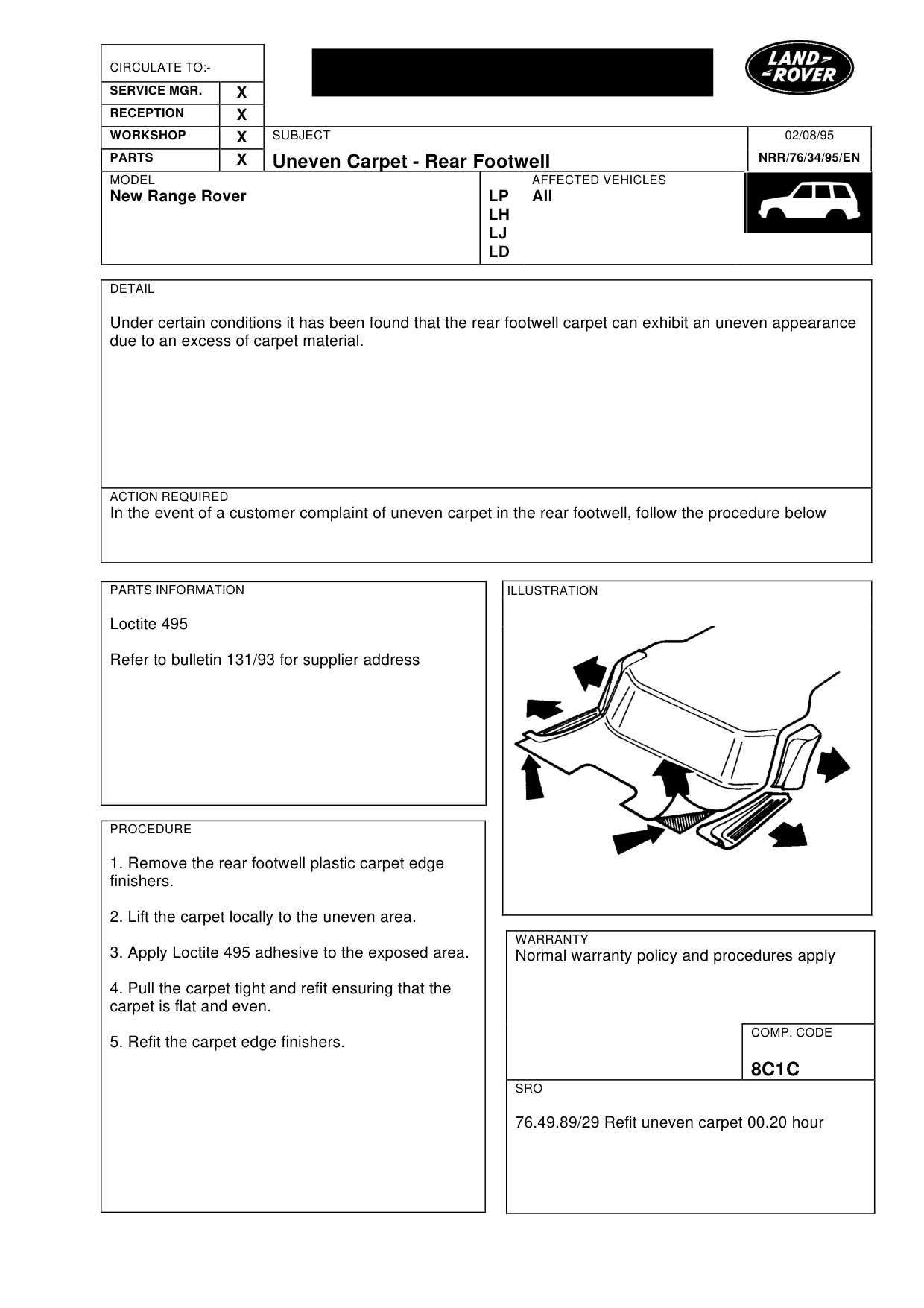

Uneven carpet-rear footwell

UNEVEN CARPET-REAR FOOTWELL

Model

New Range Rover

Affected vehicles

All

Date

1995-08-02

Reference

02/08/95

Bulletin text

Uneven Carpet - Rear Footwell

MODEL

New Range Rover

DETAIL

Under certain conditions it has been found that the rear footwell carpet can exhibit an uneven appearance due to an excess of carpet material.

ACTION REQUIRED

In the event of a customer complaint of uneven carpet in the rear footwell, follow the procedure below

PARTS INFORMATION

Loctite 495

Refer to bulletin 131/93 for supplier address

PROCEDURE

1. Remove the rear footwell plastic carpet edge finishers.

2. Lift the carpet locally to the uneven area.

3. Apply Loctite 495 adhesive to the exposed area.

4. Pull the carpet tight and refit ensuring that the carpet is flat and even.

5. Refit the carpet edge finishers.

02/08/95

NRR/76/34/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

8C1C

SRO

76.49.89/29 Refit uneven carpet 00.20 hour
