VEHICLE TOOLS JACK-RATTLE

Model

New Range Rover

Affected vehicles

Upot 313500

Date

1995-05-30

Reference

30/05/95

Bulletin text

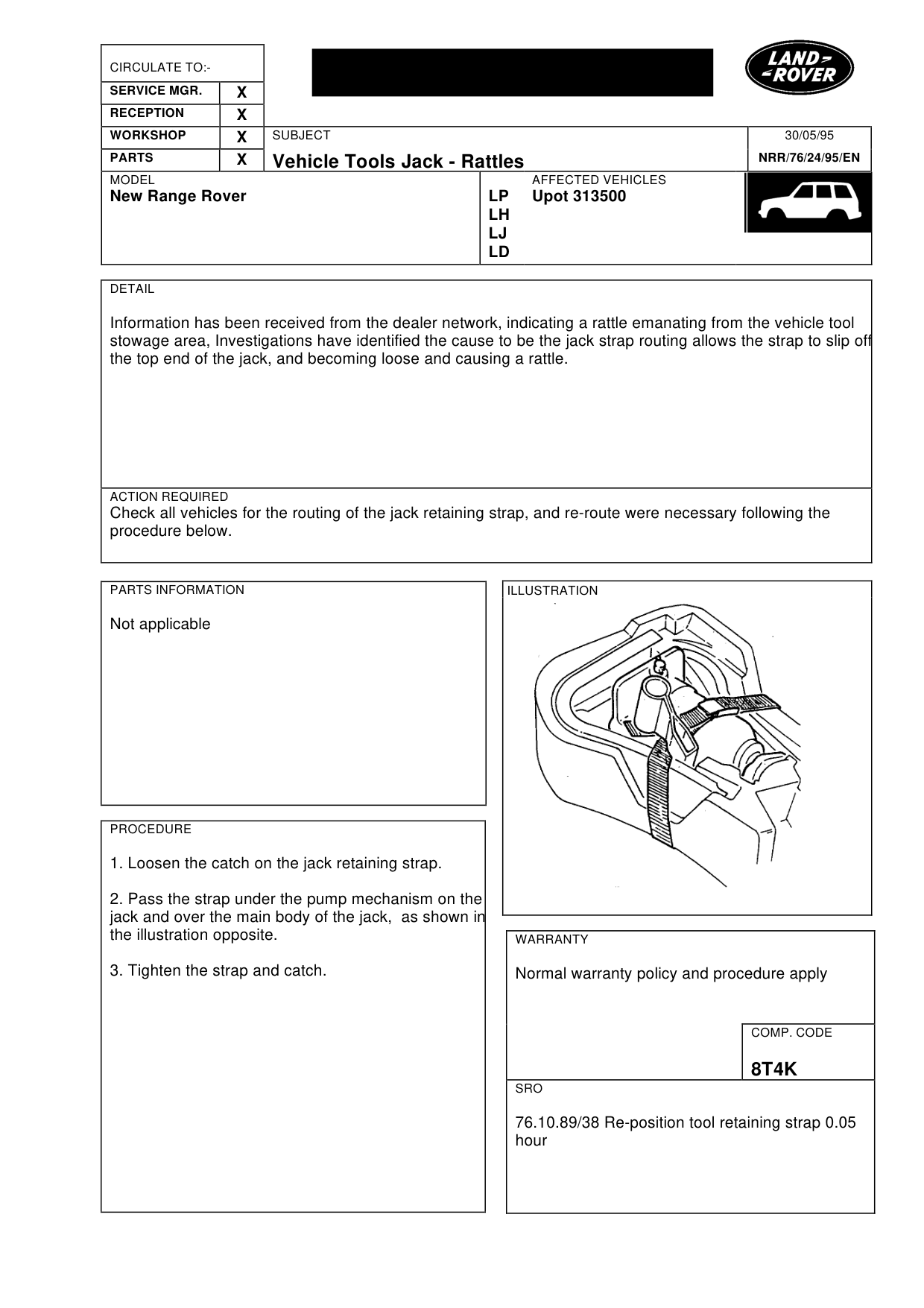

Vehicle Tools Jack - Rattles

MODEL

New Range Rover

DETAIL

Information has been received from the dealer network, indicating a rattle emanating from the vehicle tool stowage area, Investigations have identified the cause to be the jack strap routing allows the strap to slip off the top end of the jack, and becoming loose and causing a rattle.

ACTION REQUIRED

Check all vehicles for the routing of the jack retaining strap, and re-route were necessary following the procedure below.

PARTS INFORMATION

Not applicable

PROCEDURE

1. Loosen the catch on the jack retaining strap.

2. Pass the strap under the pump mechanism on the jack and over the main body of the jack, as shown in the illustration opposite.

3. Tighten the strap and catch.

30/05/95

NRR/76/24/95/EN

AFFECTED VEHICLES

LP Upot 313500 LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8T4K

SRO

76.10.89/38 Re-position tool retaining strap 0.05 hour
