Water ingress at tailgate - aperture seal

WATER INGRESS AT TAILGATE - APERTURE SEAL

Model

Range Rover

Affected vehicles

All vehicles

Date

1998-03-18

Reference

Bulletin 0011, CDS ref L8403bu

Bulletin text

Range Rover

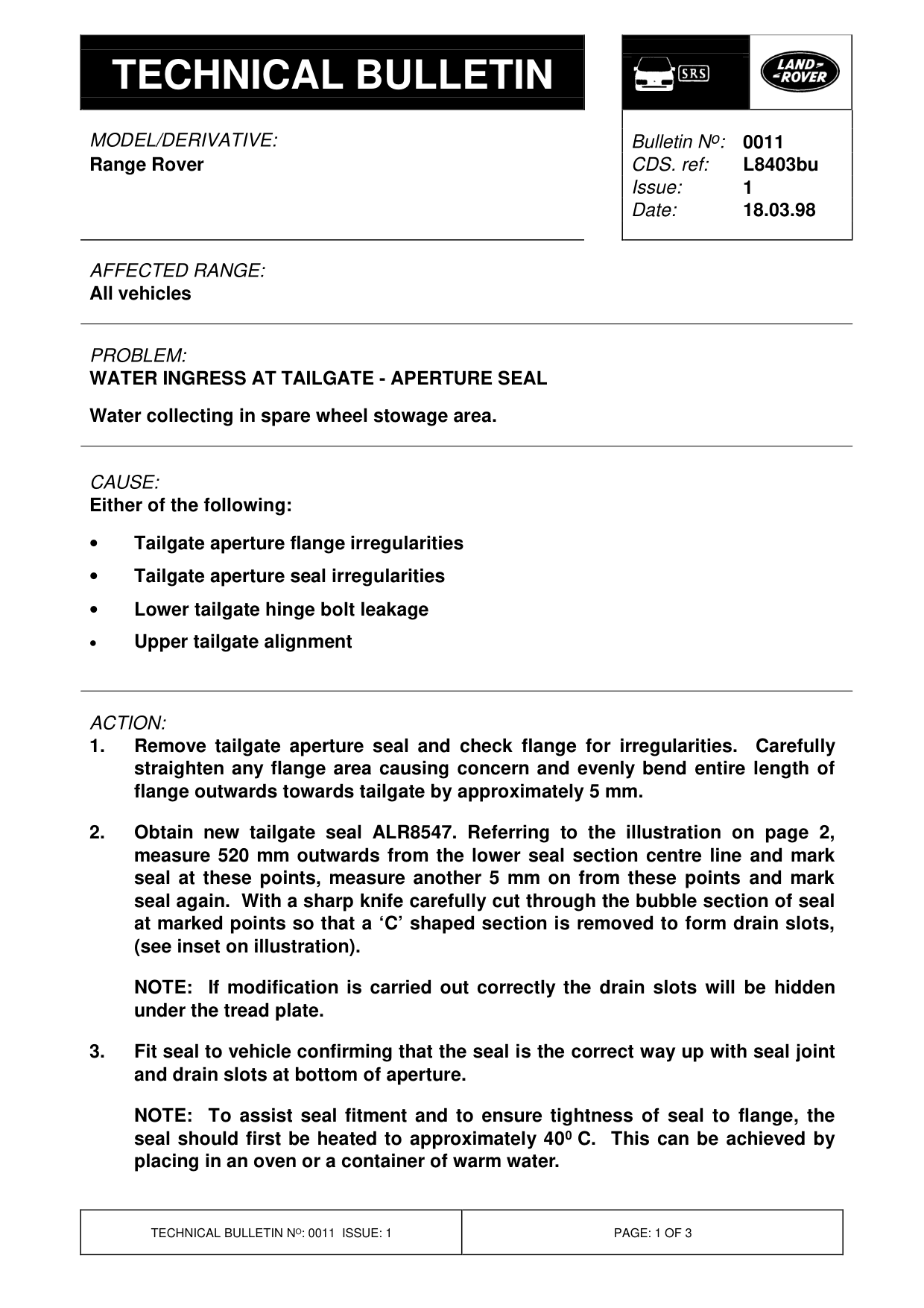

AFFECTED RANGE:

All vehicles

PROBLEM:

WATER INGRESS AT TAILGATE - APERTURE SEAL

Water collecting in spare wheel stowage area.

CAUSE:

Either of the following:

Tailgate aperture flange irregularities • Tailgate aperture seal irregularities • Lower tailgate hinge bolt leakage • Upper tailgate alignment •

ACTION:

1. Remove tailgate aperture seal and check flange for irregularities. Carefully straighten any flange area causing concern and evenly bend entire length of flange outwards towards tailgate by approximately 5 mm.

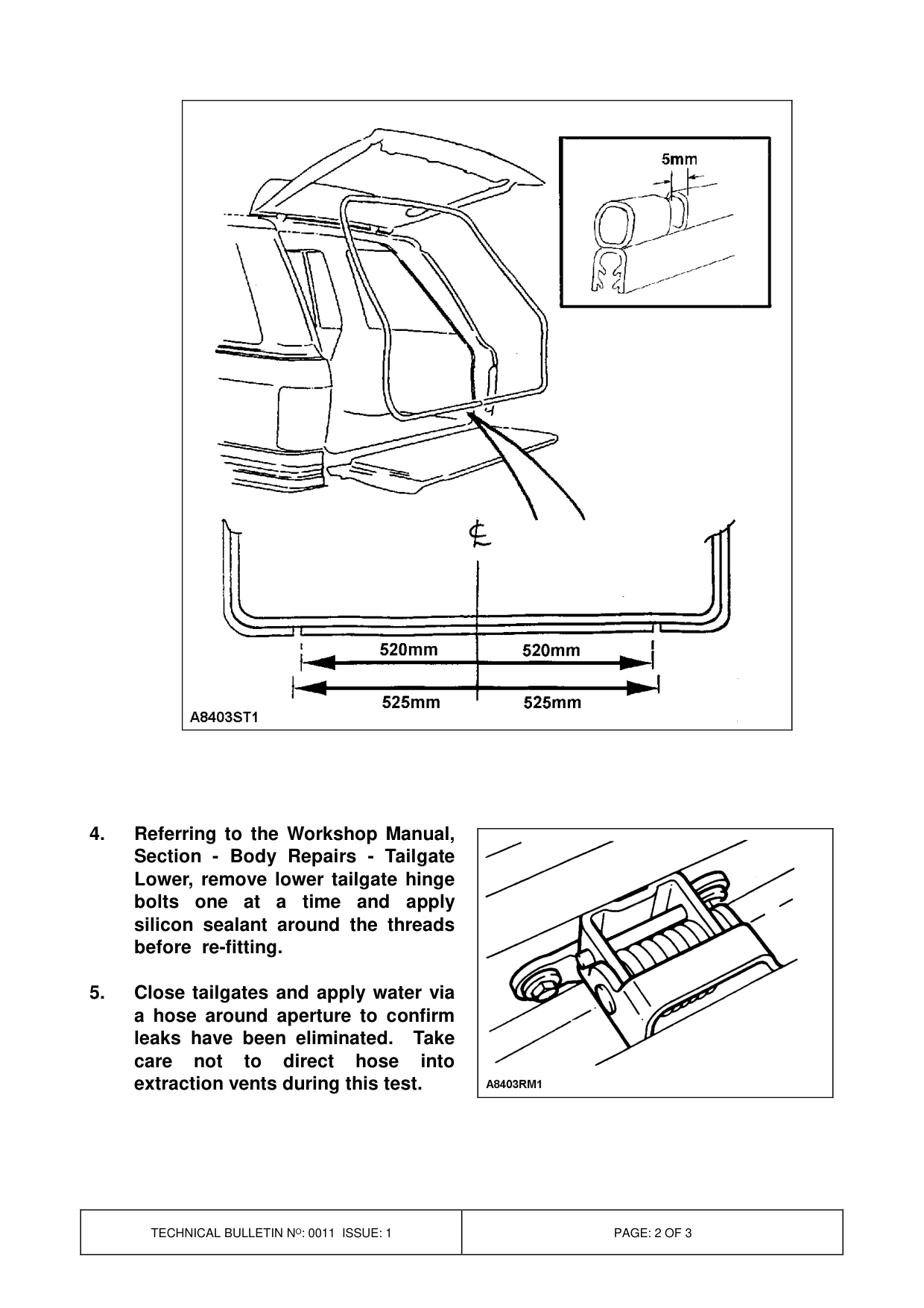

2. Obtain new tailgate seal ALR8547. Referring to the illustration on page 2, measure 520 mm outwards from the lower seal section centre line and mark seal at these points, measure another 5 mm on from these points and mark seal again. With a sharp knife carefully cut through the bubble section of seal at marked points so that a ‘C’ shaped section is removed to form drain slots, (see inset on illustration).

NOTE: If modification is carried out correctly the drain slots will be hidden under the tread plate.

3. Fit seal to vehicle confirming that the seal is the correct way up with seal joint and drain slots at bottom of aperture.

NOTE: To assist seal fitment and to ensure tightness of seal to flange, the seal should first be heated to approximately 40 0 C. This can be achieved by placing in an oven or a container of warm water.

Bulletin N o : 0011 L8403bu 1 18.03.98

4. Referring to the Workshop Manual, Section - Body Repairs - Tailgate Lower, remove lower tailgate hinge bolts one at a time and apply silicon sealant around the threads before re-fitting.

5. Close tailgates and apply water via a hose around aperture to confirm leaks have been eliminated. Take care not extraction vents during this test.

to direct hose into

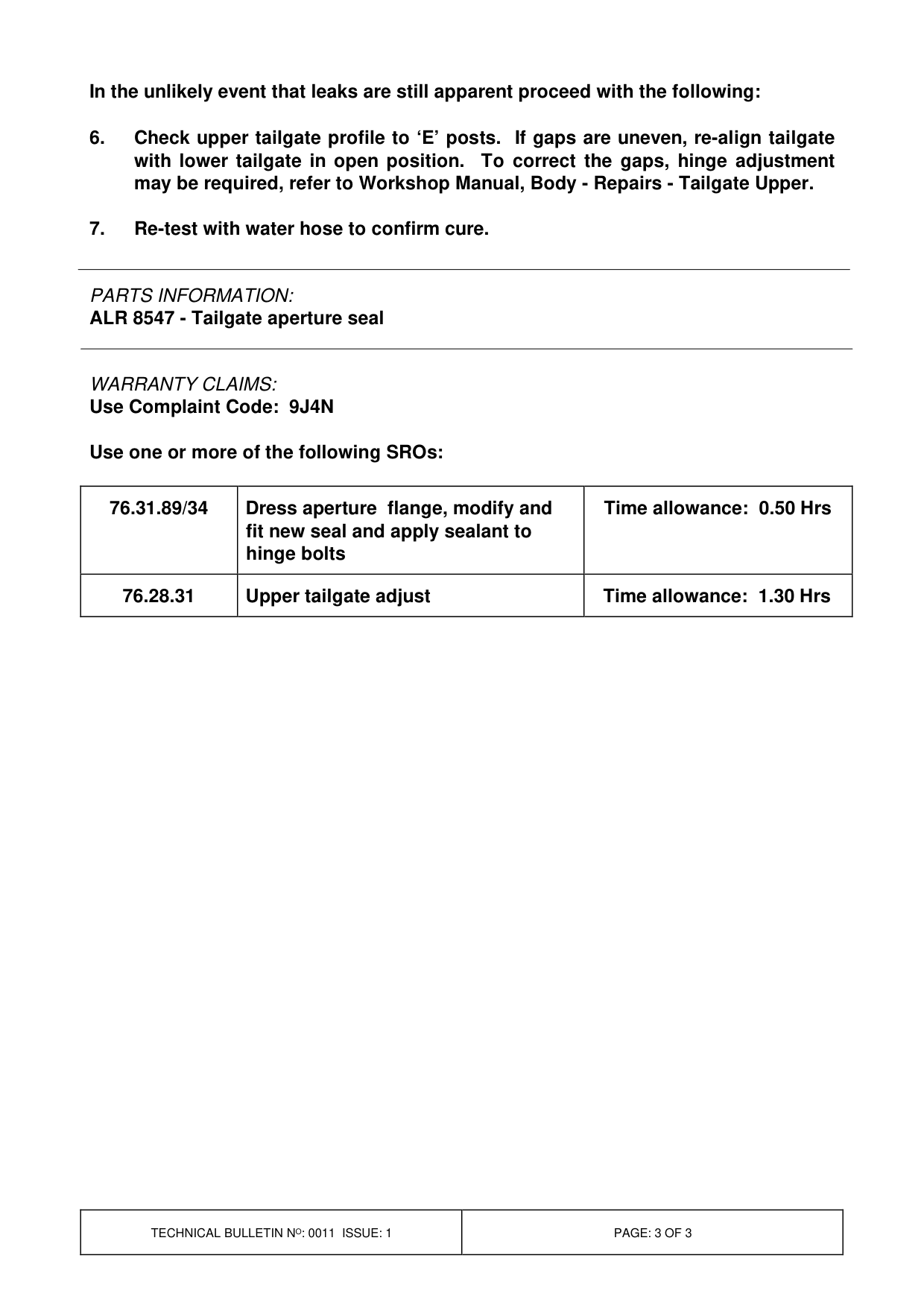

In the unlikely event that leaks are still apparent proceed with the following:

6. Check upper tailgate profile to ‘E’ posts. If gaps are uneven, re-align tailgate with lower tailgate in open position. To correct the gaps, hinge adjustment may be required, refer to Workshop Manual, Body - Repairs - Tailgate Upper.

7. Re-test with water hose to confirm cure.

PARTS INFORMATION:

ALR 8547 - Tailgate aperture seal

WARRANTY CLAIMS: Use Complaint Code: 9J4N

Use one or more of the following SROs:

76.31.89/34 Dress aperture flange, modify and fit new seal and apply sealant to hinge bolts

76.28.31 Upper tailgate adjust

Time allowance: 0.50 Hrs

Time allowance: 1.30 Hrs
