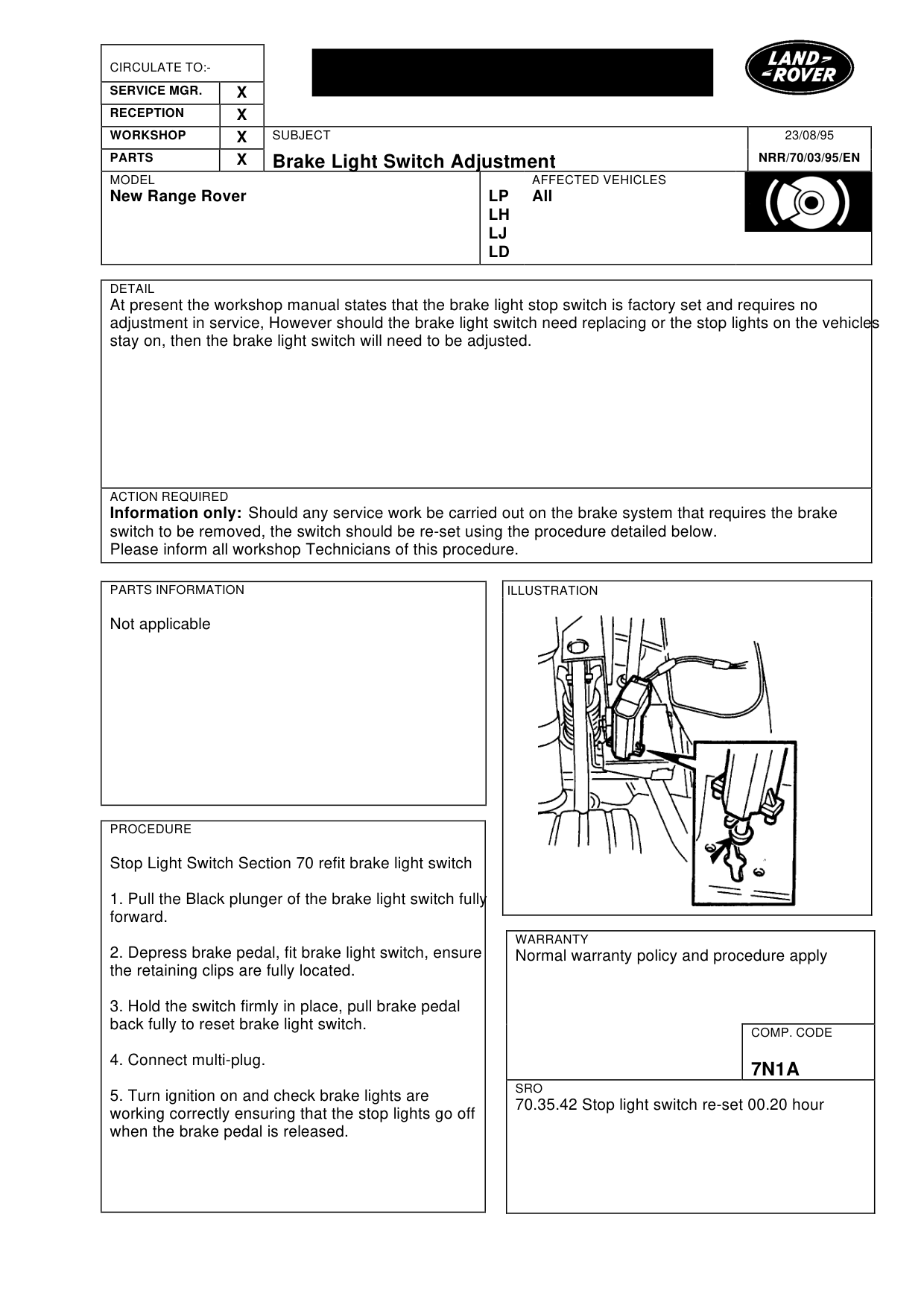

Brake light switch adjustment

BRAKE LIGHT SWITCH ADJUSTMENT

Model

New Range Rover

Affected vehicles

All

Date

1995-08-23

Reference

23/08/95

Bulletin text

Brake Light Switch Adjustment

MODEL

New Range Rover

DETAIL

At present the workshop manual states that the brake light stop switch is factory set and requires no adjustment in service, However should the brake light switch need replacing or the stop lights on the vehicles stay on, then the brake light switch will need to be adjusted.

ACTION REQUIRED

Information only: Should any service work be carried out on the brake system that requires the brake switch to be removed, the switch should be re-set using the procedure detailed below. Please inform all workshop Technicians of this procedure.

PARTS INFORMATION

Not applicable

PROCEDURE

Stop Light Switch Section 70 refit brake light switch

1. Pull the Black plunger of the brake light switch fully forward.

2. Depress brake pedal, fit brake light switch, ensure the retaining clips are fully located.

3. Hold the switch firmly in place, pull brake pedal back fully to reset brake light switch.

4. Connect multi-plug.

5. Turn ignition on and check brake lights are working correctly ensuring that the stop lights go off when the brake pedal is released.

23/08/95

NRR/70/03/95/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

7N1A

SRO

70.35.42 Stop light switch re-set 00.20 hour
