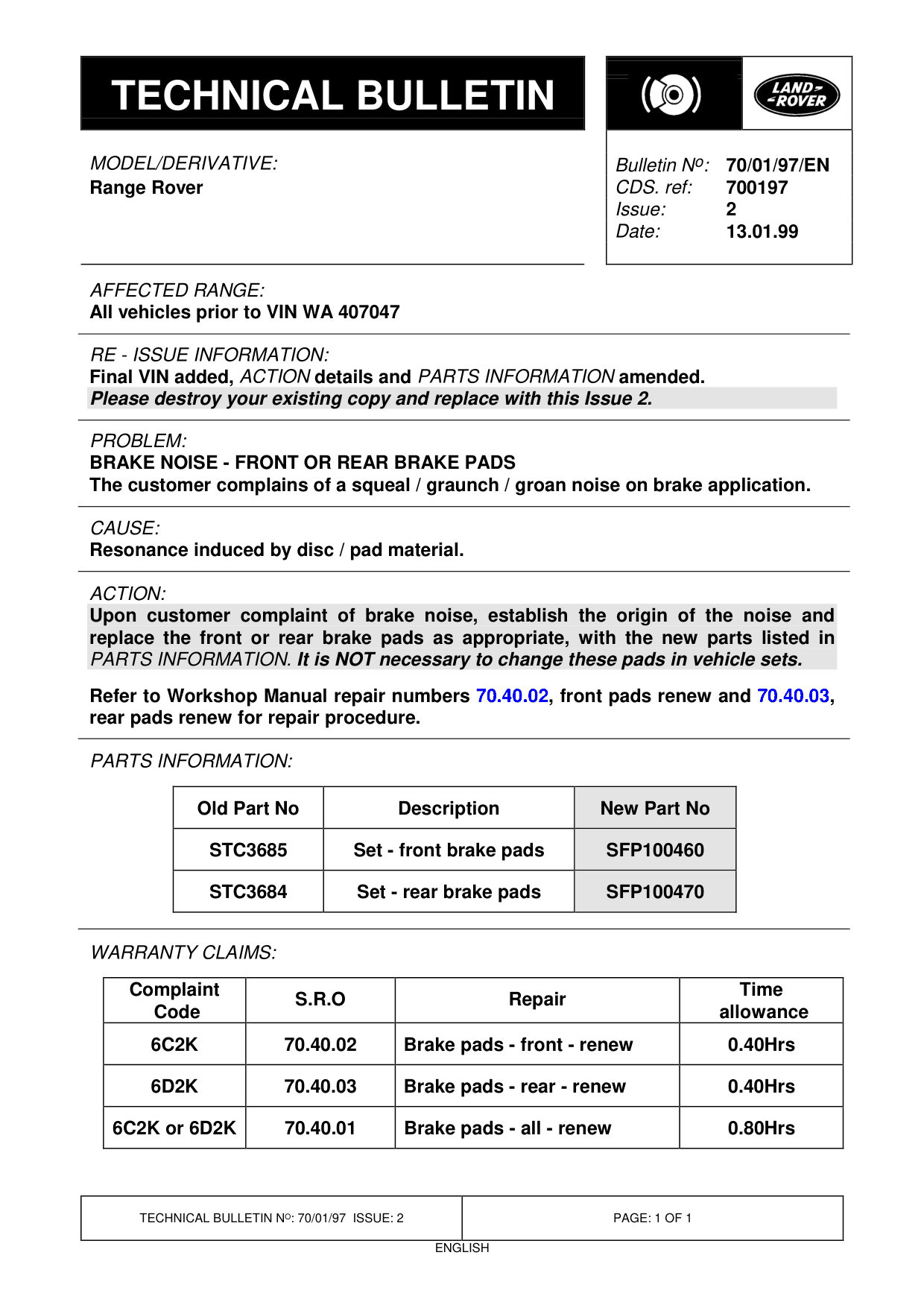

BRAKE NOISE - FRONT OR REAR BRAKE PADS

Model

Range Rover

Affected vehicles

All vehicles prior to VIN WA 407047 RE - ISSUE INFORMATION: Final VIN added, ACTION details and PARTS INFORMATION amended. Please destroy your existing copy and replace with this Issue 2.

Date

1999-01-13

Reference

Bulletin 70, CDS ref 700197

Bulletin text

Range Rover

AFFECTED RANGE:

All vehicles prior to VIN WA 407047

RE - ISSUE INFORMATION: Final VIN added, ACTION details and PARTS INFORMATION amended. Please destroy your existing copy and replace with this Issue 2.

PROBLEM:

BRAKE NOISE - FRONT OR REAR BRAKE PADS The customer complains of a squeal / graunch / groan noise on brake application.

CAUSE:

Resonance induced by disc / pad material.

ACTION:

Upon customer complaint of brake noise, establish the origin of the noise and replace the front or rear brake pads as appropriate, with the new parts listed in PARTS INFORMATION. It is NOT necessary to change these pads in vehicle sets. Refer to Workshop Manual repair numbers 70.40.02 , front pads renew and 70.40.03 , rear pads renew for repair procedure.

PARTS INFORMATION:

Old Part No Description

STC3685 Set - front brake pads

STC3684 Set - rear brake pads

WARRANTY CLAIMS:

Complaint S.R.O Code 6C2K 70.40.02 Brake pads - front - renew

6D2K 70.40.03 Brake pads - rear - renew

6C2K or 6D2K 70.40.01 Brake pads - all - renew

Bulletin N o : 70/01/97/EN 700197 2 13.01.99

New Part No

SFP100460

SFP100470

Time Repair allowance 0.40Hrs

0.40Hrs

0.80Hrs
