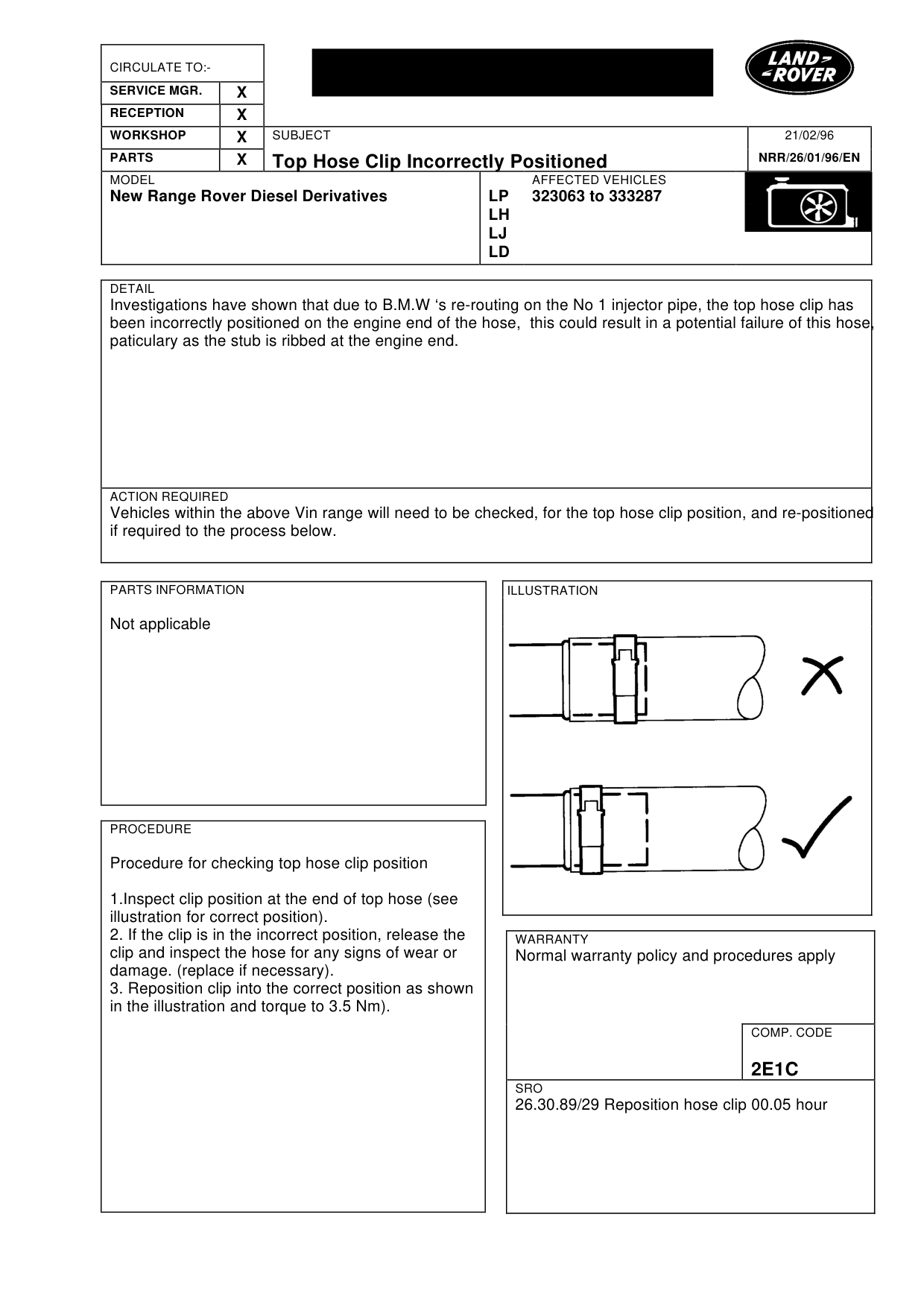

Top hose incorrectly positioned

TOP HOSE INCORRECTLY POSITIONED

Model

New Range Rover Diesel Derivatives

Affected vehicles

323063 to 333287

Date

1996-02-21

Reference

21/02/96

Bulletin text

Top Hose Clip Incorrectly Positioned

MODEL

New Range Rover Diesel Derivatives

DETAIL

Investigations have shown that due to B.M.W ‘s re-routing on the No 1 injector pipe, the top hose clip has been incorrectly positioned on the engine end of the hose, this could result in a potential failure of this hose, paticulary as the stub is ribbed at the engine end.

ACTION REQUIRED

Vehicles within the above Vin range will need to be checked, for the top hose clip position, and re-positioned if required to the process below.

PARTS INFORMATION

Not applicable

PROCEDURE

Procedure for checking top hose clip position

1.Inspect clip position at the end of top hose (see illustration for correct position). 2. If the clip is in the incorrect position, release the clip and inspect the hose for any signs of wear or damage. (replace if necessary). 3. Reposition clip into the correct position as shown in the illustration and torque to 3.5 Nm).

21/02/96

NRR/26/01/96/EN

AFFECTED VEHICLES

LP 323063 to 333287 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

2E1C

SRO

26.30.89/29 Reposition hose clip 00.05 hour
