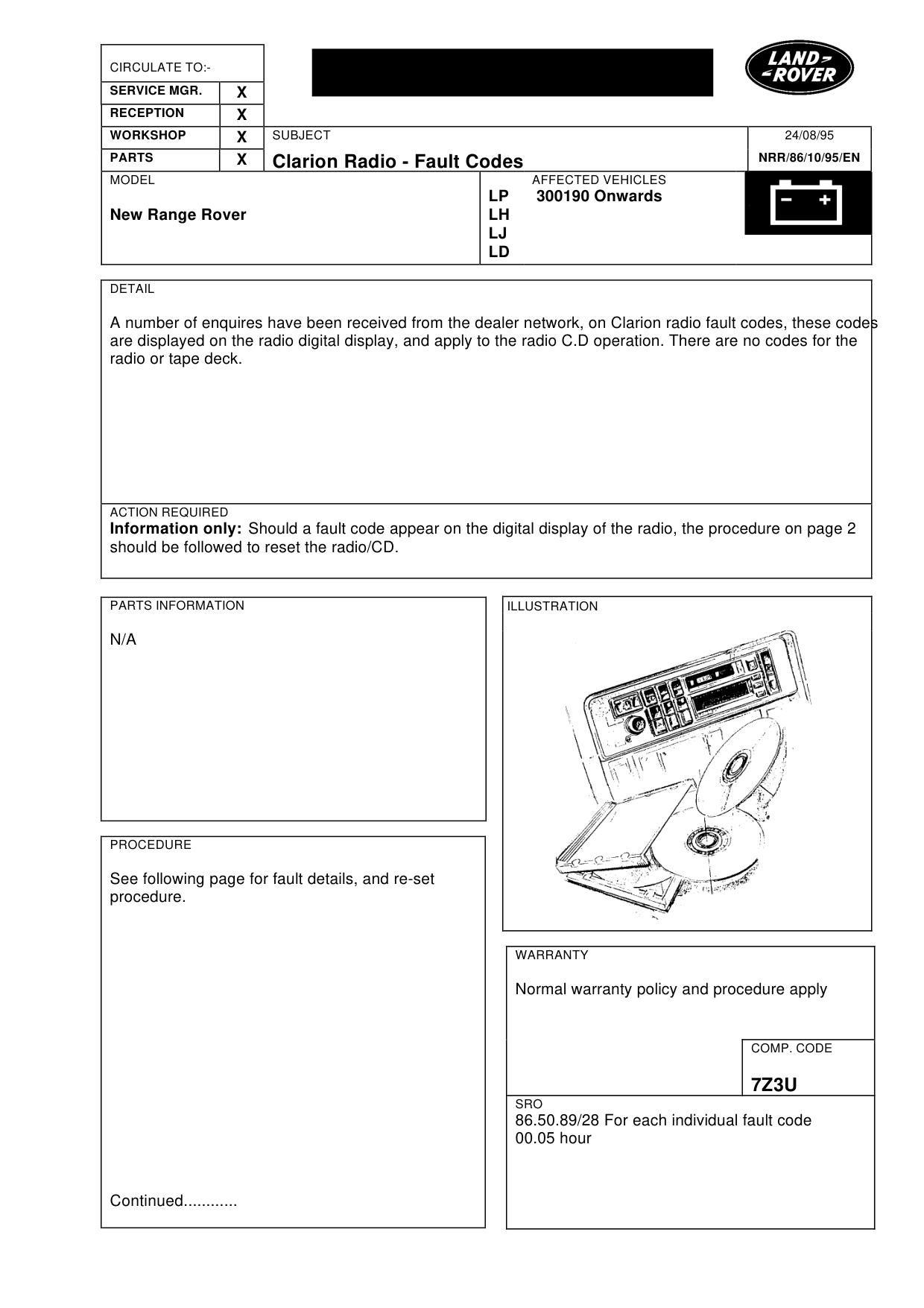

Clarion radio - fault codes

CLARION RADIO - FAULT CODES

Model

New Range Rover

Affected vehicles

300190 Onwards

Date

1995-08-24

Reference

24/08/95

Bulletin text

Clarion Radio - Fault Codes

MODEL

New Range Rover

DETAIL

A number of enquires have been received from the dealer network, on Clarion radio fault codes, these codes are displayed on the radio digital display, and apply to the radio C.D operation. There are no codes for the radio or tape deck.

ACTION REQUIRED

Information only: Should a fault code appear on the digital display of the radio, the procedure on page 2 should be followed to reset the radio/CD.

PARTS INFORMATION

N/A

PROCEDURE

See following page for fault details, and re-set procedure.

Continued............

24/08/95

NRR/86/10/95/EN

AFFECTED VEHICLES

LP 300190 Onwards LH LJ LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

7Z3U

SRO

86.50.89/28 For each individual fault code 00.05 hour

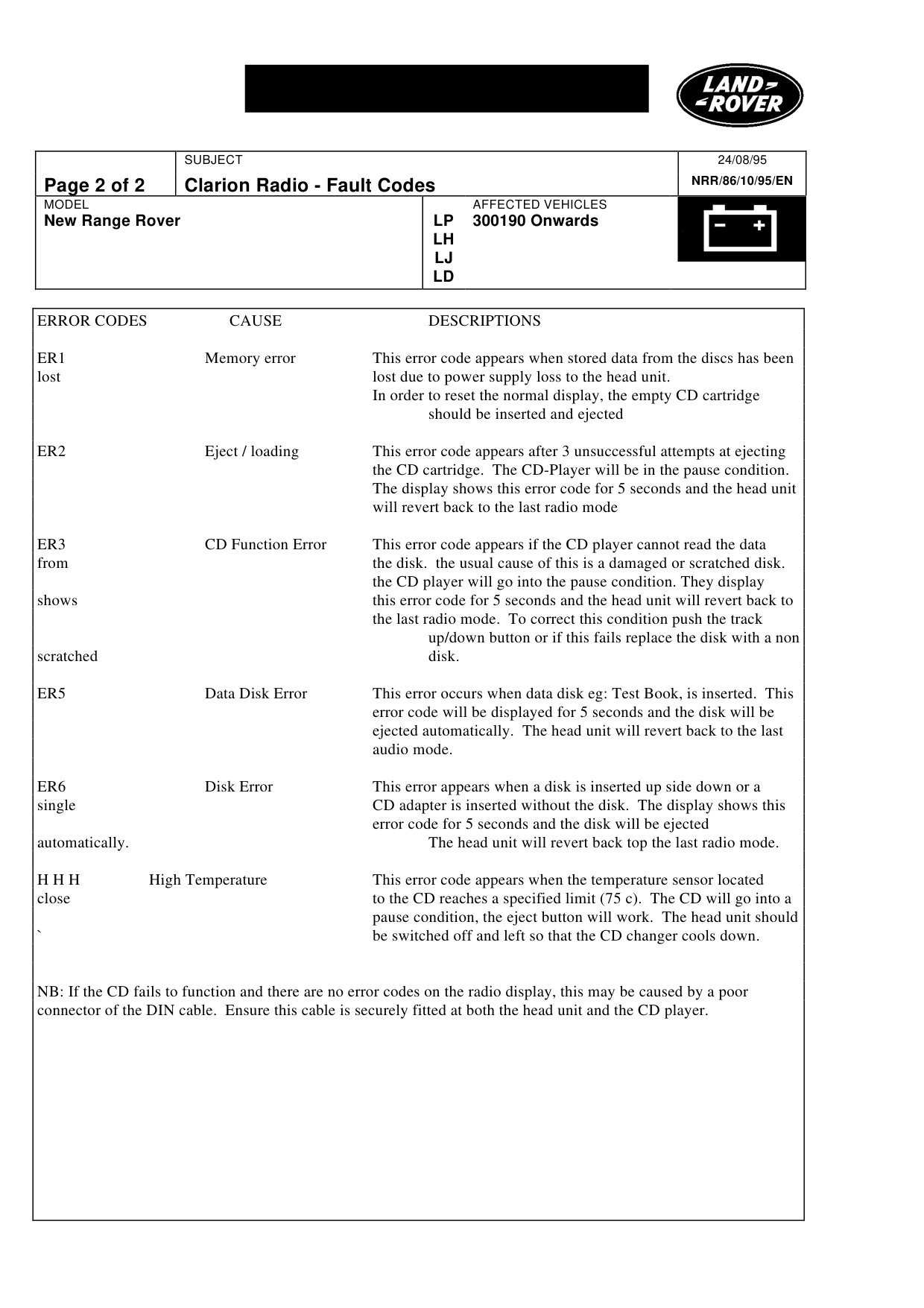

Clarion Radio - Fault Codes

MODEL

New Range Rover

ERROR CODES

CAUSE

ER1 Memory error This error code appears when stored data from the discs has been lost lost due to power supply loss to the head unit. In order to reset the normal display, the empty CD cartridge

ER2 Eject / loading This error code appears after 3 unsuccessful attempts at ejecting the CD cartridge. The CD-Player will be in the pause condition. The display shows this error code for 5 seconds and the head unit will revert back to the last radio mode

ER3 CD Function Error This error code appears if the CD player cannot read the data from the disk. the usual cause of this is a damaged or scratched disk. the CD player will go into the pause condition. They display shows this error code for 5 seconds and the head unit will revert back to the last radio mode. To correct this condition push the track

scratched

ER5 Data Disk Error This error occurs when data disk eg: Test Book, is inserted. This error code will be displayed for 5 seconds and the disk will be ejected automatically. The head unit will revert back to the last audio mode.

ER6 Disk Error This error appears when a disk is inserted up side down or a single CD adapter is inserted without the disk. The display shows this error code for 5 seconds and the disk will be ejected automatically.

H H H High Temperature This error code appears when the temperature sensor located close to the CD reaches a specified limit (75 c). The CD will go into a pause condition, the eject button will work. The head unit should ` be switched off and left so that the CD changer cools down.

NB: If the CD fails to function and there are no error codes on the radio display, this may be caused by a poor connector of the DIN cable. Ensure this cable is securely fitted at both the head unit and the CD player.

24/08/95 NRR/86/10/95/EN

AFFECTED VEHICLES

LP 300190 Onwards LH LJ LD

DESCRIPTIONS

should be inserted and ejected

up/down button or if this fails replace the disk with a non disk.

The head unit will revert back top the last radio mode.
