Door mirror vibration

DOOR MIRROR VIBRATION

Model

Range Rover

Affected vehicles

All vehicles with non Electrochromic door mirrors to VIN 2A 461981

Date

2001-12-12

Reference

Bulletin 0084, CDS ref L8684bu

Bulletin text

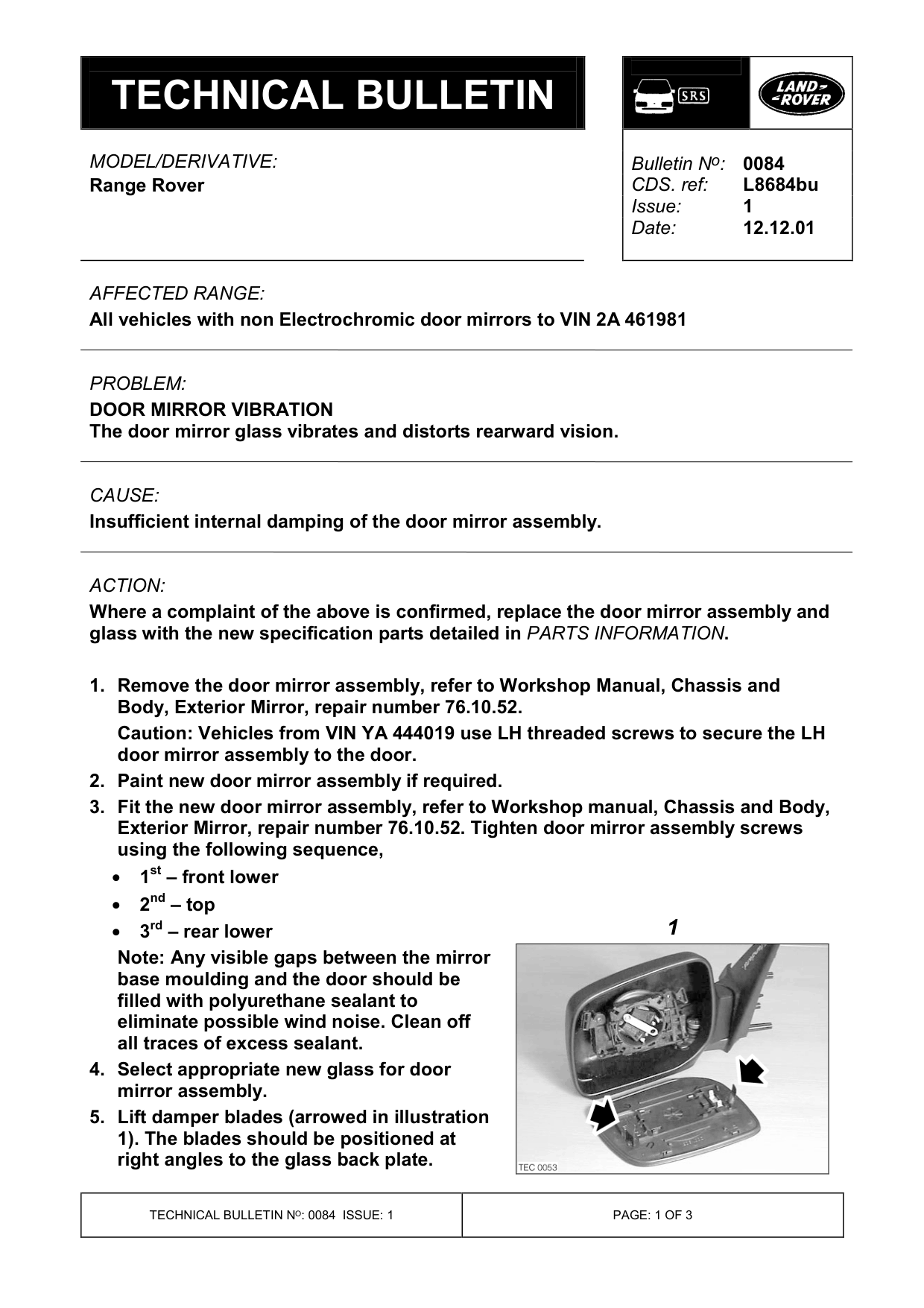

Range Rover

AFFECTED RANGE:

All vehicles with non Electrochromic door mirrors to VIN 2A 461981

PROBLEM:

DOOR MIRROR VIBRATION The door mirror glass vibrates and distorts rearward vision.

CAUSE:

Insufficient internal damping of the door mirror assembly.

ACTION:

Where a complaint of the above is confirmed, replace the door mirror assembly and glass with the new specification parts detailed in PARTS INFORMATION .

1. Remove the door mirror assembly, refer to Workshop Manual, Chassis and Body, Exterior Mirror, repair number 76.10.52. Caution: Vehicles from VIN YA 444019 use LH threaded screws to secure the LH door mirror assembly to the door. 2. Paint new door mirror assembly if required. 3. Fit the new door mirror assembly, refer to Workshop manual, Chassis and Body, Exterior Mirror, repair number 76.10.52. Tighten door mirror assembly screws using the following sequence, • 1 st - front lower • 2 nd - top • 3 rd - rear lower Note: Any visible gaps between the mirror base moulding and the door should be filled with polyurethane sealant to eliminate possible wind noise. Clean off all traces of excess sealant. 4. Select appropriate new glass for door mirror assembly. 5. Lift damper blades (arrowed in illustration 1). The blades should be positioned at right angles to the glass back plate.

Bulletin N o : 0084

1

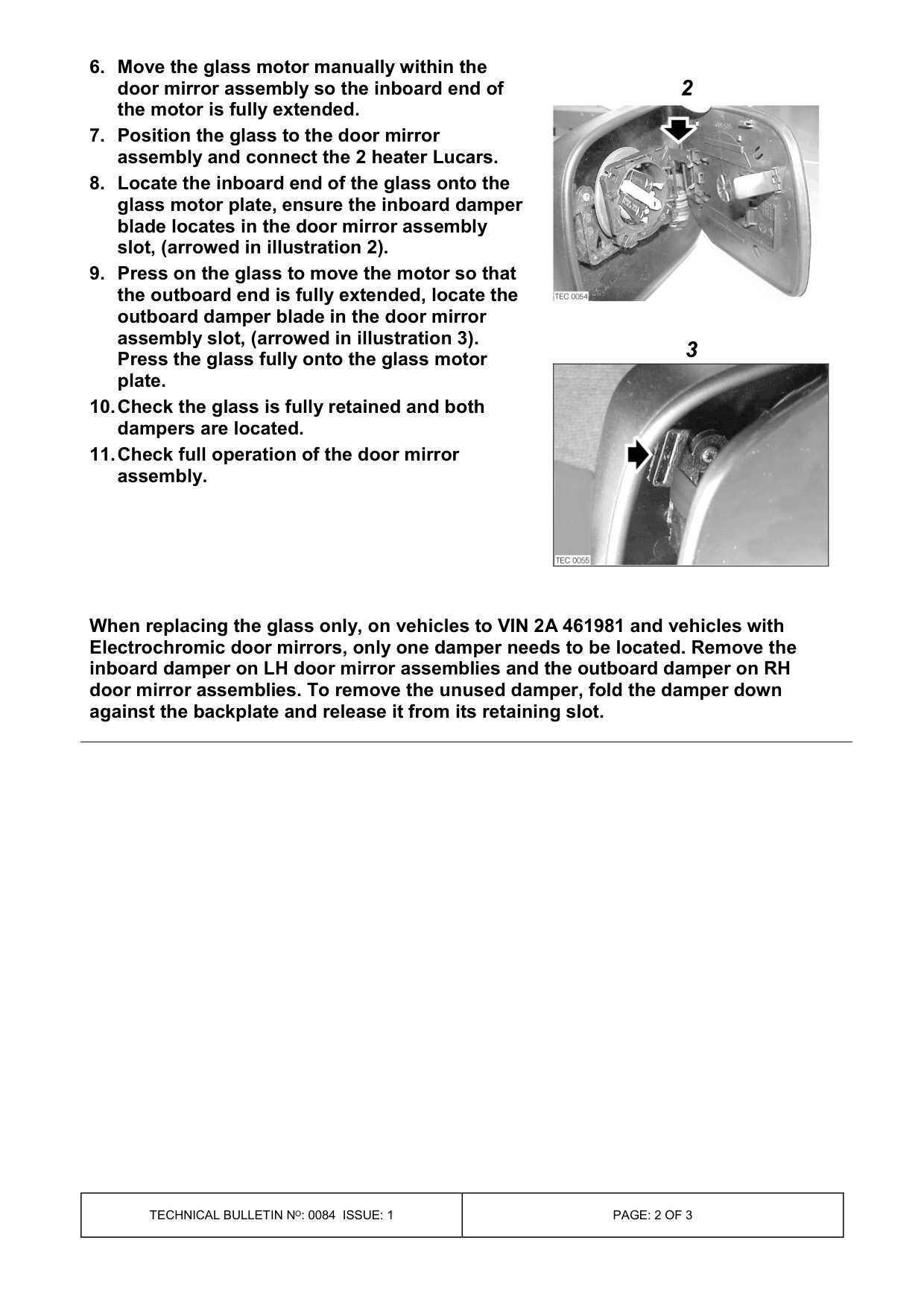

6. Move the glass motor manually within the door mirror assembly so the inboard end of the motor is fully extended. 7. Position the glass to the door mirror assembly and connect the 2 heater Lucars. 8. Locate the inboard end of the glass onto the glass motor plate, ensure the inboard damper blade locates in the door mirror assembly slot, (arrowed in illustration 2). 9. Press on the glass to move the motor so that the outboard end is fully extended, locate the outboard damper blade in the door mirror assembly slot, (arrowed in illustration 3). Press the glass fully onto the glass motor plate. 10. Check the glass is fully retained and both dampers are located. 11. Check full operation of the door mirror assembly.

When replacing the glass only, on vehicles to VIN 2A 461981 and vehicles with Electrochromic door mirrors, only one damper needs to be located. Remove the inboard damper on LH door mirror assemblies and the outboard damper on RH door mirror assemblies. To remove the unused damper, fold the damper down against the backplate and release it from its retaining slot.

2

3

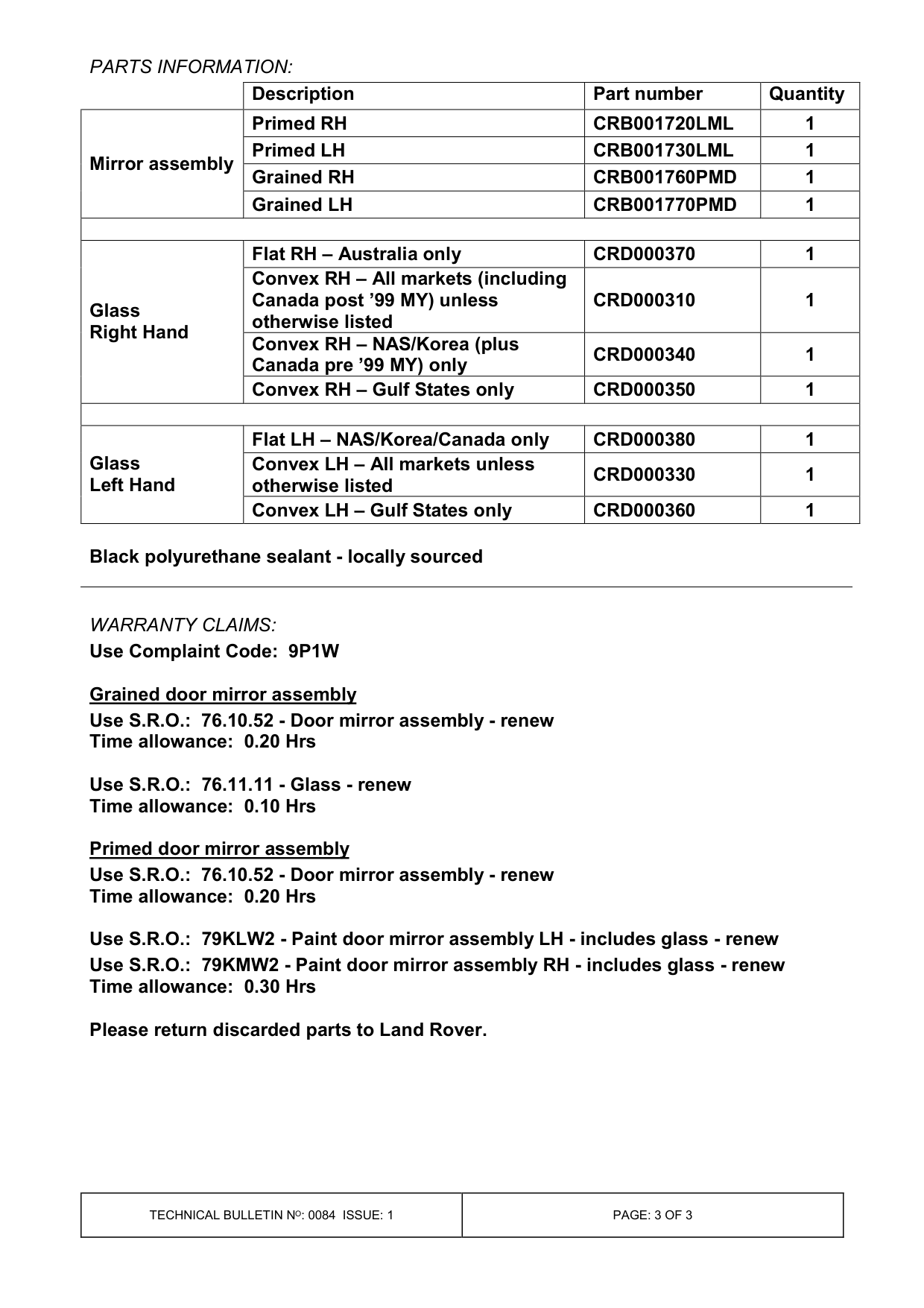

PARTS INFORMATION:

Description Primed RH Primed LH Mirror assembly Grained RH Grained LH

Flat RH - Australia only Convex RH - All markets (including Canada post ’99 MY) unless Glass otherwise listed Right Hand Convex RH - NAS/Korea (plus Canada pre ’99 MY) only Convex RH - Gulf States only

Flat LH - NAS/Korea/Canada only Glass Convex LH - All markets unless Left Hand otherwise listed Convex LH - Gulf States only

Black polyurethane sealant - locally sourced

WARRANTY CLAIMS: Use Complaint Code: 9P1W

Grained door mirror assembly Use S.R.O.: 76.10.52 - Door mirror assembly - renew Time allowance: 0.20 Hrs

Use S.R.O.: 76.11.11 - Glass - renew Time allowance: 0.10 Hrs

Primed door mirror assembly Use S.R.O.: 76.10.52 - Door mirror assembly - renew Time allowance: 0.20 Hrs

Use S.R.O.: 79KLW2 - Paint door mirror assembly LH - includes glass - renew Use S.R.O.: 79KMW2 - Paint door mirror assembly RH - includes glass - renew Time allowance: 0.30 Hrs

Please return discarded parts to Land Rover.

Part number Quantity CRB001720LML 1 CRB001730LML 1 CRB001760PMD 1 CRB001770PMD 1

CRD000370 1

CRD000310 1

CRD000340 1

CRD000350 1

CRD000380 1

CRD000330 1

CRD000360 1
