Front window regulator noisy operation

FRONT WINDOW REGULATOR NOISY OPERATION

Model

New Range Rover All Derivatives

Affected vehicles

351500 to 352109

Date

1996-12-11

Reference

11/12/96

Bulletin text

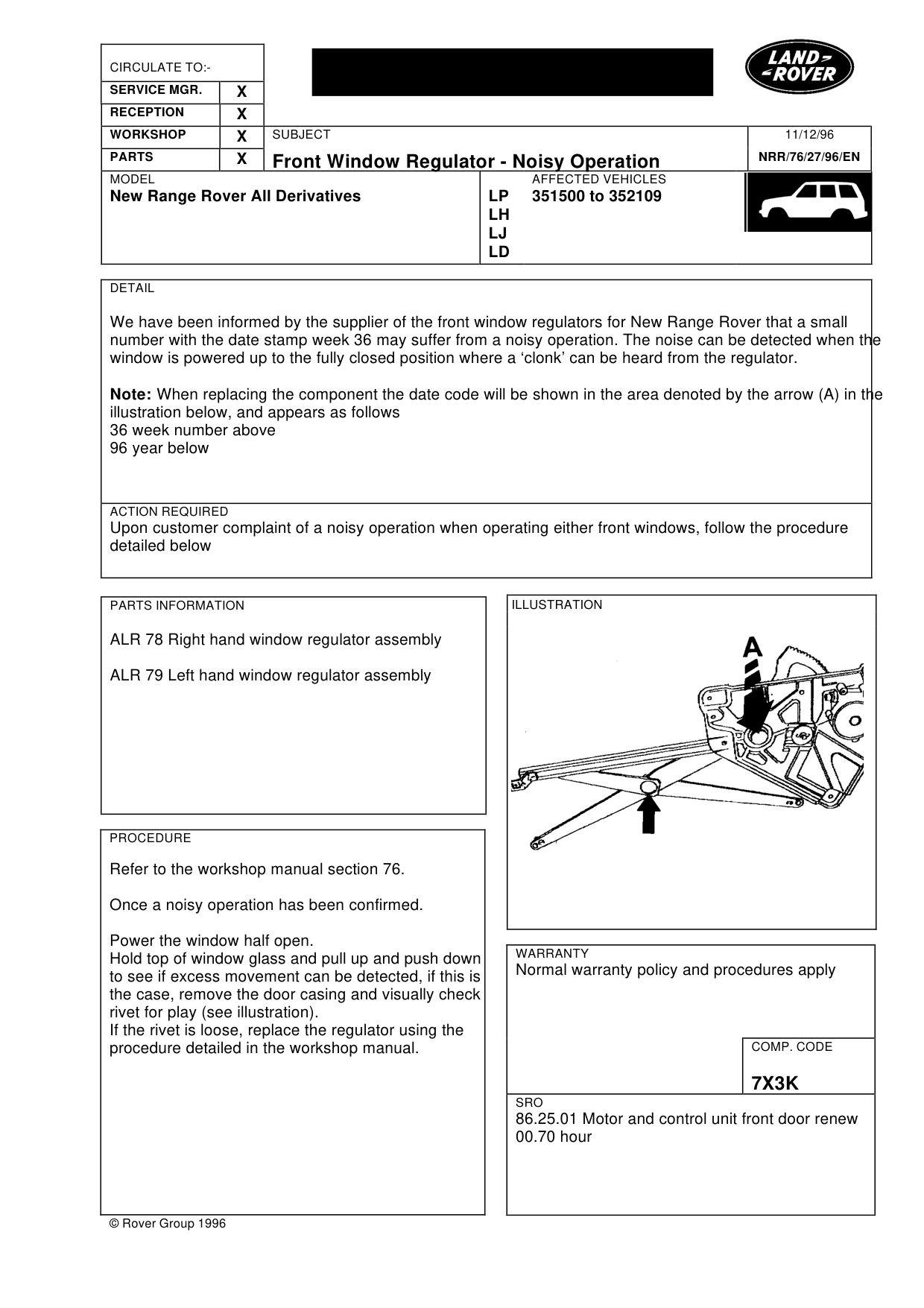

Front Window Regulator - Noisy Operation

MODEL

New Range Rover All Derivatives

DETAIL

We have been informed by the supplier of the front window regulators for New Range Rover that a small number with the date stamp week 36 may suffer from a noisy operation. The noise can be detected when the window is powered up to the fully closed position where a ‘clonk’ can be heard from the regulator.

Note: When replacing the component the date code will be shown in the area denoted by the arrow (A) in the illustration below, and appears as follows 36 week number above 96 year below

ACTION REQUIRED

Upon customer complaint of a noisy operation when operating either front windows, follow the procedure detailed below

PARTS INFORMATION

ALR 78 Right hand window regulator assembly

ALR 79 Left hand window regulator assembly

PROCEDURE

Refer to the workshop manual section 76.

Once a noisy operation has been confirmed.

Power the window half open. Hold top of window glass and pull up and push down to see if excess movement can be detected, if this is the case, remove the door casing and visually check rivet for play (see illustration). If the rivet is loose, replace the regulator using the procedure detailed in the workshop manual.

© Rover Group 1996

11/12/96

NRR/76/27/96/EN

AFFECTED VEHICLES

LP 351500 to 352109 LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

7X3K

SRO

86.25.01 Motor and control unit front door renew 00.70 hour
