Handset fails to lock vehicle

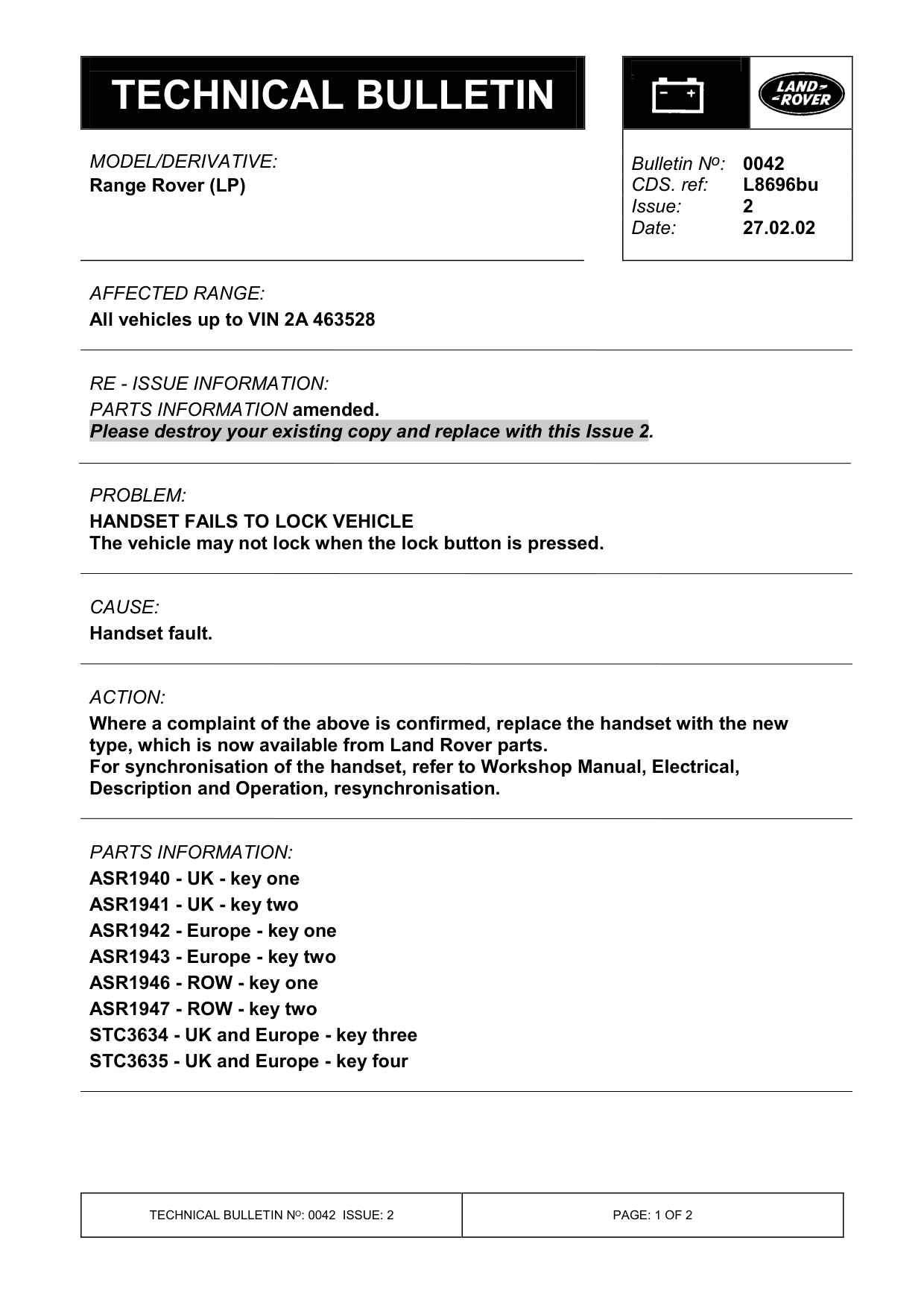

HANDSET FAILS TO LOCK VEHICLE

Model

Range Rover (LP)

Affected vehicles

All vehicles up to VIN 2A 463528 RE - ISSUE INFORMATION: PARTS INFORMATION amended. Please destroy your existing copy and replace with this Issue 2.

Date

2002-02-27

Reference

Bulletin 0042, CDS ref L8696bu

Bulletin text

Range Rover (LP)

AFFECTED RANGE:

All vehicles up to VIN 2A 463528

RE - ISSUE INFORMATION: PARTS INFORMATION amended. Please destroy your existing copy and replace with this Issue 2.

PROBLEM:

HANDSET FAILS TO LOCK VEHICLE The vehicle may not lock when the lock button is pressed.

CAUSE:

Handset fault.

ACTION:

Where a complaint of the above is confirmed, replace the handset with the new type, which is now available from Land Rover parts. For synchronisation of the handset, refer to Workshop Manual, Electrical, Description and Operation, resynchronisation.

PARTS INFORMATION:

ASR1940 - UK - key one ASR1941 - UK - key two ASR1942 - Europe - key one ASR1943 - Europe - key two ASR1946 - ROW - key one ASR1947 - ROW - key two STC3634 - UK and Europe - key three STC3635 - UK and Europe - key four

Bulletin N o : 0042

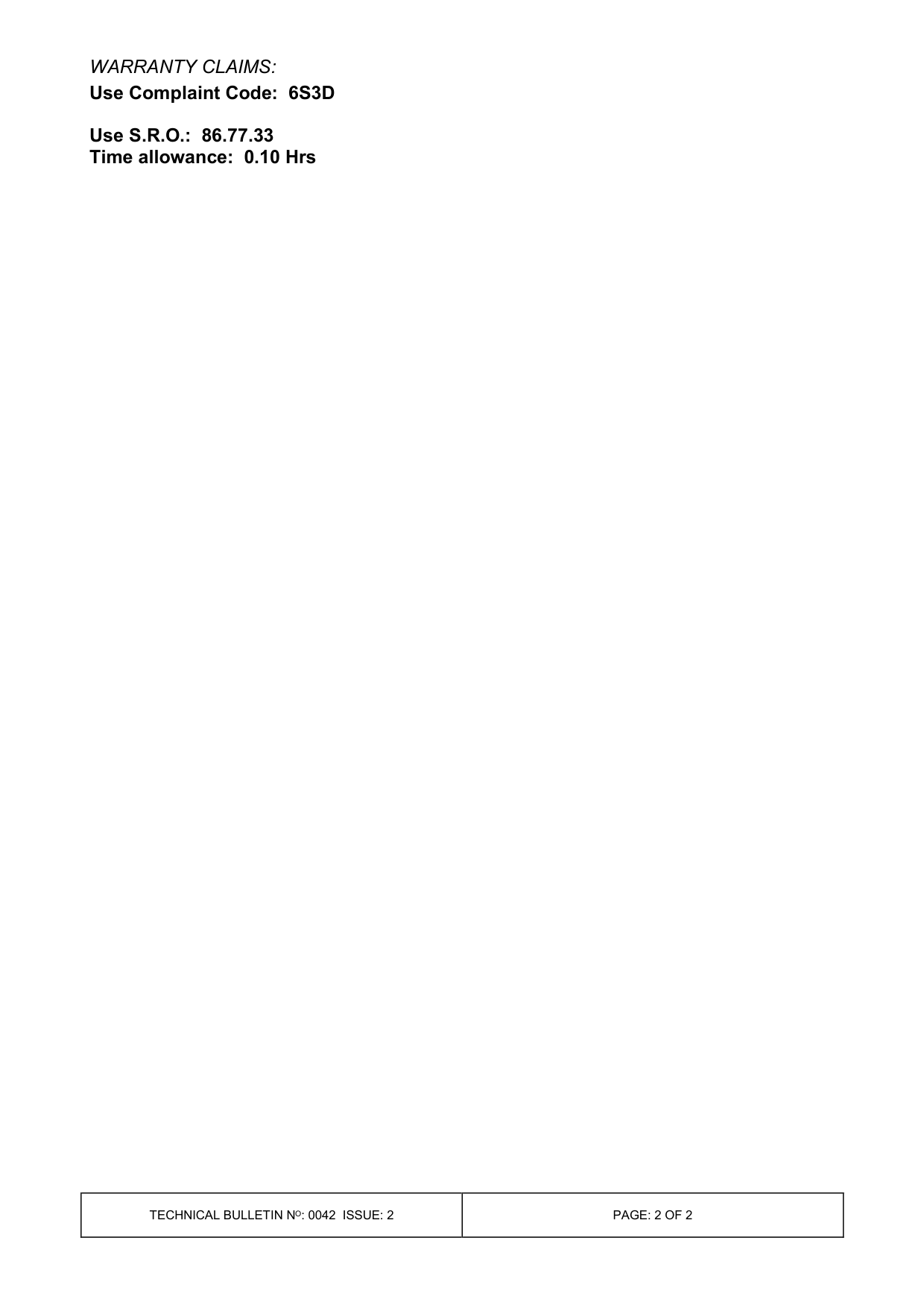

WARRANTY CLAIMS: Use Complaint Code: 6S3D

Use S.R.O.: 86.77.33 Time allowance: 0.10 Hrs
