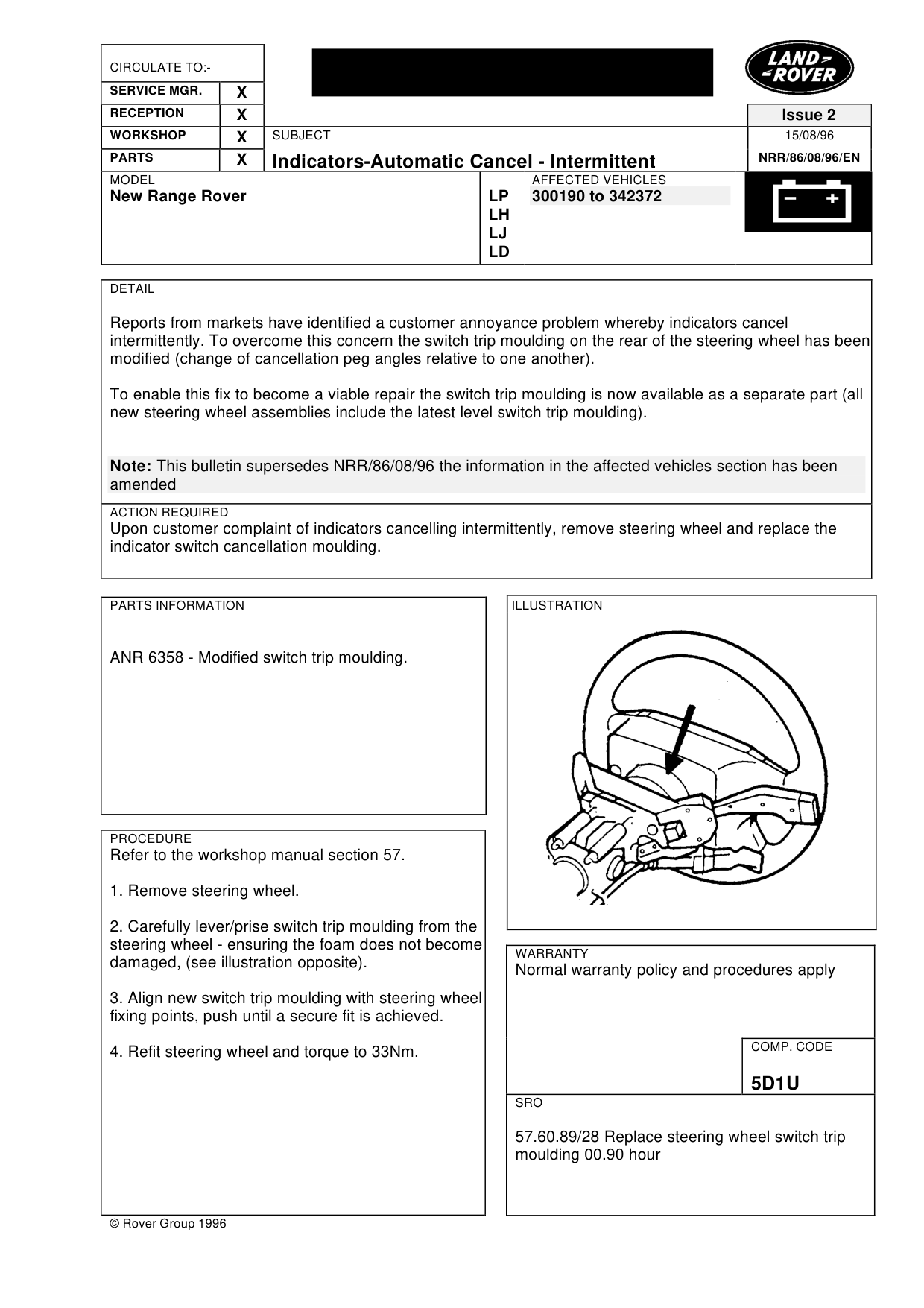

INDICATORS-AUTOMATIC CANEL-INTERMITTENT

Model

New Range Rover

Affected vehicles

300190 to 342372

Date

1996-08-15

Reference

15/08/96

Bulletin text

Indicators-Automatic Cancel - Intermittent

MODEL

New Range Rover

DETAIL

Reports from markets have identified a customer annoyance problem whereby indicators cancel intermittently. To overcome this concern the switch trip moulding on the rear of the steering wheel has been modified (change of cancellation peg angles relative to one another).

To enable this fix to become a viable repair the switch trip moulding is now available as a separate part (all new steering wheel assemblies include the latest level switch trip moulding).

Note: This bulletin supersedes NRR/86/08/96 the information in the affected vehicles section has been amended

ACTION REQUIRED

Upon customer complaint of indicators cancelling intermittently, remove steering wheel and replace the indicator switch cancellation moulding.

PARTS INFORMATION

ANR 6358 - Modified switch trip moulding.

PROCEDURE

Refer to the workshop manual section 57.

1. Remove steering wheel.

2. Carefully lever/prise switch trip moulding from the steering wheel - ensuring the foam does not become damaged, (see illustration opposite).

3. Align new switch trip moulding with steering wheel fixing points, push until a secure fit is achieved.

4. Refit steering wheel and torque to 33Nm.

© Rover Group 1996

Issue 2 15/08/96

NRR/86/08/96/EN

AFFECTED VEHICLES

300190 to 342372 LP LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

5D1U

SRO

57.60.89/28 Replace steering wheel switch trip moulding 00.90 hour
