Remote handset keypad buttons worn

REMOTE HANDSET KEYPAD BUTTONS WORN

Model

Range Rover

Affected vehicles

All vehicles

Date

2000-09-13

Reference

Bulletin 0028, CDS ref L8602bu

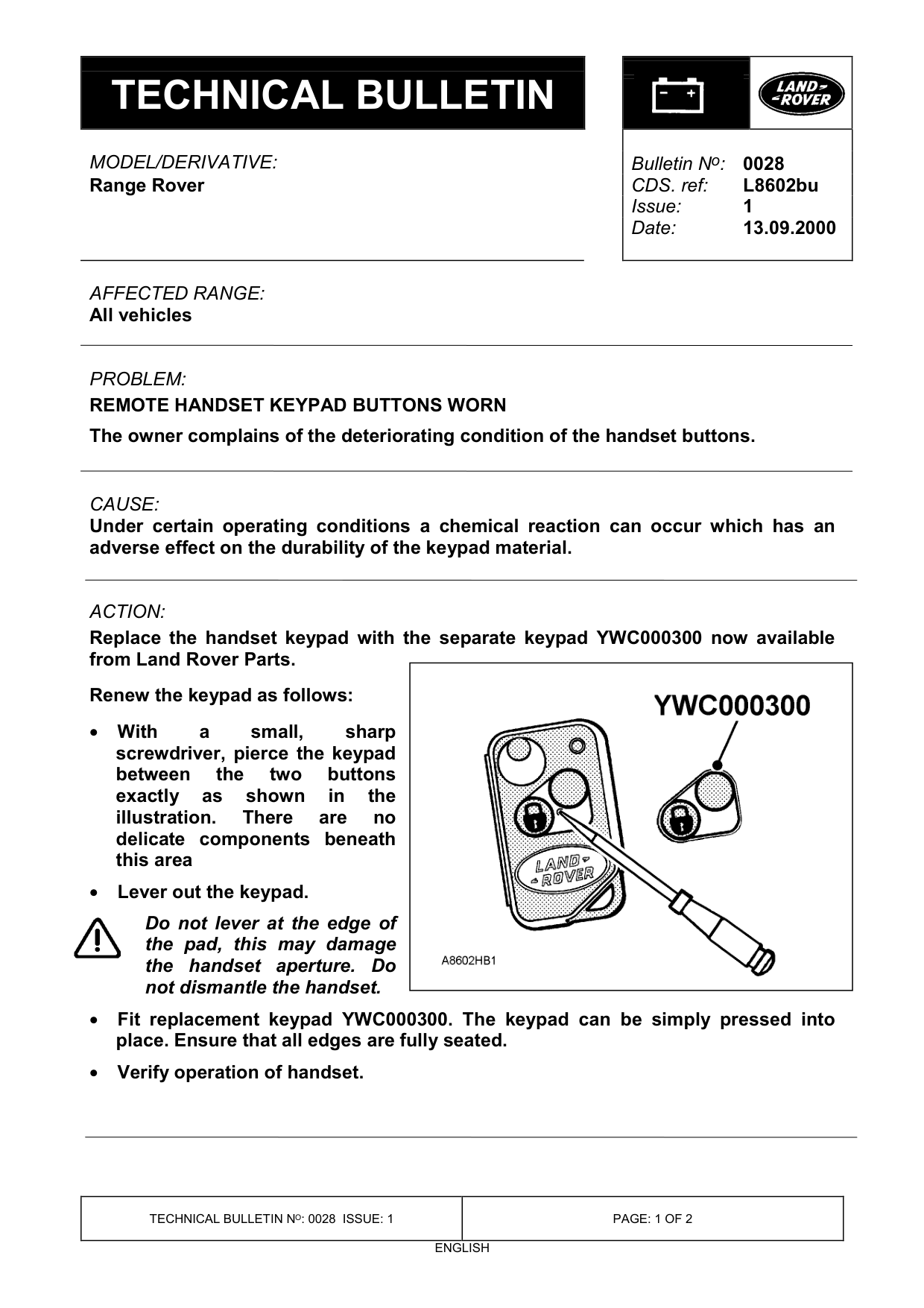

Bulletin text

Range Rover

AFFECTED RANGE:

All vehicles

PROBLEM:

REMOTE HANDSET KEYPAD BUTTONS WORN The owner complains of the deteriorating condition of the handset buttons.

CAUSE:

Under certain operating conditions a chemical reaction can occur which has an adverse effect on the durability of the keypad material.

ACTION:

Replace the handset keypad with the separate keypad YWC000300 now available from Land Rover Parts.

Renew the keypad as follows:

• With a small, sharp screwdriver, pierce the keypad between the two buttons exactly as shown in the illustration. There are no delicate components beneath this area

• Lever out the keypad. Do not lever at the edge of the pad, this may damage the handset aperture. Do not dismantle the handset. • Fit replacement keypad YWC000300. The keypad can be simply pressed into place. Ensure that all edges are fully seated.

• Verify operation of handset.

Bulletin N o : 0028 L8602bu 1 13.09.2000

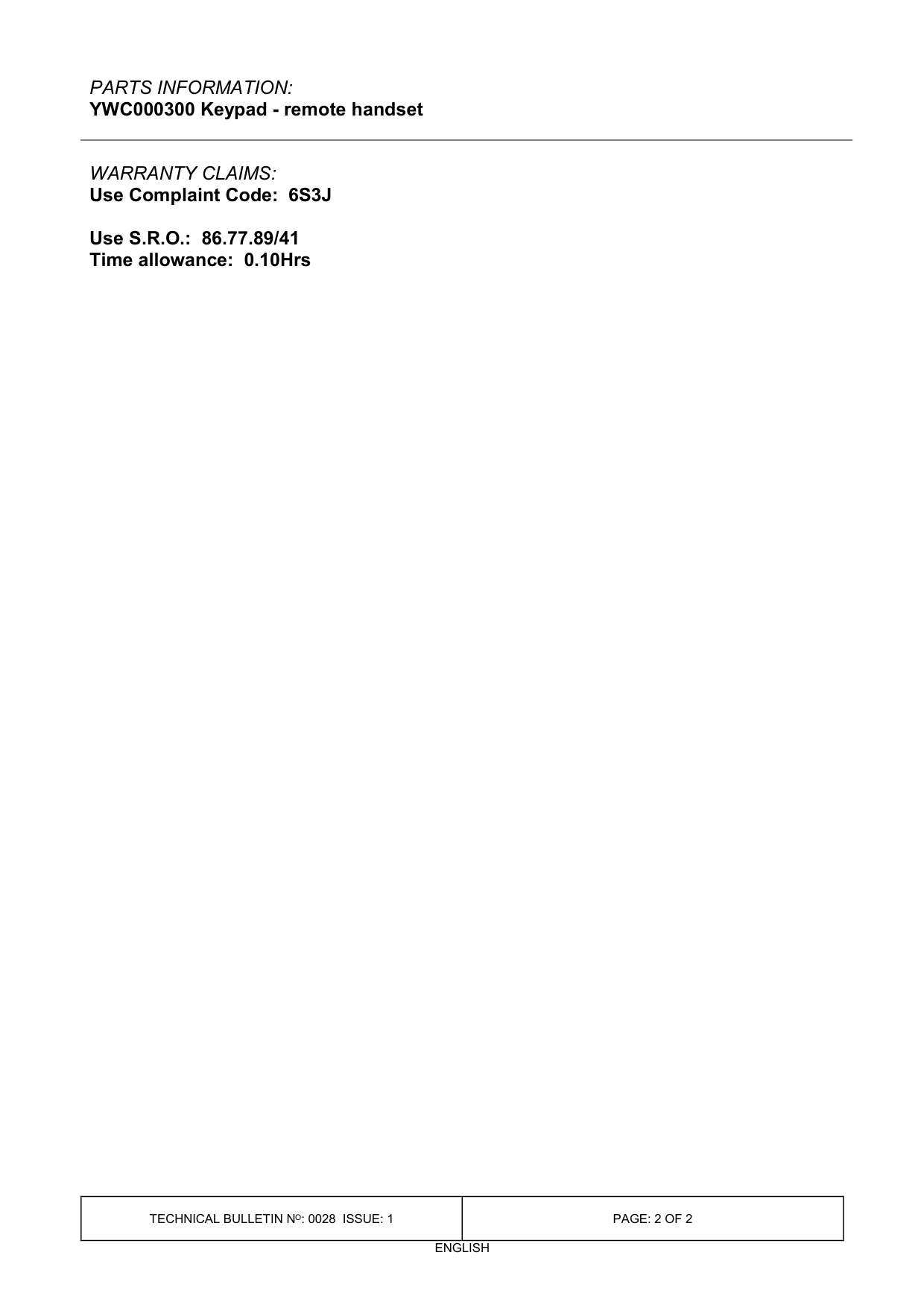

PARTS INFORMATION:

YWC000300 Keypad - remote handset

WARRANTY CLAIMS: Use Complaint Code: 6S3J

Use S.R.O.: 86.77.89/41 Time allowance: 0.10Hrs
