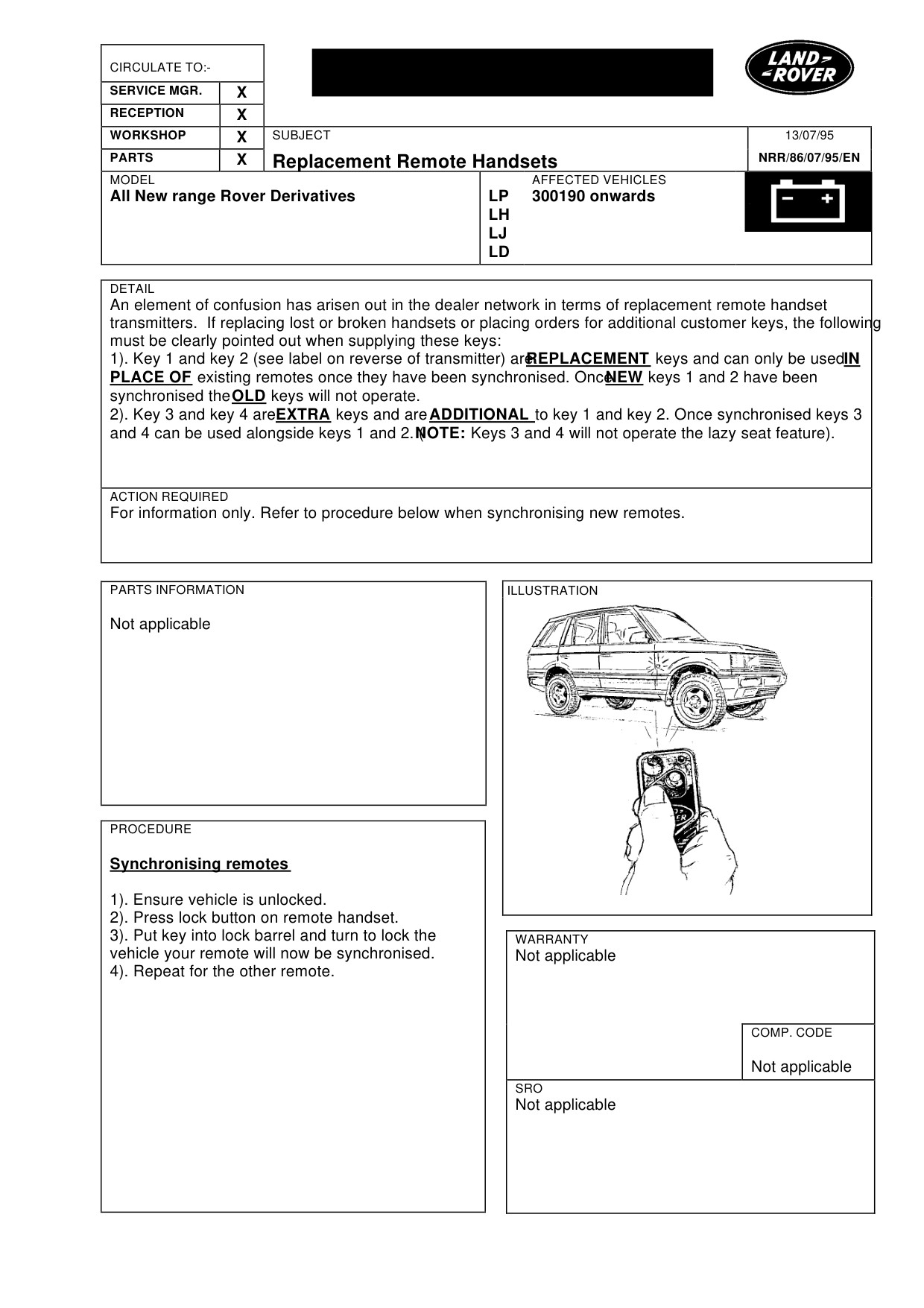

Replacement remote handsets

REPLACEMENT REMOTE HANDSETS

Model

All New range Rover Derivatives

Affected vehicles

300190 onwards

Date

1995-07-13

Reference

13/07/95

Bulletin text

Replacement Remote Handsets

MODEL

All New range Rover Derivatives

DETAIL

An element of confusion has arisen out in the dealer network in terms of replacement remote handset transmitters. If replacing lost or broken handsets or placing orders for additional customer keys, the following must be clearly pointed out when supplying these keys: 1). Key 1 and key 2 (see label on reverse of transmitter) are REPLACEMENT keys and can only be used IN PLACE OF existing remotes once they have been synchronised. Once NEW keys 1 and 2 have been synchronised the OLD keys will not operate. 2). Key 3 and key 4 are EXTRA keys and are ADDITIONAL to key 1 and key 2. Once synchronised keys 3 and 4 can be used alongside keys 1 and 2. ( NOTE: Keys 3 and 4 will not operate the lazy seat feature).

ACTION REQUIRED

For information only. Refer to procedure below when synchronising new remotes.

PARTS INFORMATION

Not applicable

PROCEDURE

Synchronising remotes

1). Ensure vehicle is unlocked. 2). Press lock button on remote handset. 3). Put key into lock barrel and turn to lock the vehicle your remote will now be synchronised. 4). Repeat for the other remote.

13/07/95

NRR/86/07/95/EN

AFFECTED VEHICLES

LP 300190 onwards LH LJ LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
