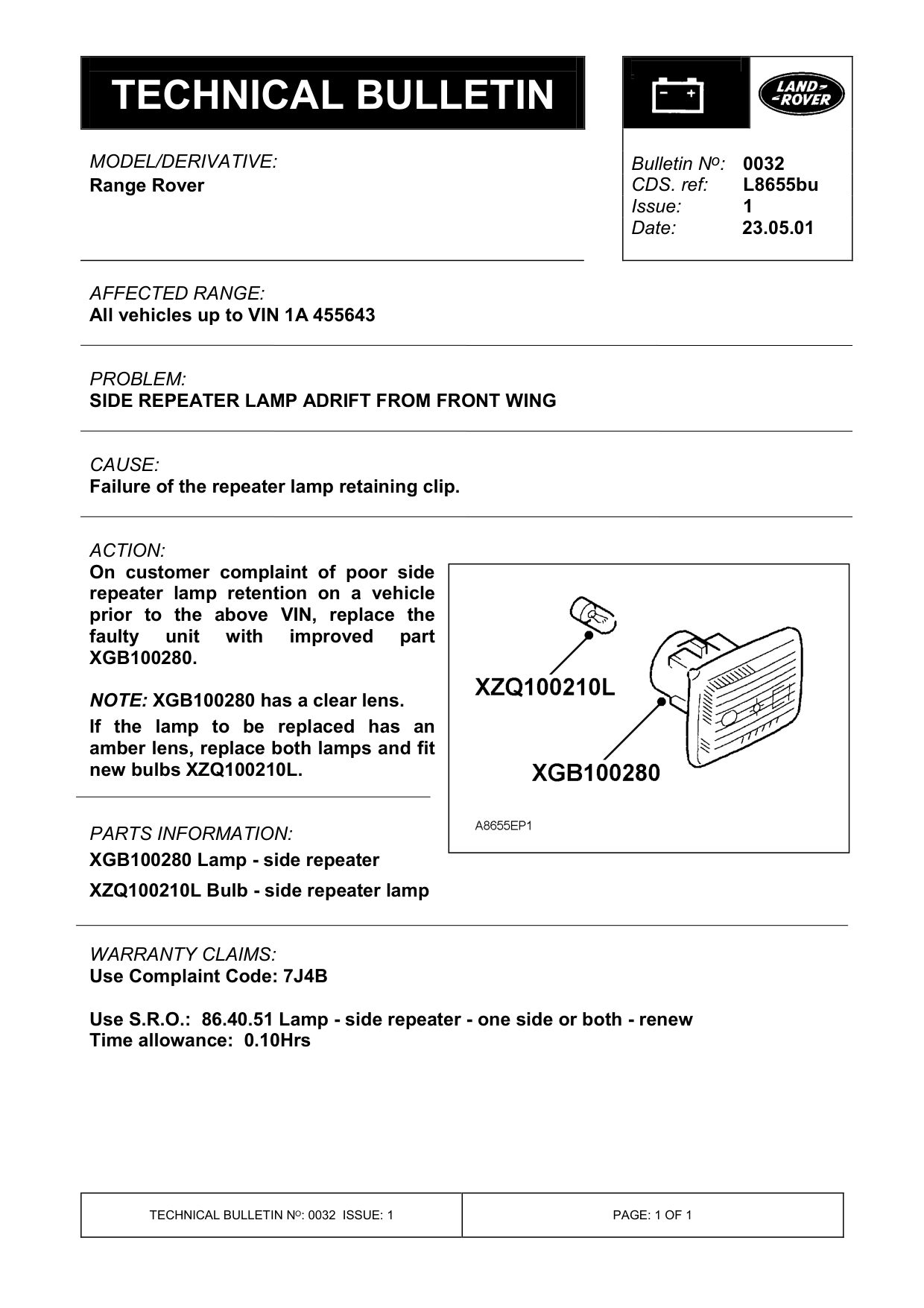

Side repeater lamp adrift from front wing

SIDE REPEATER LAMP ADRIFT FROM FRONT WING

Model

Range Rover

Affected vehicles

All vehicles up to VIN 1A 455643

Date

2001-05-23

Reference

Bulletin 0032, CDS ref L8655bu

Bulletin text

Range Rover

AFFECTED RANGE:

All vehicles up to VIN 1A 455643

PROBLEM:

SIDE REPEATER LAMP ADRIFT FROM FRONT WING

CAUSE:

Failure of the repeater lamp retaining clip.

ACTION:

On customer complaint of poor side repeater lamp retention on a vehicle prior to the above VIN, replace the faulty unit with improved XGB100280.

NOTE: XGB100280 has a clear lens. If the lamp to be replaced has an amber lens, replace both lamps and fit new bulbs XZQ100210L.

PARTS INFORMATION:

XGB100280 Lamp - side repeater XZQ100210L Bulb - side repeater lamp

WARRANTY CLAIMS: Use Complaint Code: 7J4B

Use S.R.O.: 86.40.51 Lamp - side repeater - one side or both - renew Time allowance: 0.10Hrs

Bulletin N o : 0032
