Squeaks and rattles-diagnostic bulletin

SQUEAKS AND RATTLES-DIAGNOSTIC BULLETIN

Model

New Range Rover

Affected vehicles

All

Date

1996-01-24

Reference

24/01/96

Bulletin text

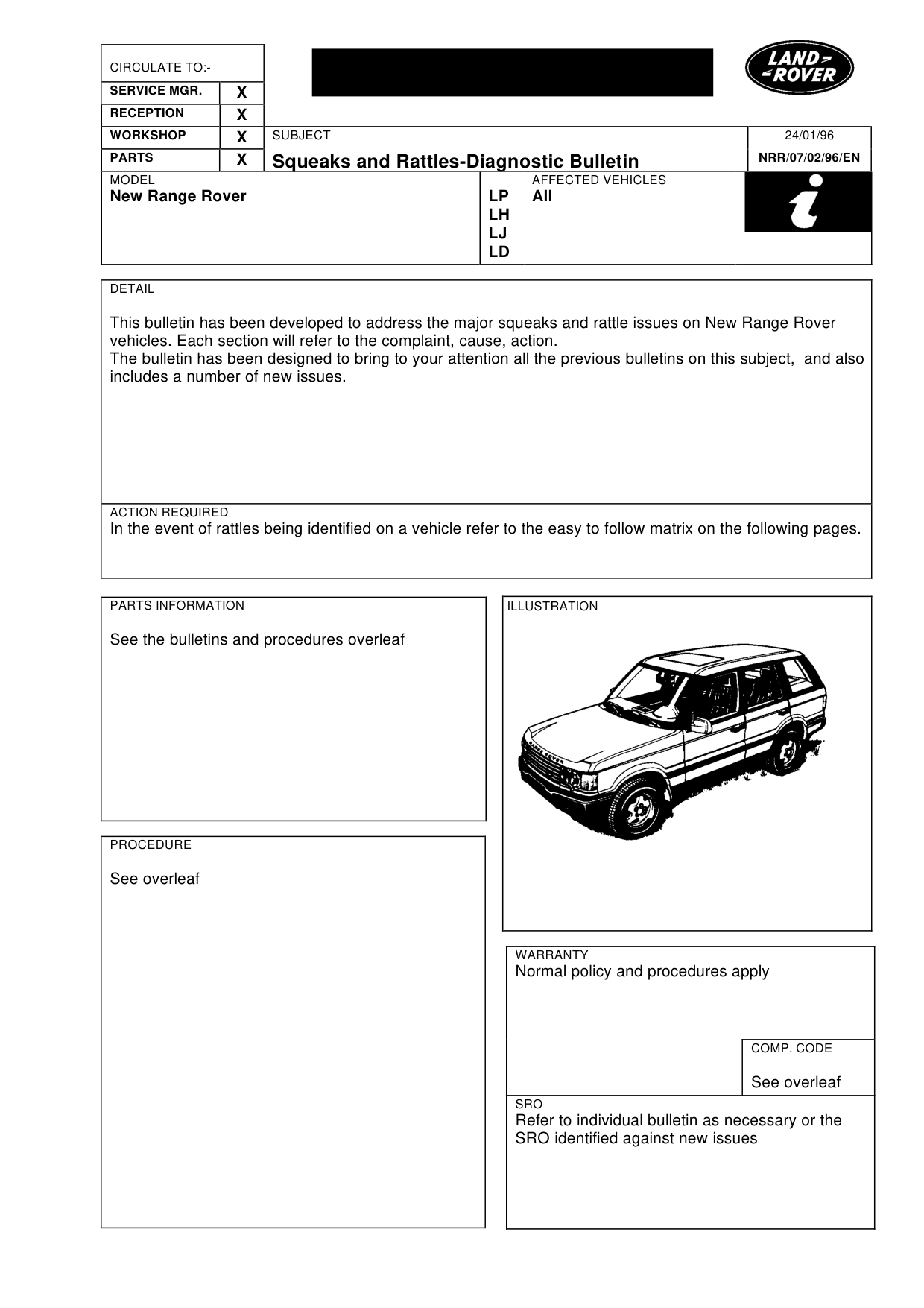

Squeaks and Rattles-Diagnostic Bulletin

MODEL

New Range Rover

DETAIL

This bulletin has been developed to address the major squeaks and rattle issues on New Range Rover vehicles. Each section will refer to the complaint, cause, action. The bulletin has been designed to bring to your attention all the previous bulletins on this subject, and also includes a number of new issues.

ACTION REQUIRED

In the event of rattles being identified on a vehicle refer to the easy to follow matrix on the following pages.

PARTS INFORMATION

See the bulletins and procedures overleaf

PROCEDURE

See overleaf

24/01/96

NRR/07/02/96/EN

AFFECTED VEHICLES

LP All LH LJ LD

WARRANTY

Normal policy and procedures apply

COMP. CODE

See overleaf

SRO

Refer to individual bulletin as necessary or the SRO identified against new issues

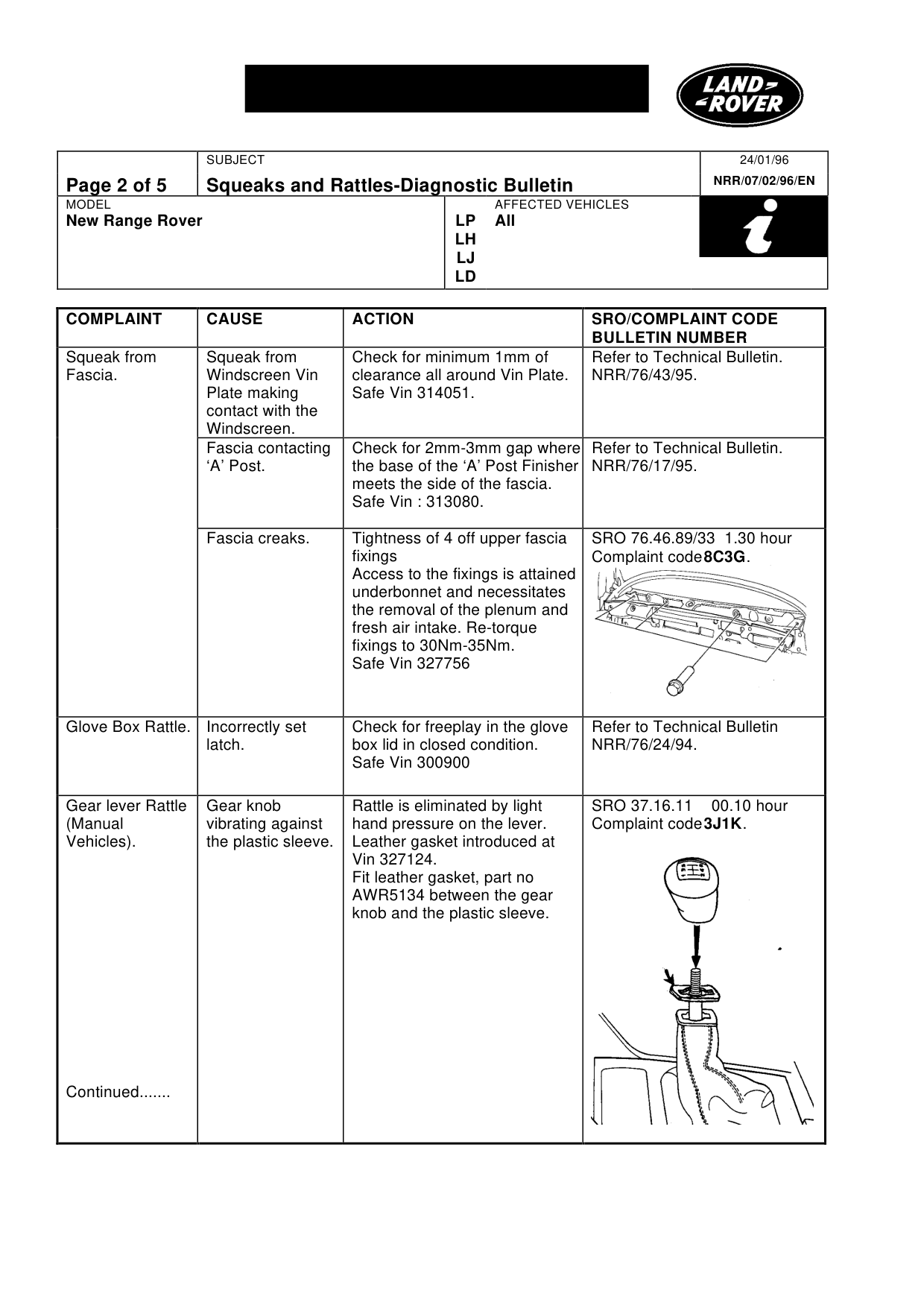

Squeaks and Rattles-Diagnostic Bulletin

MODEL

New Range Rover

COMPLAINT

CAUSE ACTION

Squeak from Squeak from Check for minimum 1mm of Fascia. Windscreen Vin clearance all around Vin Plate. Plate making Safe Vin 314051. contact with the Windscreen. Fascia contacting Check for 2mm-3mm gap where ‘A’ Post. the base of the ‘A’ Post Finisher meets the side of the fascia. Safe Vin : 313080.

Fascia creaks. Tightness of 4 off upper fascia fixings Access to the fixings is attained underbonnet and necessitates the removal of the plenum and fresh air intake. Re-torque fixings to 30Nm-35Nm. Safe Vin 327756

Glove Box Rattle. Incorrectly set Check for freeplay in the glove latch. box lid in closed condition. Safe Vin 300900

Gear lever Rattle Gear knob Rattle is eliminated by light hand pressure on the lever. (Manual vibrating against Leather gasket introduced at the plastic sleeve. Vehicles). Vin 327124. Fit leather gasket, part no AWR5134 between the gear knob and the plastic sleeve.

Continued.......

24/01/96 NRR/07/02/96/EN

AFFECTED VEHICLES

LP All LH LJ LD

SRO/COMPLAINT CODE BULLETIN NUMBER Refer to Technical Bulletin. NRR/76/43/95.

Refer to Technical Bulletin. NRR/76/17/95.

SRO 76.46.89/33 1.30 hour Complaint code 8C3G .

Refer to Technical Bulletin NRR/76/24/94.

SRO 37.16.11 00.10 hour Complaint code 3J1K .

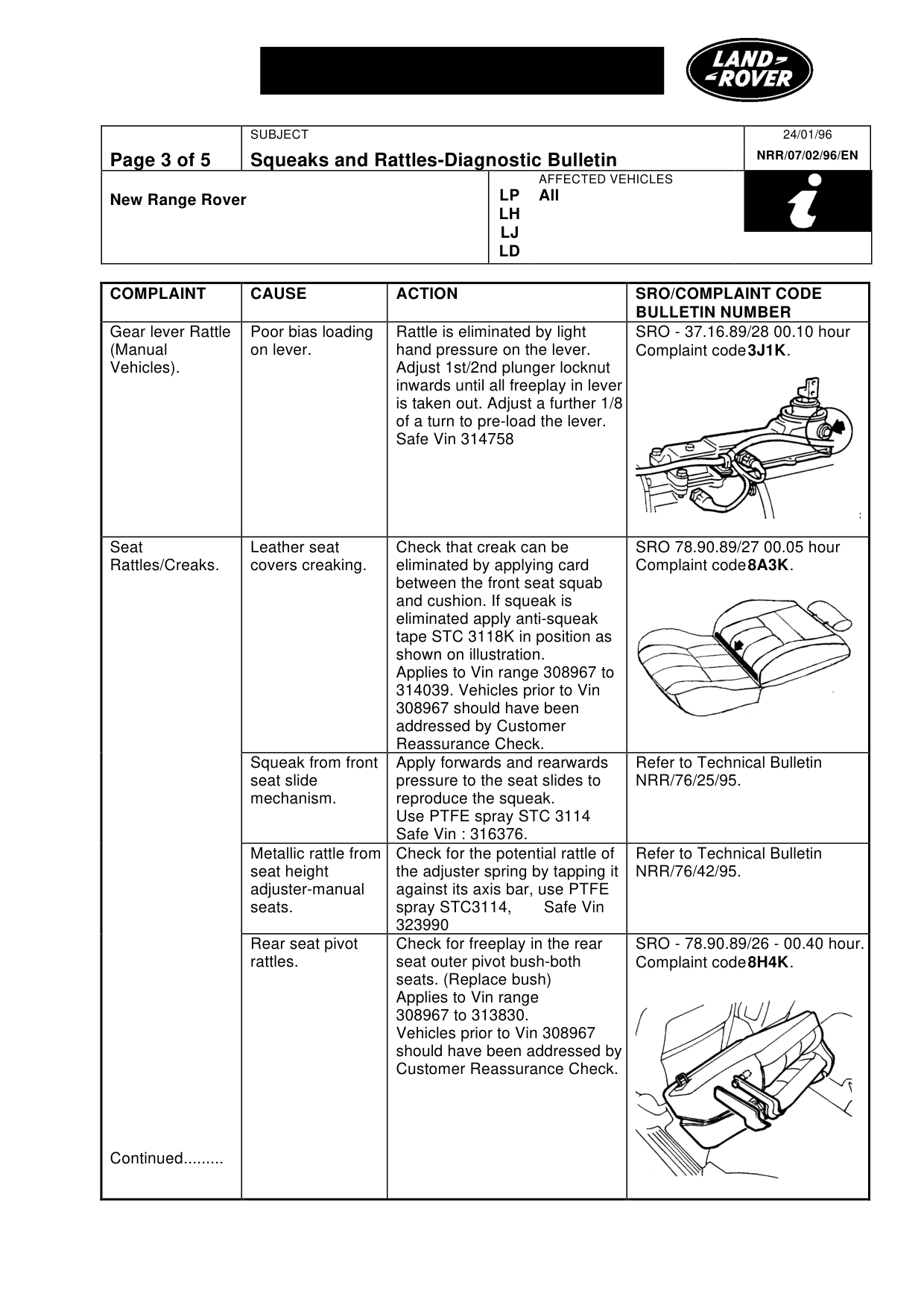

Squeaks and Rattles-Diagnostic Bulletin

New Range Rover

COMPLAINT

CAUSE ACTION

Gear lever Rattle Poor bias loading Rattle is eliminated by light (Manual on lever. hand pressure on the lever. Vehicles). Adjust 1st/2nd plunger locknut inwards until all freeplay in lever is taken out. Adjust a further 1/8 of a turn to pre-load the lever. Safe Vin 314758

Seat Leather seat Check that creak can be Rattles/Creaks. covers creaking. eliminated by applying card between the front seat squab and cushion. If squeak is eliminated apply anti-squeak tape STC 3118K in position as shown on illustration. Applies to Vin range 308967 to 314039. Vehicles prior to Vin 308967 should have been addressed by Customer Reassurance Check. Apply forwards and rearwards Squeak from front pressure to the seat slides to seat slide reproduce the squeak. mechanism. Use PTFE spray STC 3114 Safe Vin : 316376. Check for the potential rattle of Metallic rattle from seat height the adjuster spring by tapping it adjuster-manual against its axis bar, use PTFE spray STC3114, Safe Vin seats. 323990 Rear seat pivot Check for freeplay in the rear rattles. seat outer pivot bush-both seats. (Replace bush) Applies to Vin range 308967 to 313830. Vehicles prior to Vin 308967 should have been addressed by Customer Reassurance Check.

Continued.........

24/01/96 NRR/07/02/96/EN

AFFECTED VEHICLES

LP All LH LJ LD

SRO/COMPLAINT CODE BULLETIN NUMBER SRO - 37.16.89/28 00.10 hour Complaint code 3J1K .

SRO 78.90.89/27 00.05 hour Complaint code 8A3K .

Refer to Technical Bulletin NRR/76/25/95.

Refer to Technical Bulletin NRR/76/42/95.

SRO - 78.90.89/26 - 00.40 hour. Complaint code 8H4K .

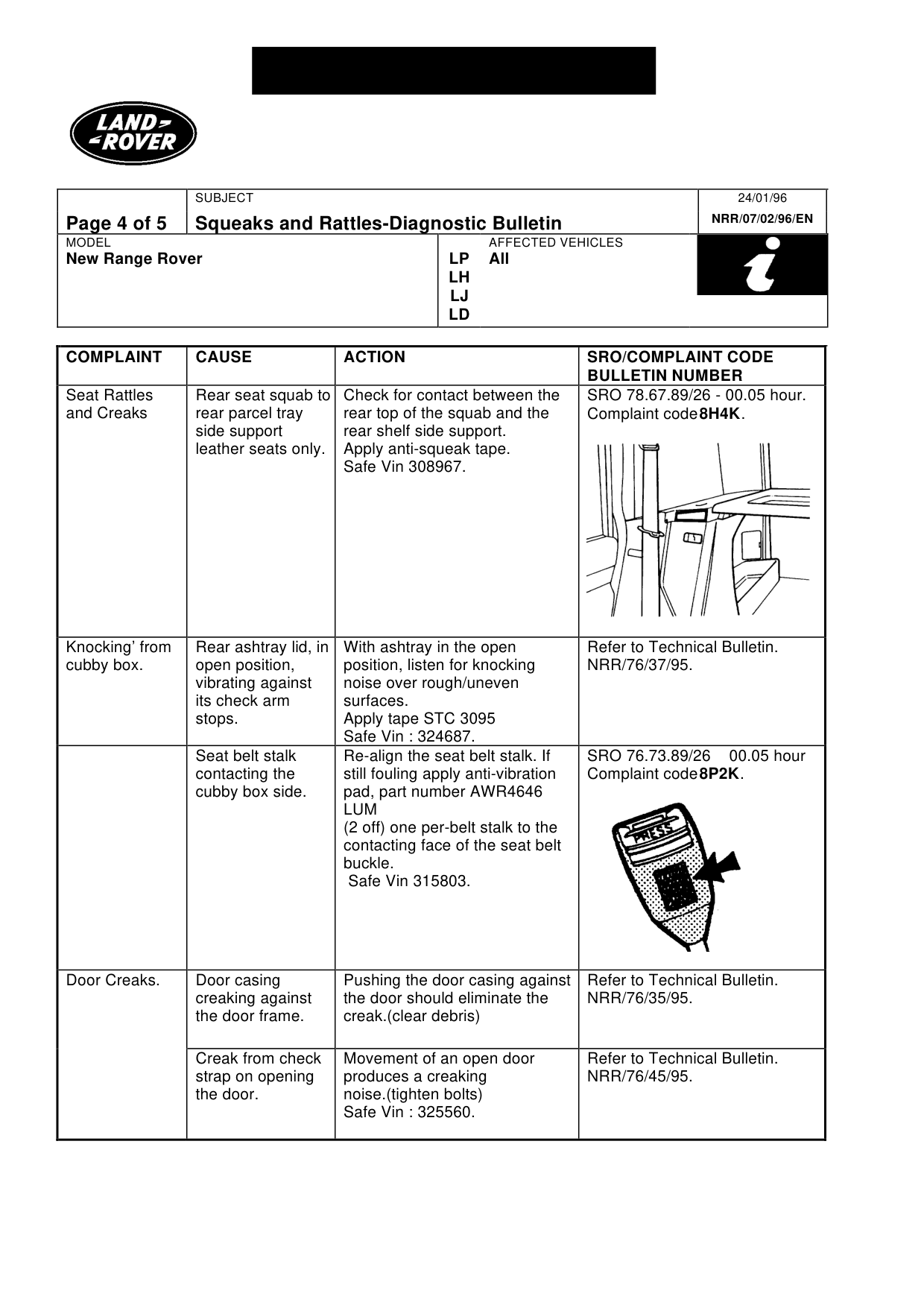

Squeaks and Rattles-Diagnostic Bulletin

MODEL

New Range Rover

COMPLAINT

CAUSE ACTION

Seat Rattles Rear seat squab to Check for contact between the and Creaks rear parcel tray rear top of the squab and the side support rear shelf side support. leather seats only. Apply anti-squeak tape. Safe Vin 308967.

With ashtray in the open Knocking’ from Rear ashtray lid, in position, listen for knocking cubby box. open position, noise over rough/uneven vibrating against surfaces. its check arm Apply tape STC 3095 stops. Safe Vin : 324687. Re-align the seat belt stalk. If Seat belt stalk still fouling apply anti-vibration contacting the cubby box side. pad, part number AWR4646 LUM (2 off) one per-belt stalk to the contacting face of the seat belt buckle. Safe Vin 315803.

Door Creaks. Door casing Pushing the door casing against creaking against the door should eliminate the the door frame. creak.(clear debris)

Creak from check Movement of an open door strap on opening produces a creaking the door. noise.(tighten bolts) Safe Vin : 325560.

24/01/96 NRR/07/02/96/EN

AFFECTED VEHICLES

LP All LH LJ LD

SRO/COMPLAINT CODE BULLETIN NUMBER SRO 78.67.89/26 - 00.05 hour. Complaint code 8H4K .

Refer to Technical Bulletin. NRR/76/37/95.

SRO 76.73.89/26 00.05 hour Complaint code 8P2K .

Refer to Technical Bulletin. NRR/76/35/95.

Refer to Technical Bulletin. NRR/76/45/95.

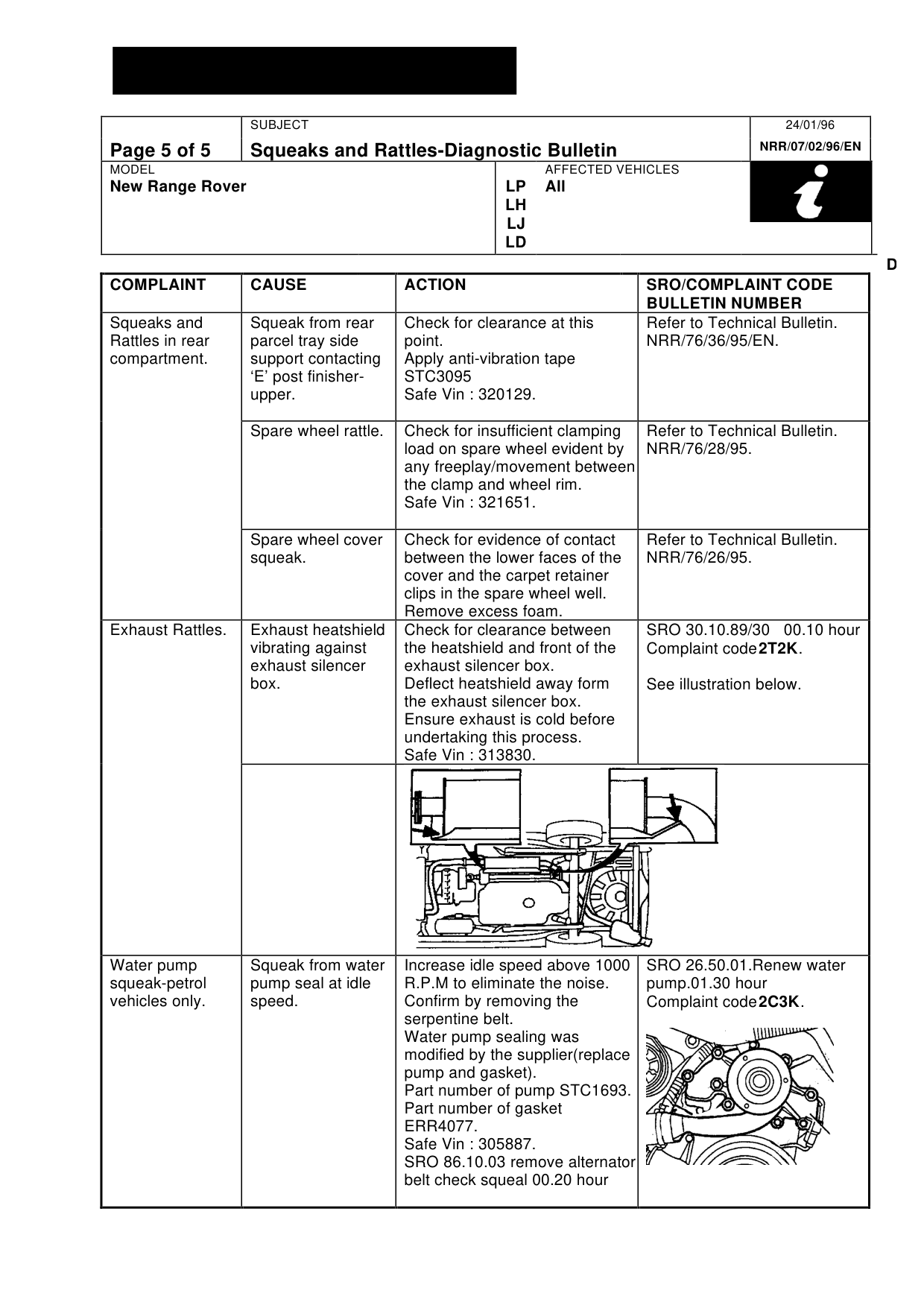

Squeaks and Rattles-Diagnostic Bulletin

MODEL

New Range Rover

COMPLAINT

CAUSE ACTION

Squeaks and Squeak from rear Check for clearance at this Rattles in rear parcel tray side point. compartment. support contacting Apply anti-vibration tape ‘E’ post finisherSTC3095 upper. Safe Vin : 320129.

Spare wheel rattle. Check for insufficient clamping load on spare wheel evident by any freeplay/movement between the clamp and wheel rim. Safe Vin : 321651.

Spare wheel cover Check for evidence of contact squeak. between the lower faces of the cover and the carpet retainer clips in the spare wheel well. Remove excess foam. Check for clearance between Exhaust Rattles. Exhaust heatshield the heatshield and front of the vibrating against exhaust silencer box. exhaust silencer Deflect heatshield away form box. the exhaust silencer box. Ensure exhaust is cold before undertaking this process. Safe Vin : 313830.

Water pump Squeak from water Increase idle speed above 1000 squeak-petrol pump seal at idle R.P.M to eliminate the noise. vehicles only. speed. Confirm by removing the serpentine belt. Water pump sealing was modified by the supplier(replace pump and gasket). Part number of pump STC1693. Part number of gasket ERR4077. Safe Vin : 305887. SRO 86.10.03 remove alternator belt check squeal 00.20 hour

24/01/96 NRR/07/02/96/EN

AFFECTED VEHICLES

LP All LH LJ LD D SRO/COMPLAINT CODE BULLETIN NUMBER Refer to Technical Bulletin. NRR/76/36/95/EN.

Refer to Technical Bulletin. NRR/76/28/95.

Refer to Technical Bulletin. NRR/76/26/95.

SRO 30.10.89/30 00.10 hour Complaint code 2T2K .

See illustration below.

SRO 26.50.01.Renew water pump.01.30 hour Complaint code 2C3K .
