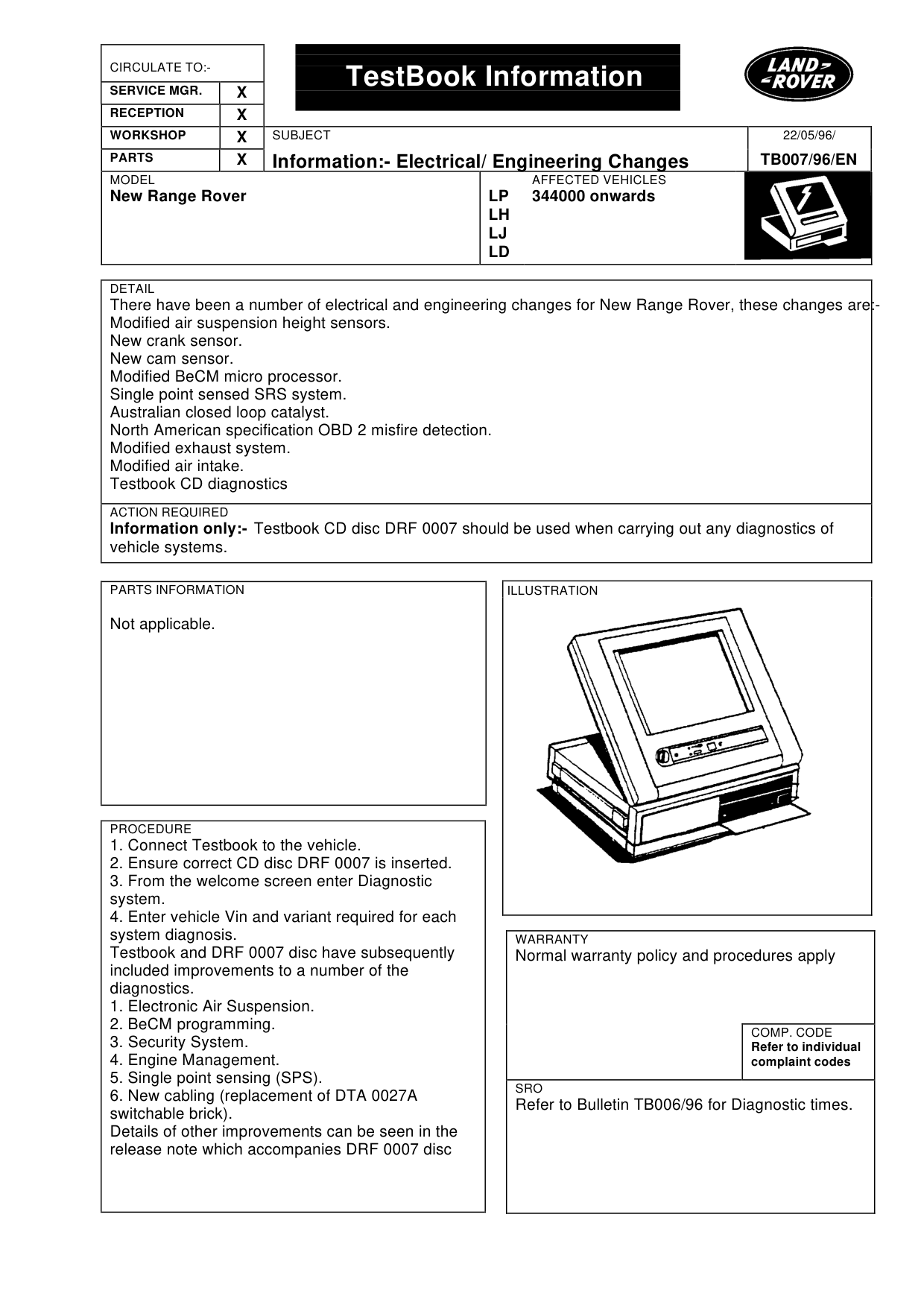

Information electrical/engineering changes

INFORMATION ELECTRICAL/ENGINEERING CHANGES

Model

New Range Rover

Affected vehicles

344000 onwards

Reference

22/05/96

Bulletin text

TestBook Information

Information:- Electrical/ Engineering Changes

MODEL

New Range Rover

DETAIL

There have been a number of electrical and engineering changes for New Range Rover, these changes are:Modified air suspension height sensors. New crank sensor. New cam sensor. Modified BeCM micro processor. Single point sensed SRS system. Australian closed loop catalyst. North American specification OBD 2 misfire detection. Modified exhaust system. Modified air intake. Testbook CD diagnostics

ACTION REQUIRED

Information only:- Testbook CD disc DRF 0007 should be used when carrying out any diagnostics of vehicle systems.

PARTS INFORMATION

Not applicable.

PROCEDURE

1. Connect Testbook to the vehicle. 2. Ensure correct CD disc DRF 0007 is inserted. 3. From the welcome screen enter Diagnostic system. 4. Enter vehicle Vin and variant required for each system diagnosis. Testbook and DRF 0007 disc have subsequently included improvements to a number of the diagnostics. 1. Electronic Air Suspension. 2. BeCM programming. 3. Security System. 4. Engine Management. 5. Single point sensing (SPS). 6. New cabling (replacement of DTA 0027A switchable brick). Details of other improvements can be seen in the release note which accompanies DRF 0007 disc

22/05/96/

TB007/96/EN

AFFECTED VEHICLES

LP 344000 onwards LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

Refer to individual complaint codes

SRO

Refer to Bulletin TB006/96 for Diagnostic times.
